INDICATING SYSTEM – DESCRIPTION AND OPERATION
Annunciator panel
This scheme regards the airplane model embodying MOD2002-50 – VFR Night
The annunciator panel as follows:

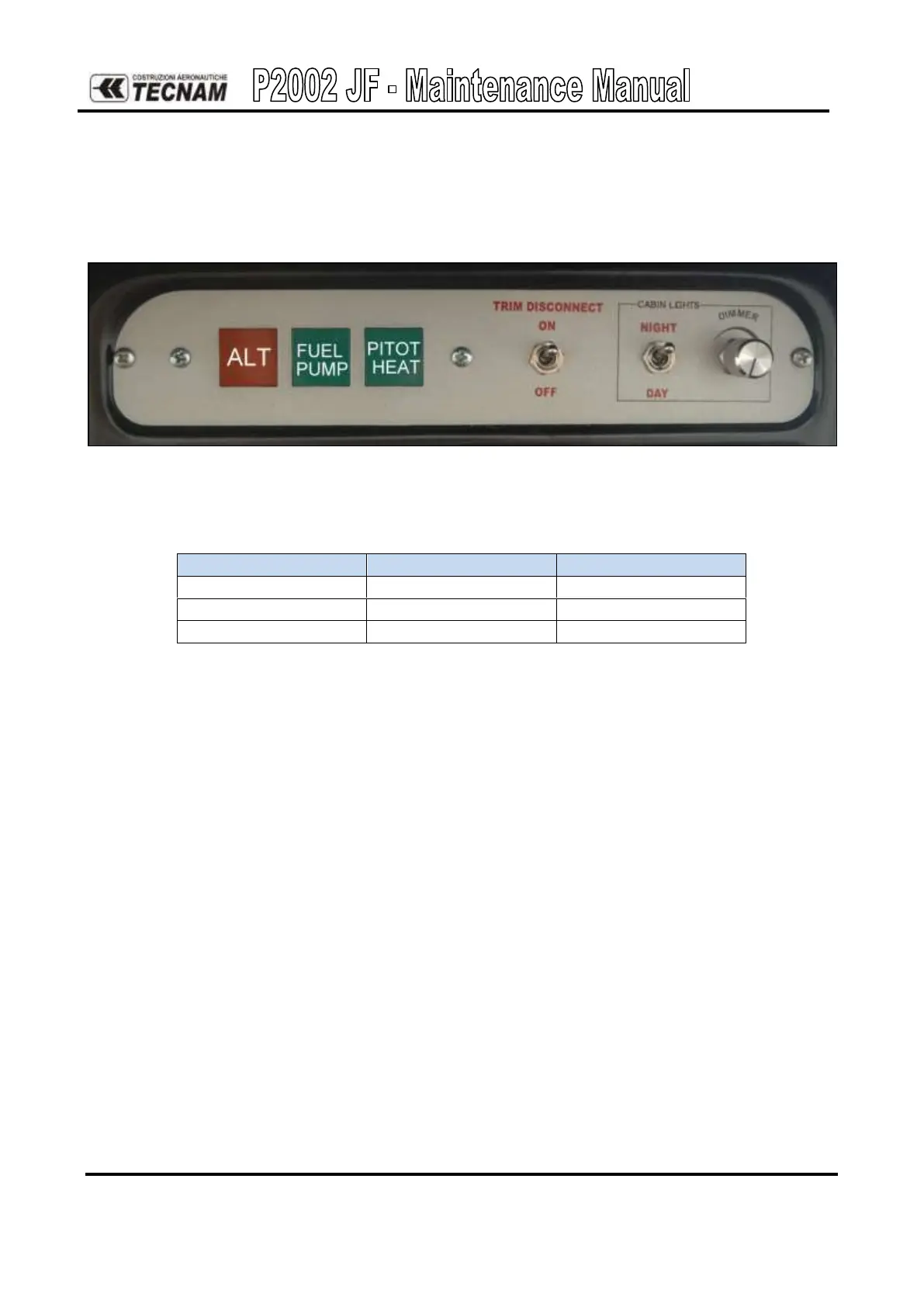

Figure 5. – Annunciator panel
For clearance, the color of the lights is here reported:
Light
Red - warning
Green - advisory
ALT
X
FUEL PUMP
X
PITOT HEAT
X
Annunciator panel (see fig. 2) consisting of three lights, namely:
 ALT caution light: it indicates that the alternator is OFF or not working properly
 PITOT HEAT advisory light: it indicates that Pitot heating system is ON
 FUEL PUMP advisory light: it indicates that the electrical fuel pump is ON
