BRAKE SYSTEM SERVICING PRACTICES
The brake system operation with low oil level could affect the brakes’
performances and could cause permanent damage.
Make certain that hydraulic fluids and fluid containers are protected from
contamination of any kind. Dirt particles may cause hydraulic units to become
inoperative, cause seal damage, etc. If there is any question regarding the
cleanliness of the fluid, do not use it. Containers for hydraulic fluid must never
be left open to air longer than necessary.
Oil level check procedure
1. Remove the baggage compartment panel (Rear seats, baggage compartment, refer to
Figure 13);
2. Check oil reservoir for oil level (must be between the two marks);
3. If necessary, remove reservoir filler cap and replenish oil ;
4. Refit reservoir filler cap;
5. Refit the inspection cap.

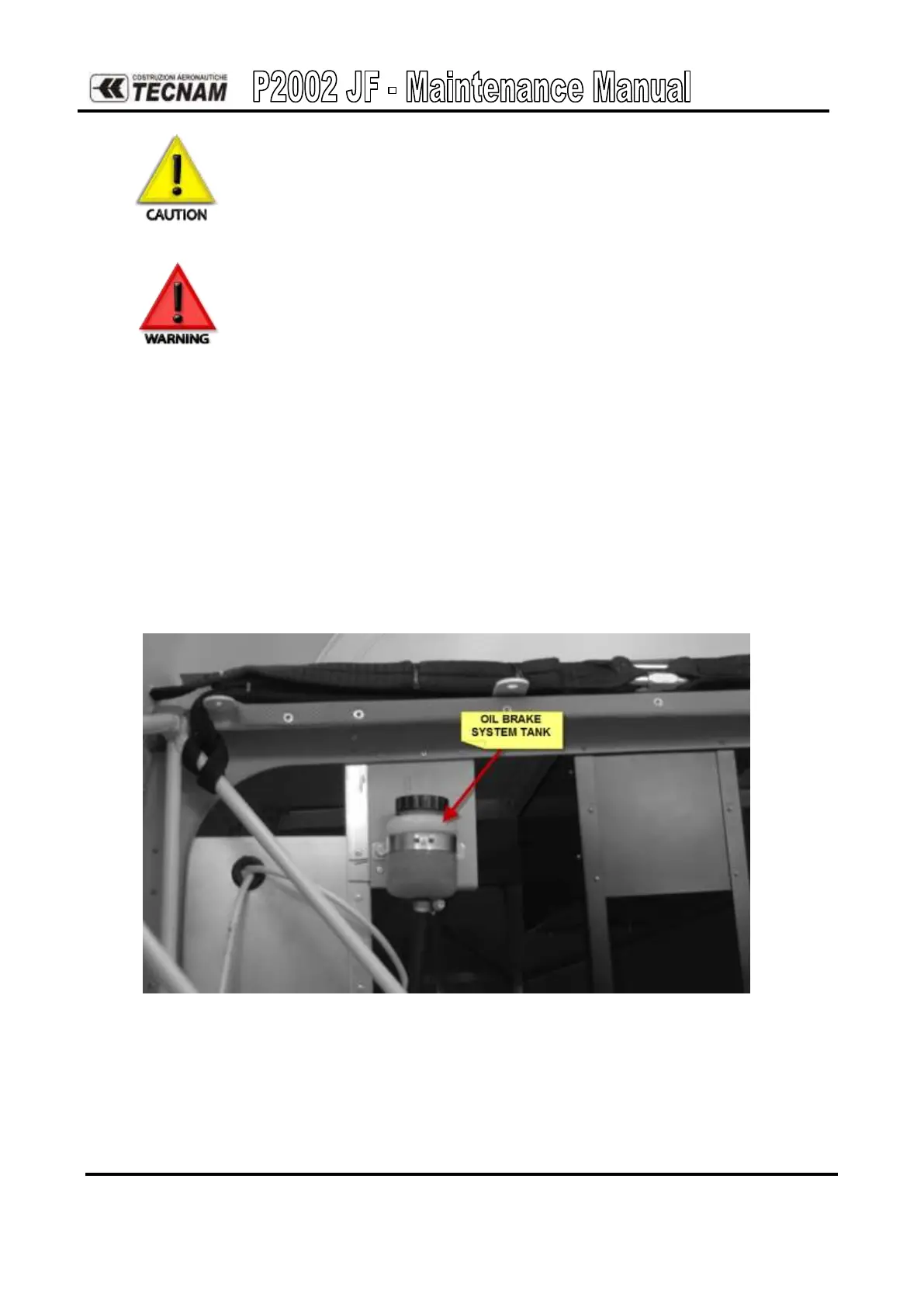

Figure 13. – Oil brake system tank
