Page 201 2
nd
Edition – Rev 0
O8-10
LEVELING
Longitudinal leveling
Procedure
To check the longitudinal leveling act as follows:
Slide off one of the two seat to get the access to the two seat track’s
supporting trusses.
Place longitudinally a spirit or water level over the two supporting trusses
using, if necessary, a straight piece of wood as indicated into figure 1.
Adjust the aircraft’s tilt by regulating tire pressure.

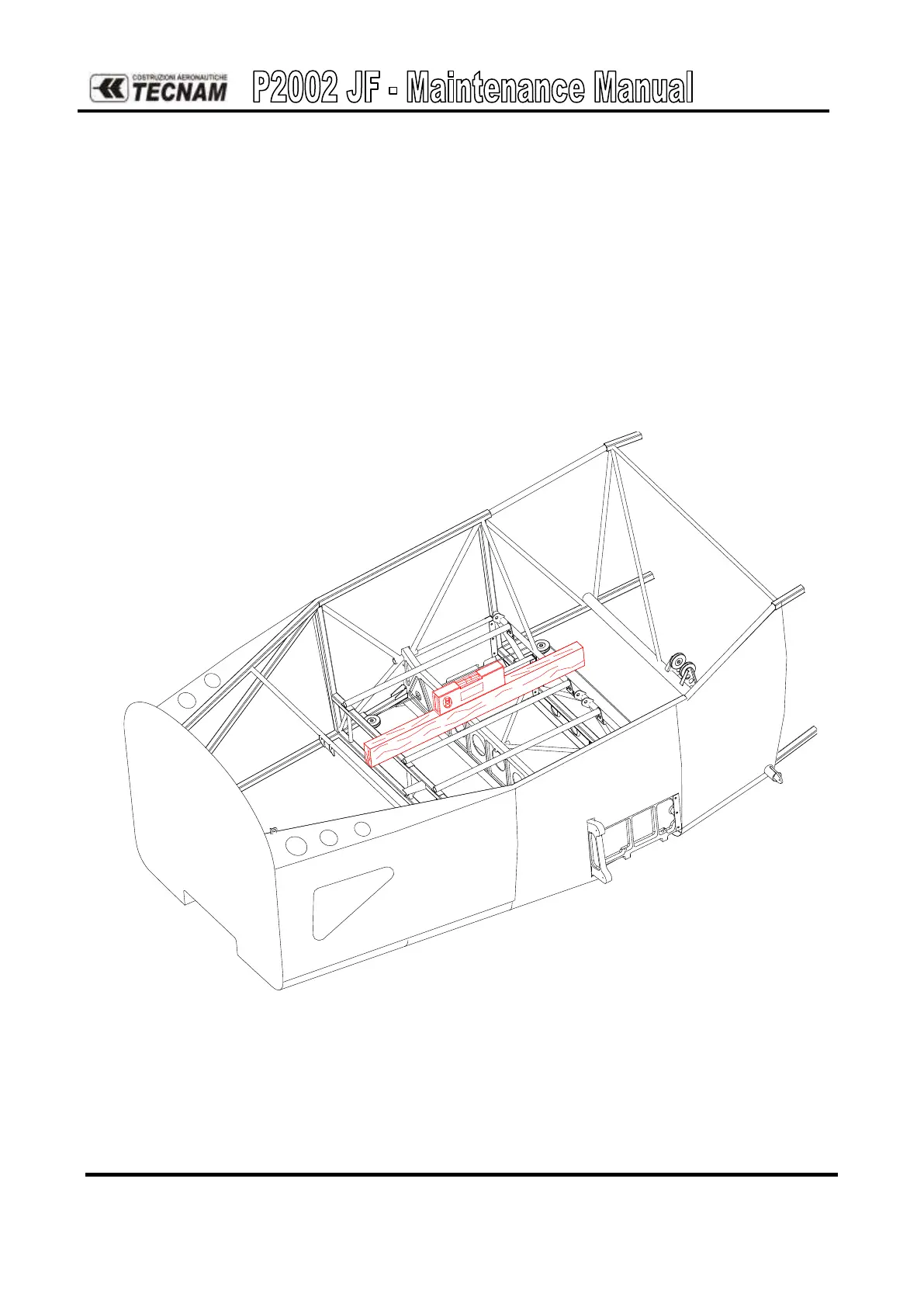

Figure 1: Longitudinal leveling
