Tecnam P2002 JF - Installation of Nose Gear Fairings; Removal of Nose Gear Fairing

Page 201 2
nd
Edition – Rev 0
32-40
NOSE LANDING GEAR – MAINTENANCE PRACTICES
1. REMOVAL OF NOSE GEAR FAIRING
Procedure
Step
no.
NLG removal
Task description
Additional info &
References
1.
Loosen the screws (2 and 3)
Refer to Figure 21.
2.
Remove the two fairings (5 and 6)
Refer to Figure 21.
3.
Remove the rear upper fairings (4) loosen the screws (1)
Refer to Figure 21.
4.
Unscrew nuts (7) and remove washer from wheel axle
Refer to Figure 21.
5.
Unscrew bolt (8) in gear lever housing
Refer to Figure 21.
6.
Remove the rear fairing
Refer to Figure 21.
2. INSTALLATION OF NOSE GEAR FAIRINGS
Proceed the previous procedure in a reverse way to reinstall. An over tightening can cause the
damage of screws and fiberglass fairing.

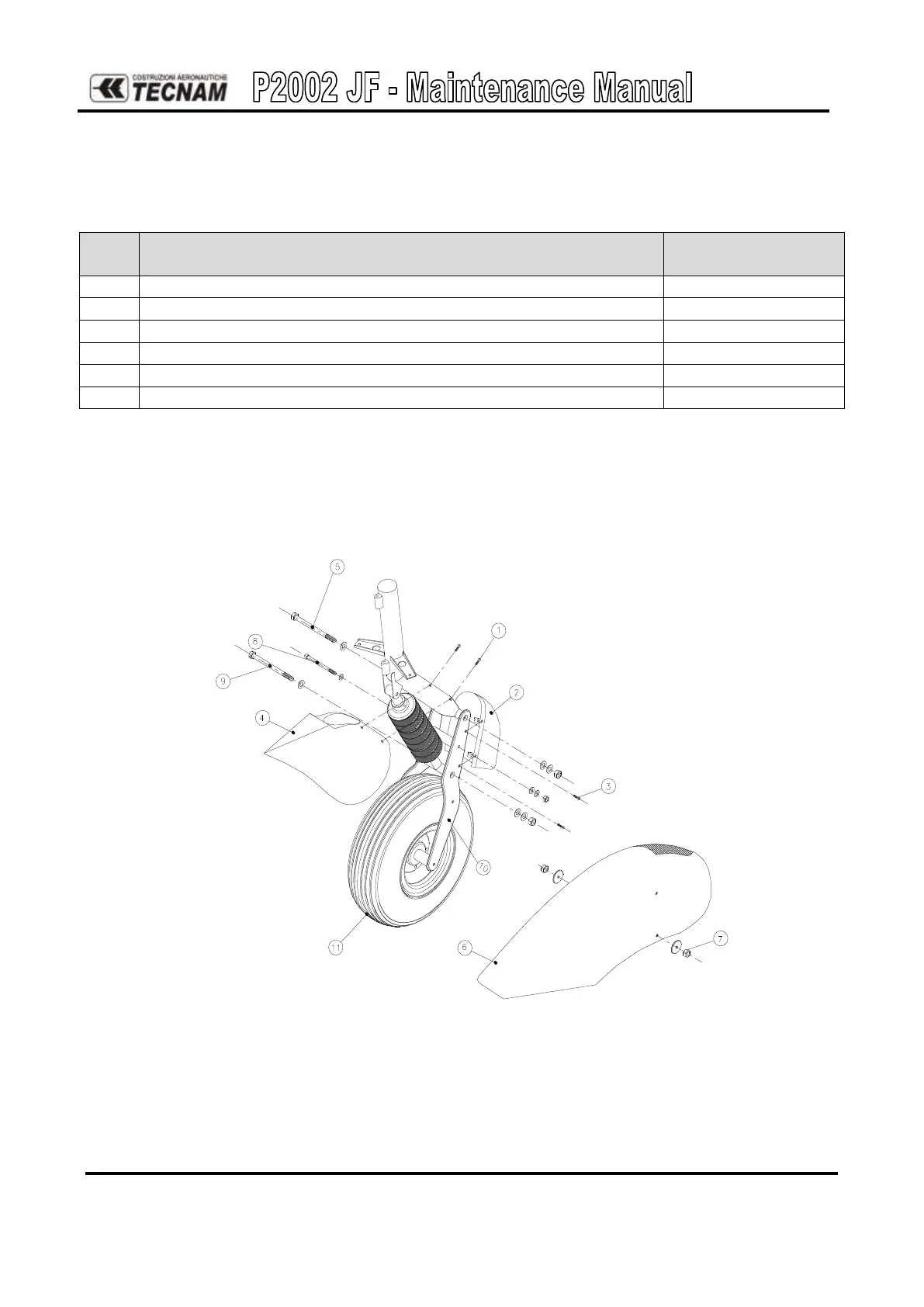

Figure 21. – Removal/installation of NLG fairings
