RUDDER –MAINTENANCE PRACTICES

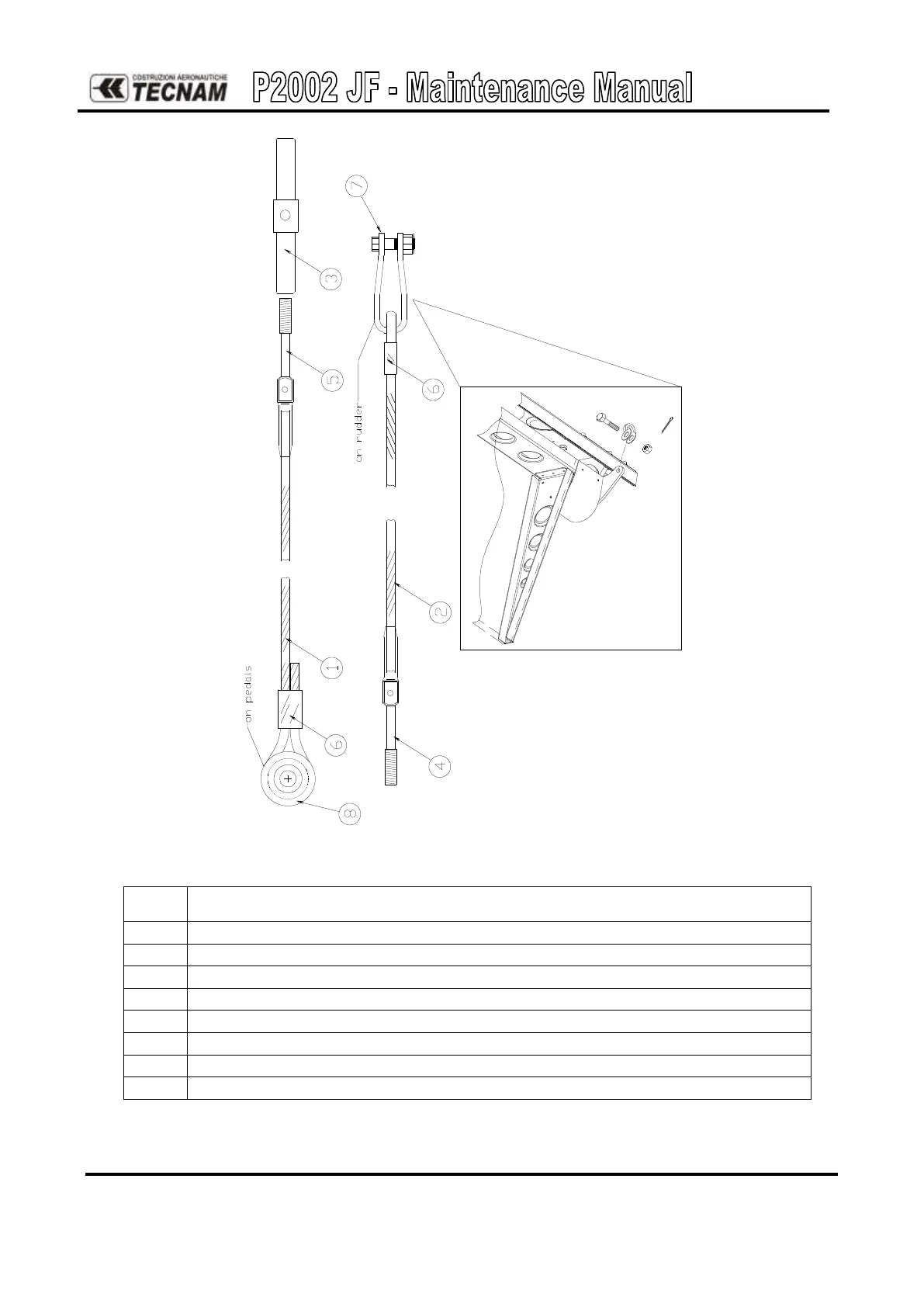

Figure 31. - rudder control cable joints
No.
Description
1
Carbon steel cable (Front)
2
Carbon steel cable (Rear)
3
Turnbuckles
4
Turnbuckles element (RH)
5
Turnbuckles element (LH)
6
Crimping ring
7
Support for cable fixing plate on rudder
8
Cable terminal on pedals
