Tecnam P2002 JF - Brake Assembly (P;N 30-9)

Page 225 2
nd
Edition – Rev 0
32-10
MLG and BRAKES – MAINTENANCE PRACTICES
Step no.
Task description
Additional info &
References
6.
Inspect pressure plate (4) and back plate (6)
for excessive corrosion, visible damage, or
excessive warping. Pressure plate should not
be used if warped in excess of 0.010 inch
(0.254 mm) flatness, by using draw flattening
or straightening techniques.
Refer to Figure 13.
7.
Align new factory authorized replacement
lining (7) segments on pressure plate/back
plates and install rivets of corresponding part
number using appropriate riveting tools
8.
Check to be sure lining is tight and
movement free with no distortion of parts.
9.
Slide pressure plate (4) with new lining over
anchor bolts
Refer to Figure 13.
10.
Install brake assembly on the wheel
Apply procedure
described within this
Chapter

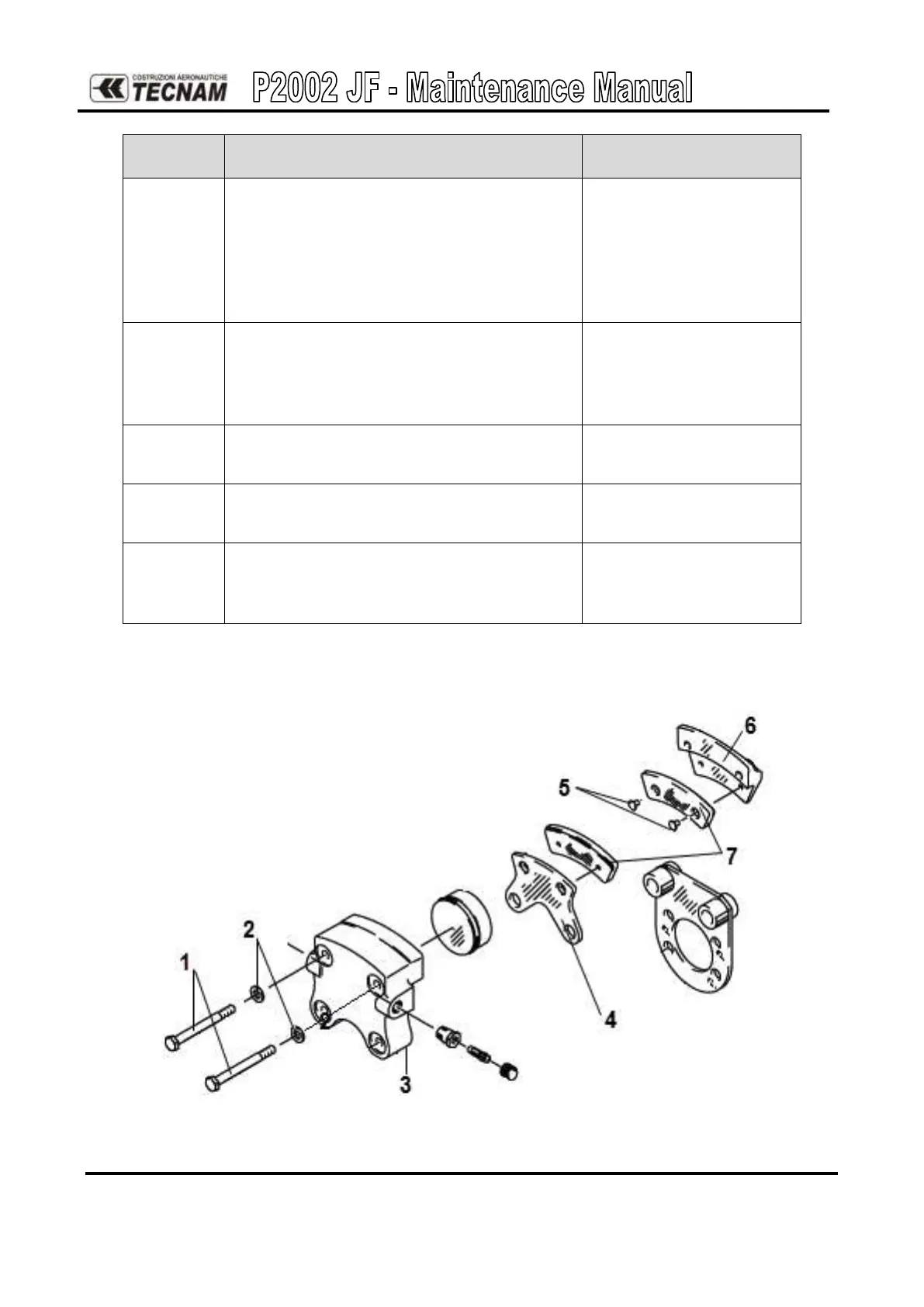

Figure 14B. - Brake Assembly (P/N 30-9)
