Tecnam P2002 JF - Hot Air Knob in off Position; Hot Air Knob in on Position; Hot Air Valve in Close Position; Hot Air Valve in Open Position

Page 203 2
nd
Edition – Rev 0
21-10
CABIN HEATING – MAINTENANCE PRACTICE

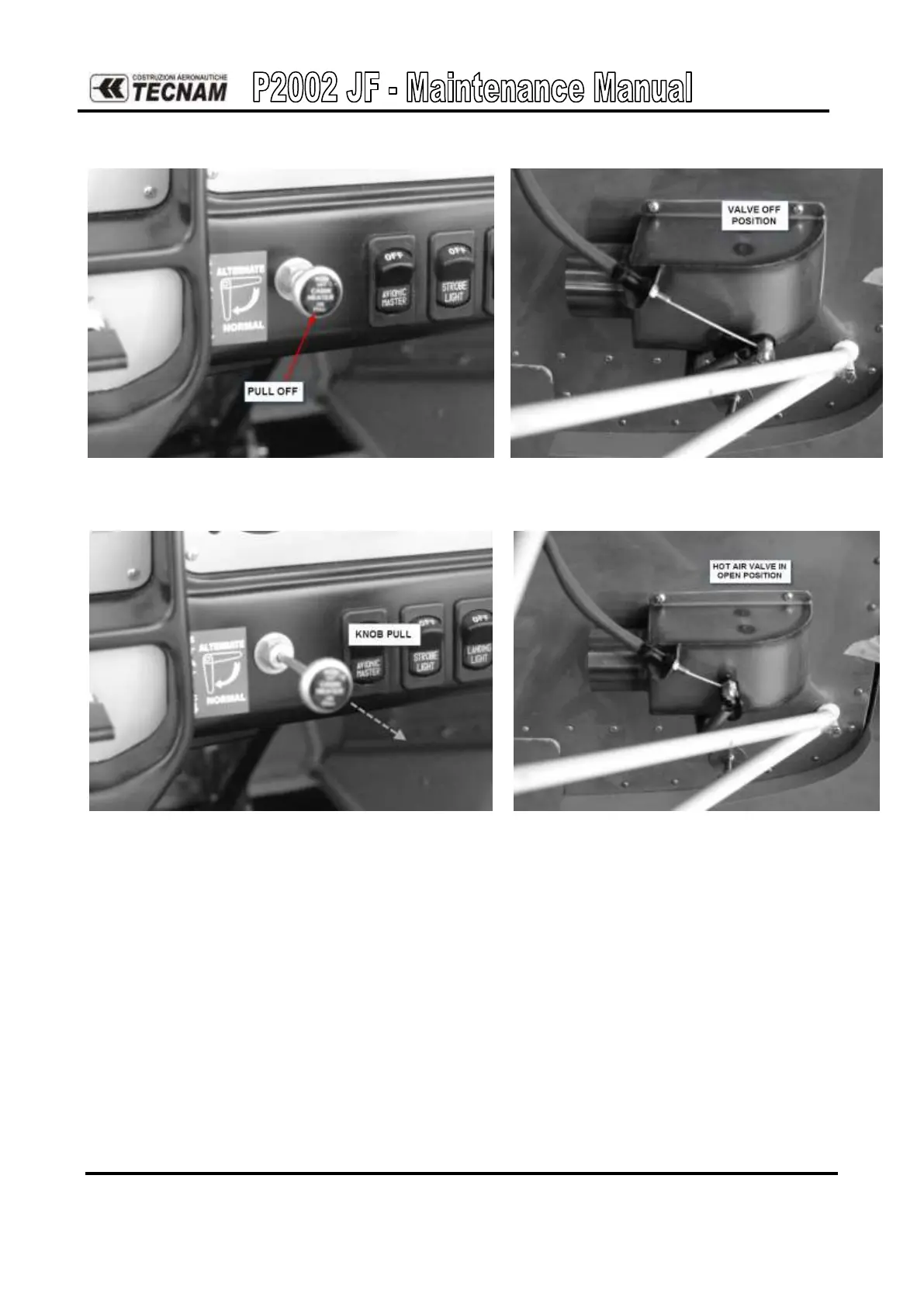

Figure 9 - Hot air knob in off position
Figure 10 - Hot air valve in close position
Figure 11 - Hot air knob in on position
Figure 12 - Hot air valve in open position
