SUPPLEMENT S2
Chapter 27 – Flight Control
FLAP CONTROL SYSTEM
The standard configuration incorporates a control knob on the instrument panel to
command the flap movement (NORMAL mode).
The changes introduce an additional control switch on the grip (Figure A-1); It
operates in accordance with the following movement and actuation: up for flap
movement up and down for flap movement down.
The mode of operation (STANDARD or HAND CONTROL) is selected through a
selector switch located on the instrument panel.
The electrical scheme is provided in Figure F-1.

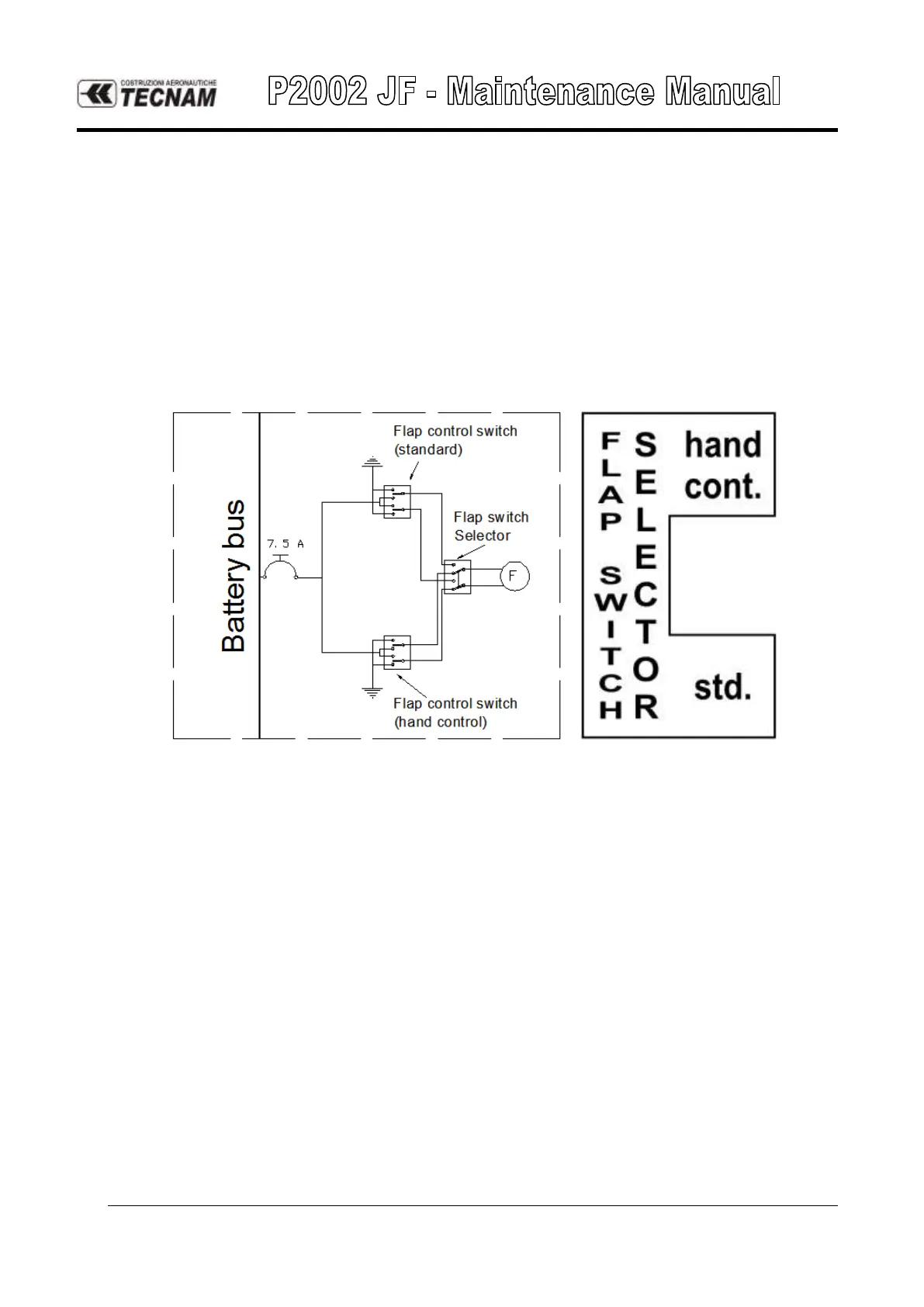

FIGURE 27-3 FLAP SYSTEM ELECTRIC SCHEME & PLACARD
