SUPPLEMENT SG-3
CHAPTER 31 - INDICATIONG SYSTEM
System configuration
The G500 system is an integrated display system that presents primary flight in-
strumentation, navigation, and a moving map to the pilot through a large format
display.
In normal operating mode, the Primary Flight Display (PFD) presents graphical
flight instrumentation (attitude, heading, airspeed, altitude, vertical speed, HSI),
replacing the traditional flight instrument cluster.
The Multi-Function Display (MFD) displays a full-color moving map with navi-
gation information, as well as supplemental data.

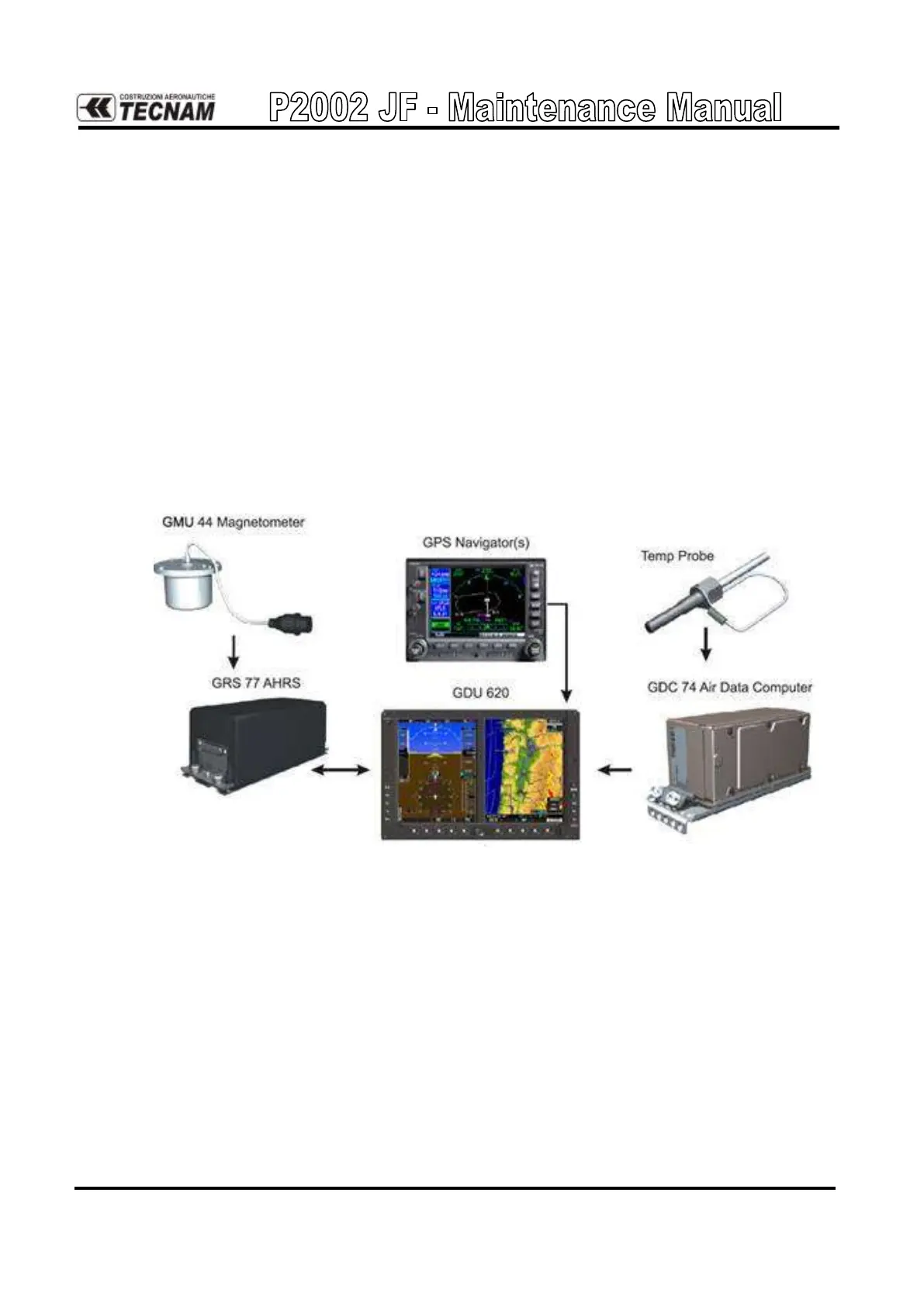

The below schematic shows a block diagram of G500 suite describing the main
system interconnections.
Garmin G500 Integrated Flight Deck System block diagram
