Tecnam P2002 JF - Page 1172

Page 204
SUPPLEMENT S2
WINGS- POST-SHIPMENT REASSEMBLY INSTRUCTION
1
st
Edition - Rev
3. AILERONS CONTROL ASSEMBLY
Step
no.
Aileron control assembly
Task description
Additional info &
References
1.
Remove seats
2.
Remove cabin floor panels
Refer to Figure 57.3
3.
Connect ailerons control applying bolts(4)
Use 2xbolts, 2xspacers,
2xaluminum washers and
2xnuts,
Refer to Figure 57.4. and
57.5.
4.
Connect the small bar (3) to the pushrods (5)
Refer to Figure 57.4. and
57.5.
WARNING
Report a slippage marks at the end of installation

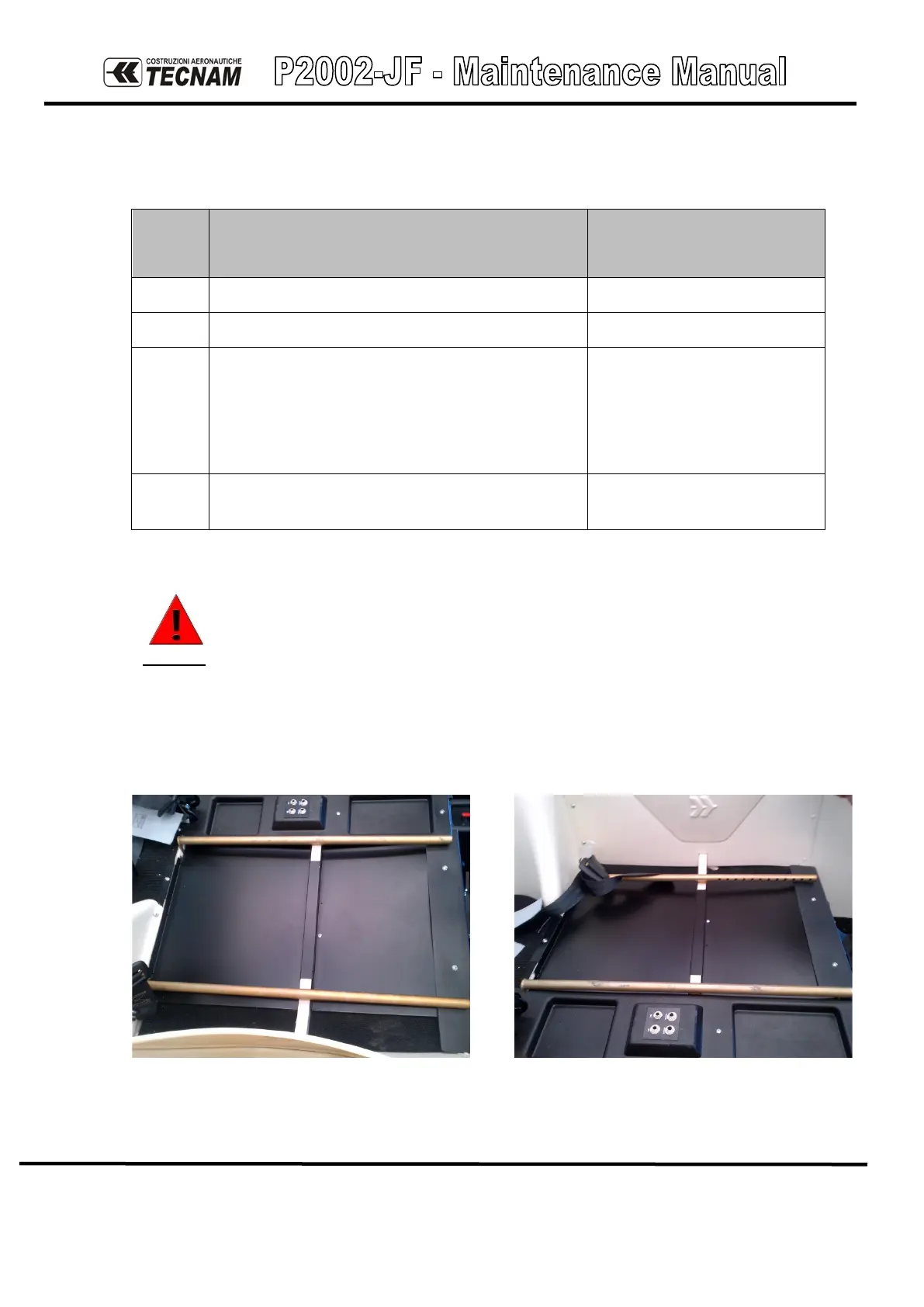

Figure 57.3. – Floor cabin panels
