SUPPLEMENT S2
WINGS- POST-SHIPMENT REASSEMBLY INSTRUCTION
1
st
Edition - Rev
4. FLAPS CONTROL ASSEMBLY
Step
no.
Flaps control assembly
Task description
Additional info &
References
1.
Connect flaps control applying roller bearings
(6) that link push-pull rod (5) to flap control
plate
Use:2xbolts, 2xaluminum
washers, 2xnuts
Refer to Figure 57.6.
2.
Repeat for other side
WARNING
Report a slippage marks at the end of installation

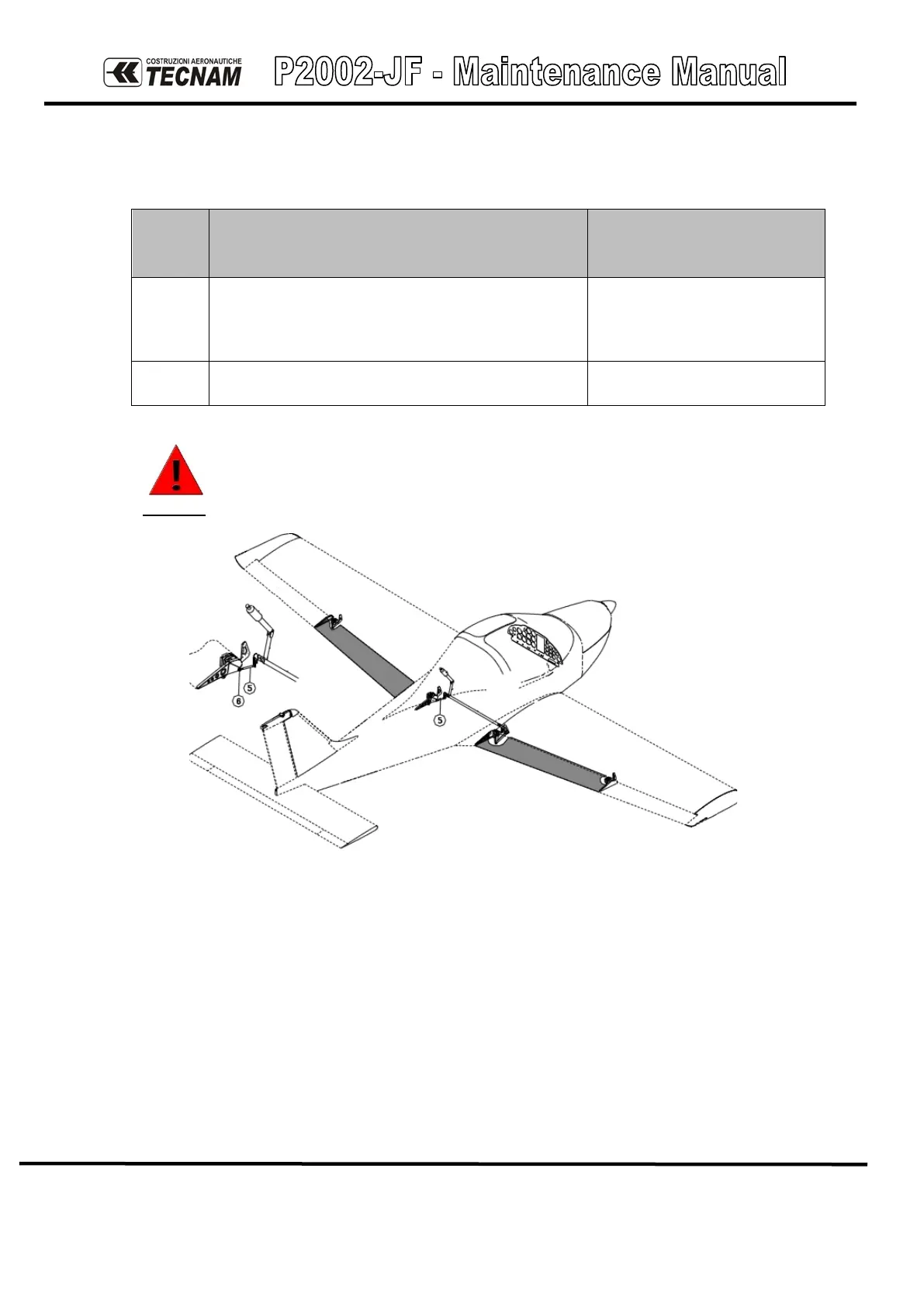

Figure 57.6. – Flaps control assembling
