Tecnam P2002 JF - Page 1233

2
nd
Edition - Rev 0
SUPPLEMENT SG-1
CHAPTER 34 - NAVIGATION
Page 2

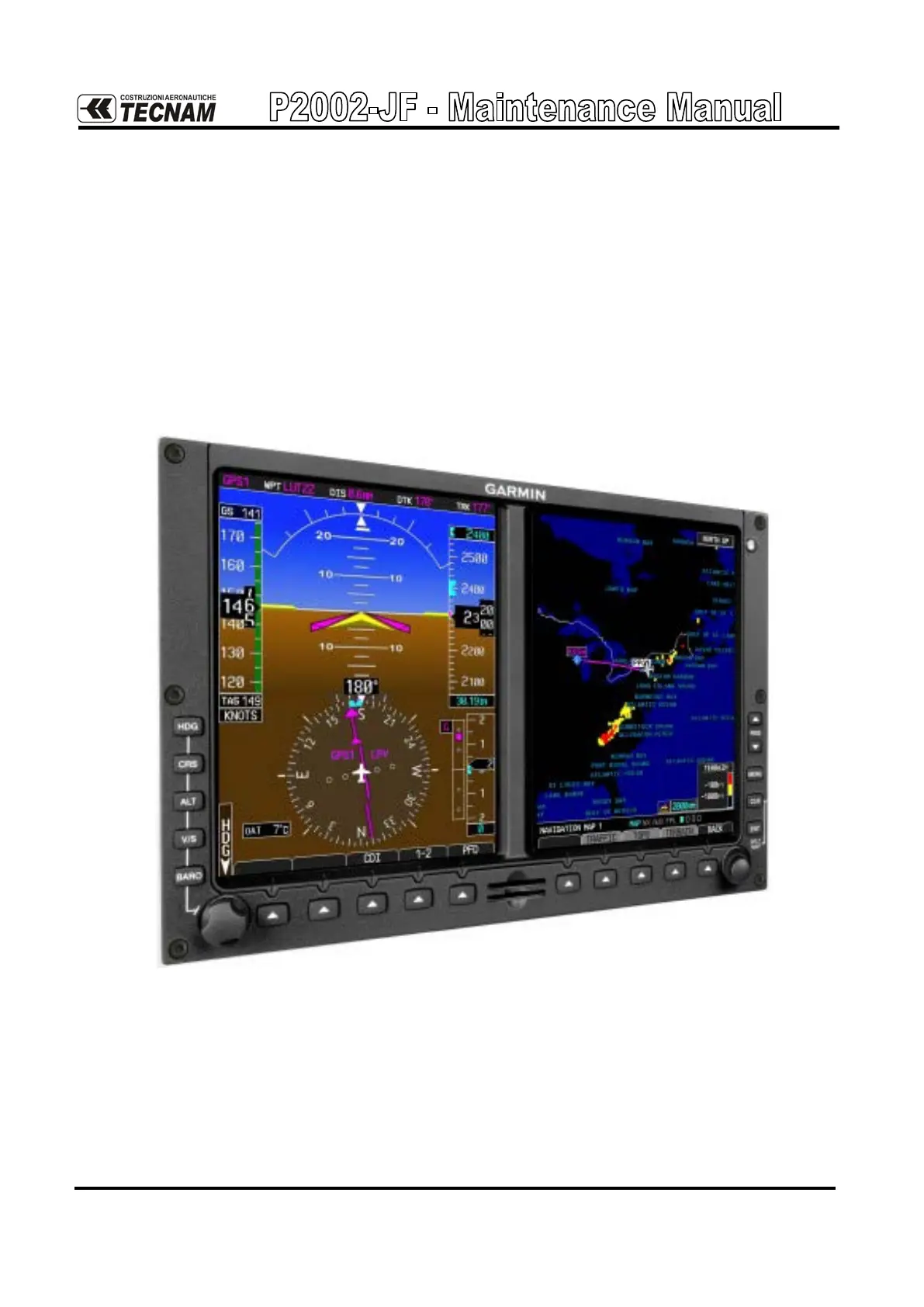

GDU 620
The GDU 620 has dual VGA (640 x 480 pixels) 6.5-inch LCD displays. For the GDU
620, the left side of the GDU is the primary flight display (PFD) and the right side is the
multi-function display (MFD). For the GDU 620 RH, the right side of the GDU is the
primary flight display (PFD) and the left side is the multi-function display (MFD). The
PFD shows primary flight information. The MFD shows navigation and flight plan in-
formation, traffic, weather and terrain. An external configuration module is used, so no
configuration is required if the GDU 620 is replaced for any reason.
