71-10

ENGINE COWLINGS – DESCRIPTION AND OPERATION

Ram air intake

(NACA)

Hinges

Pin

Cam Lock

Alluminium

FG

Alluminium

Oil radiator

air intake

Water radiator

air intake

Cabin heat

air intake

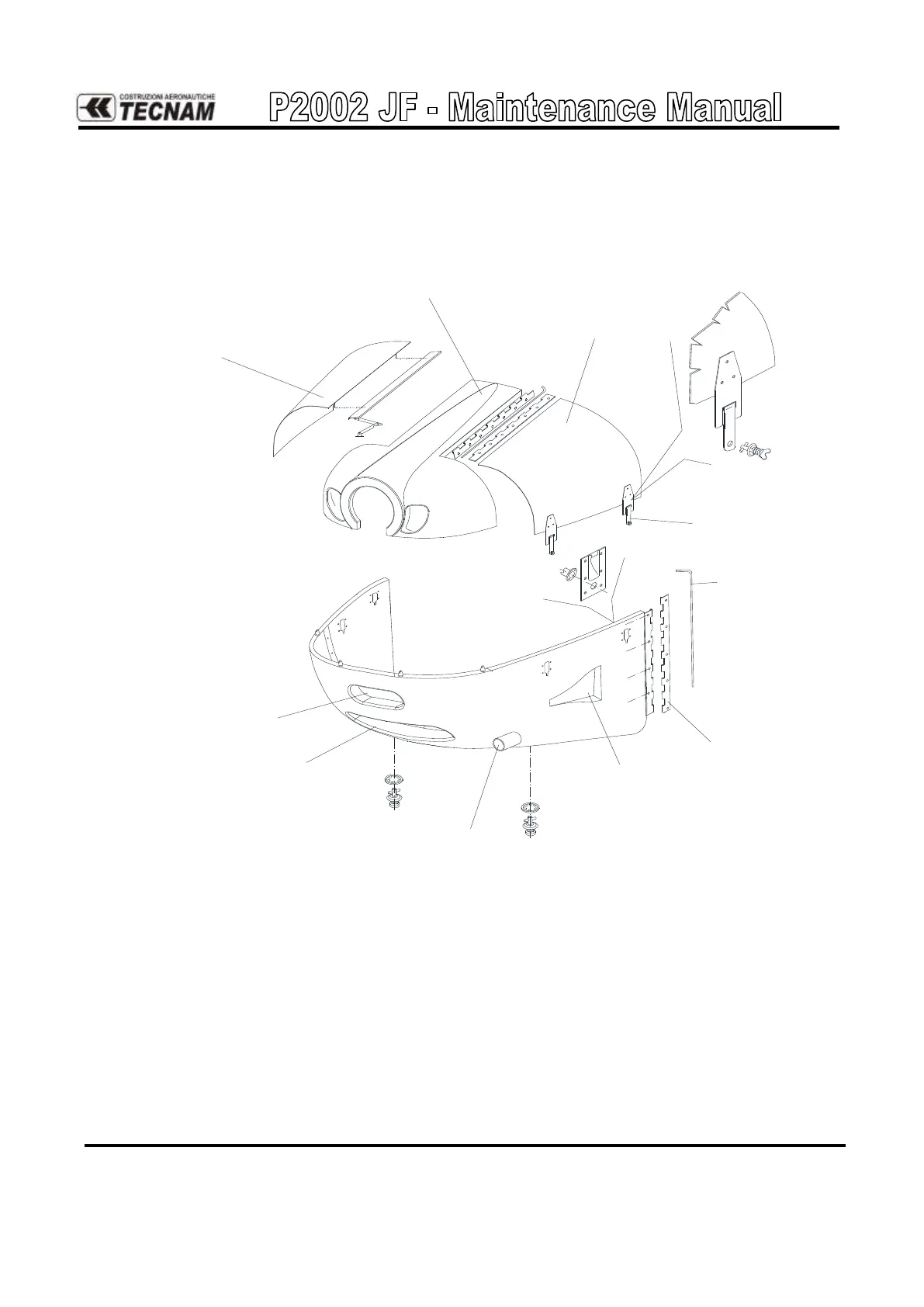

Figure 1. – Engine cowling
