Tecnam P2002 JF - Page 932

Page 202
SUPPLEMENT S4
WINGS - POST SHIPMENT ASSEMBLY INSTRUCTION
2
nd
Edition - Rev 0
Step
no.
Wing installation
Task description
Additional info &
References
1.
Remove the cover and the cap from the fuel
lines (LH and RH side of fuselage)
2.
Connect the LH wing on fuselage and place the
bolts in their original location
Use 2xbolts, 1xshim, 4 alu-
minium washers,2x nuts
Refer to Figures 57.1. and
57.2.
3.
Connect the RH wing on fuselage and place the
bolts in their original location
Use 2xbolts, 1xshim, 4 alu-
minium washers,2x nuts
Refer to Figure 57.1. and
57.2.
Torque value front bolts (NAS 1308-28D): 100 Nm
Torque value rear bolts (M8): 24.6 Nm

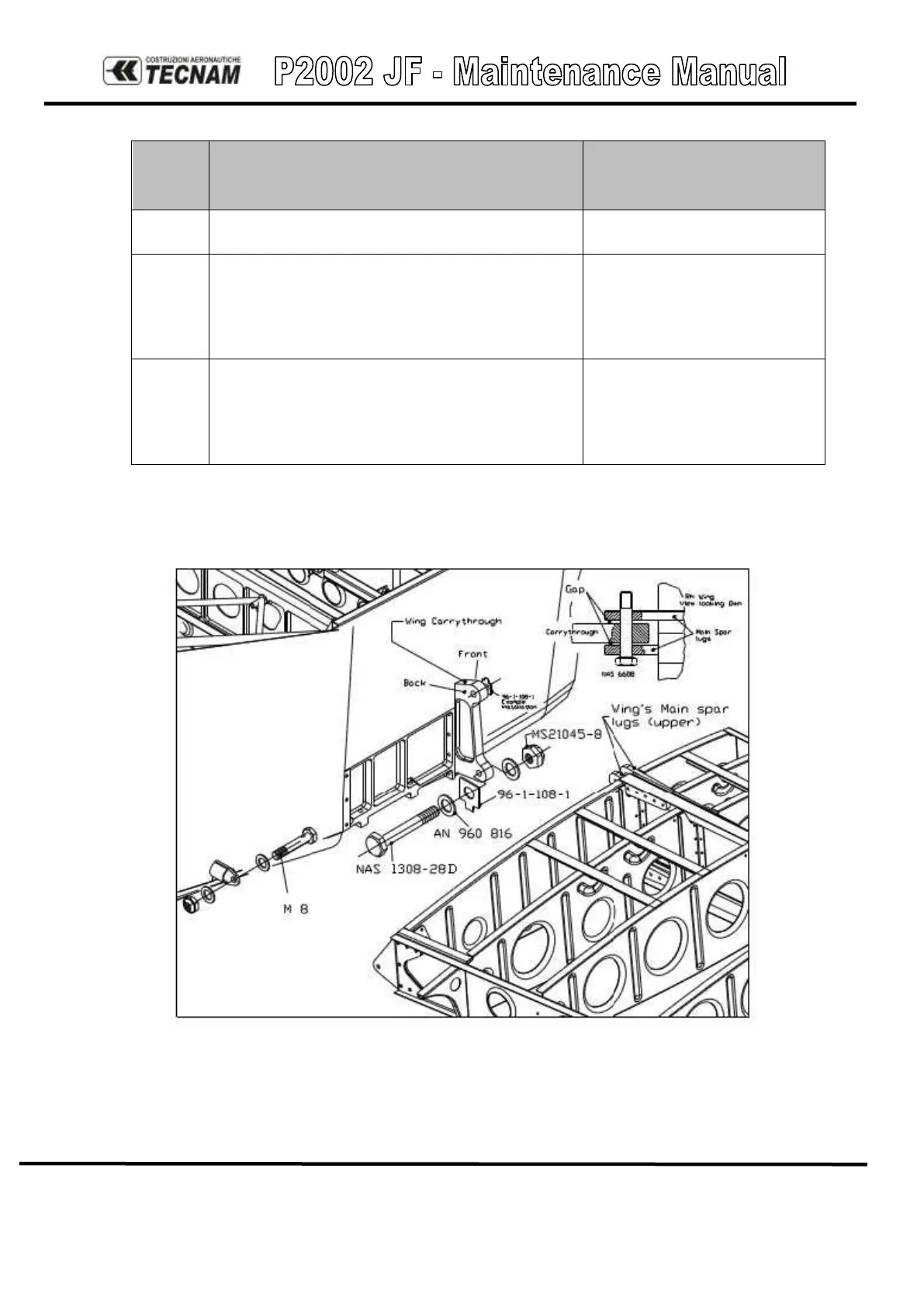

Figure 57.1. – Wing attachment
