Tecnam P2002 JF - Page 934

Page 204
SUPPLEMENT S4
WINGS - POST SHIPMENT ASSEMBLY INSTRUCTION
2
nd
Edition - Rev 0
3. AILERONS CONTROL ASSEMBLY
Step
no.
Aileron control assembly
Task description
Additional info &
References
1.
Remove seats
2.
Remove cabin floor panels
Refer to Figure 57.3
3.
Connect ailerons control applying bolts(4)
Use 2xbolts, 2xspacers,
2xaluminum washers and
2xnuts,
Refer to Figure 57.4. and
57.5.
4.
Connect the small bar (3) to the pushrods (5)
Refer to Figure 57.4. and
57.5.
WARNING
Report a slippage marks at the end of installation

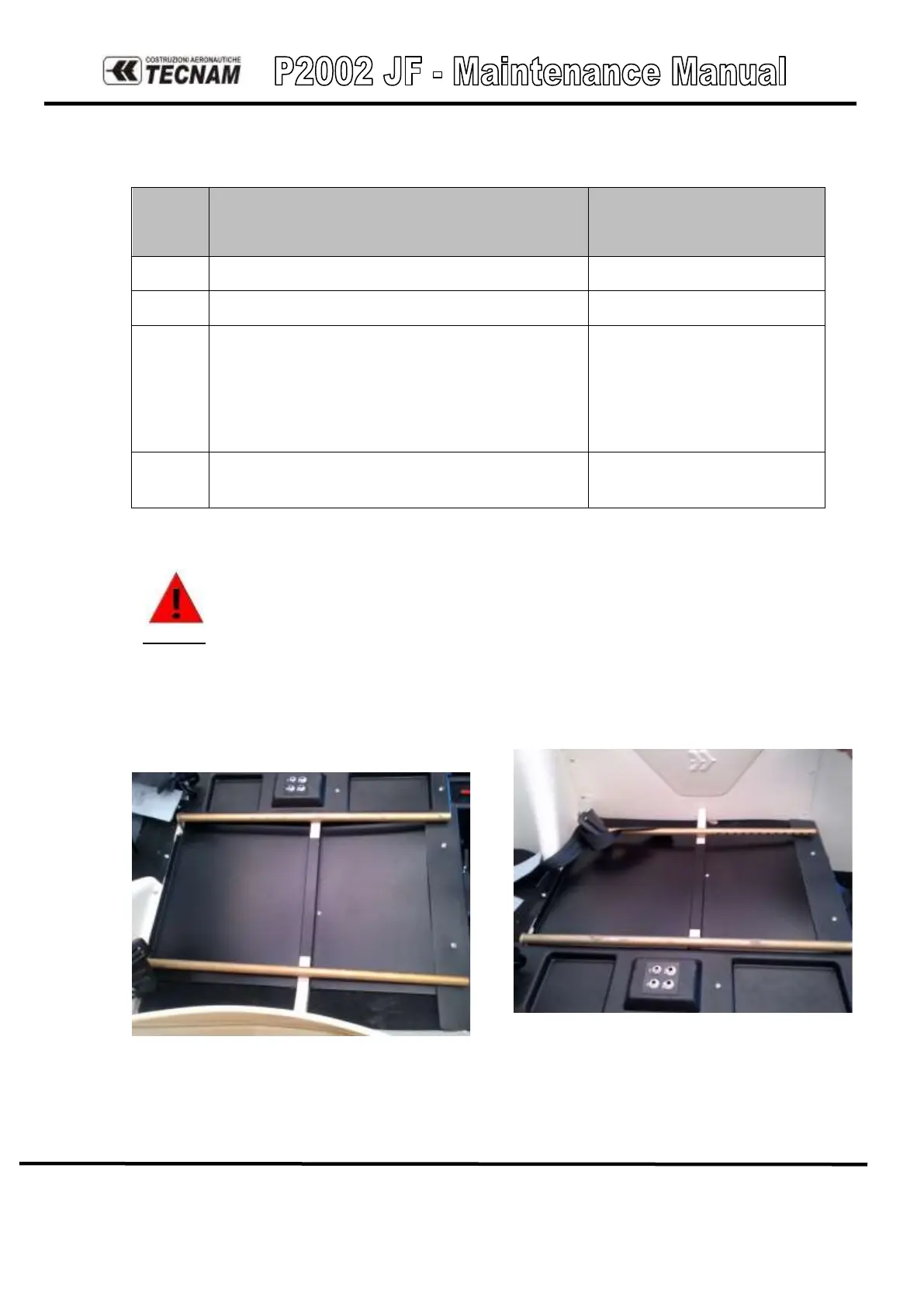

Figure 57.3 – Floor cabin panels
