TEEJET 5000 OPERATORS MANUAL FERTILISER DISTRIBUTOR, RAUCH AXERA H
4.117
STEP%: Step dose rate.
NOTE: Only active in automatic drift.

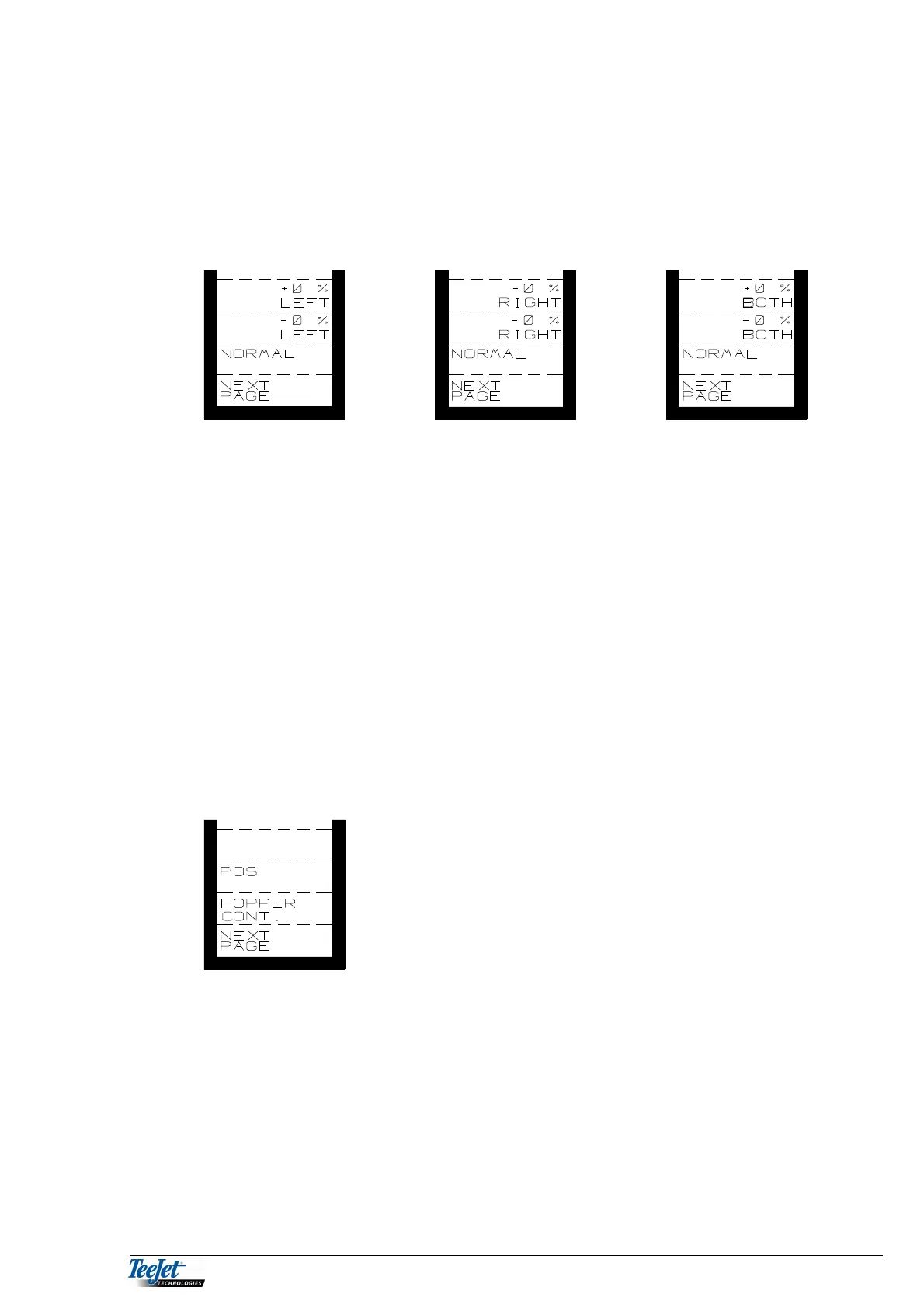

The application rate can be increased or decreased by an
encoded percentile amount. The rate can be altered for both sides
or the left-hand side or the right-hand side by pressing the “NEXT
PAGE” key, see the following pictures:
When used, the percentile increase or reduction flashes in the lower part of the
display.
NORMAL: Pressing the “NORMAL” key returns the application rate to
normal, regardless of how many steps the rate has been
increased or decreased by.
NOTE: The step dose rate screen is left by pressing the return
key.
AUTO/MAN: Pressing this key changes between automatic and manual
application control. During manual operation “MAN” flashes at the
bottom of the display.
Pressing the “NEXT PAGE” key displays the next available functions.
POS.: Actuator position. Reference figure for
the gate position.
HOPPER
CONT.: Amount remaining in tank.
POS.: Pressing this key displays the gate position, changes between the
left- and right-hand side.
HOPPER
CONT.: The calculated fertiliser amount remaining in the tank.
Presupposes encodement of the amount filled into the hopper
before work commences.
