TEEJET 5000 OPERATORS MANUAL BALER
6.7

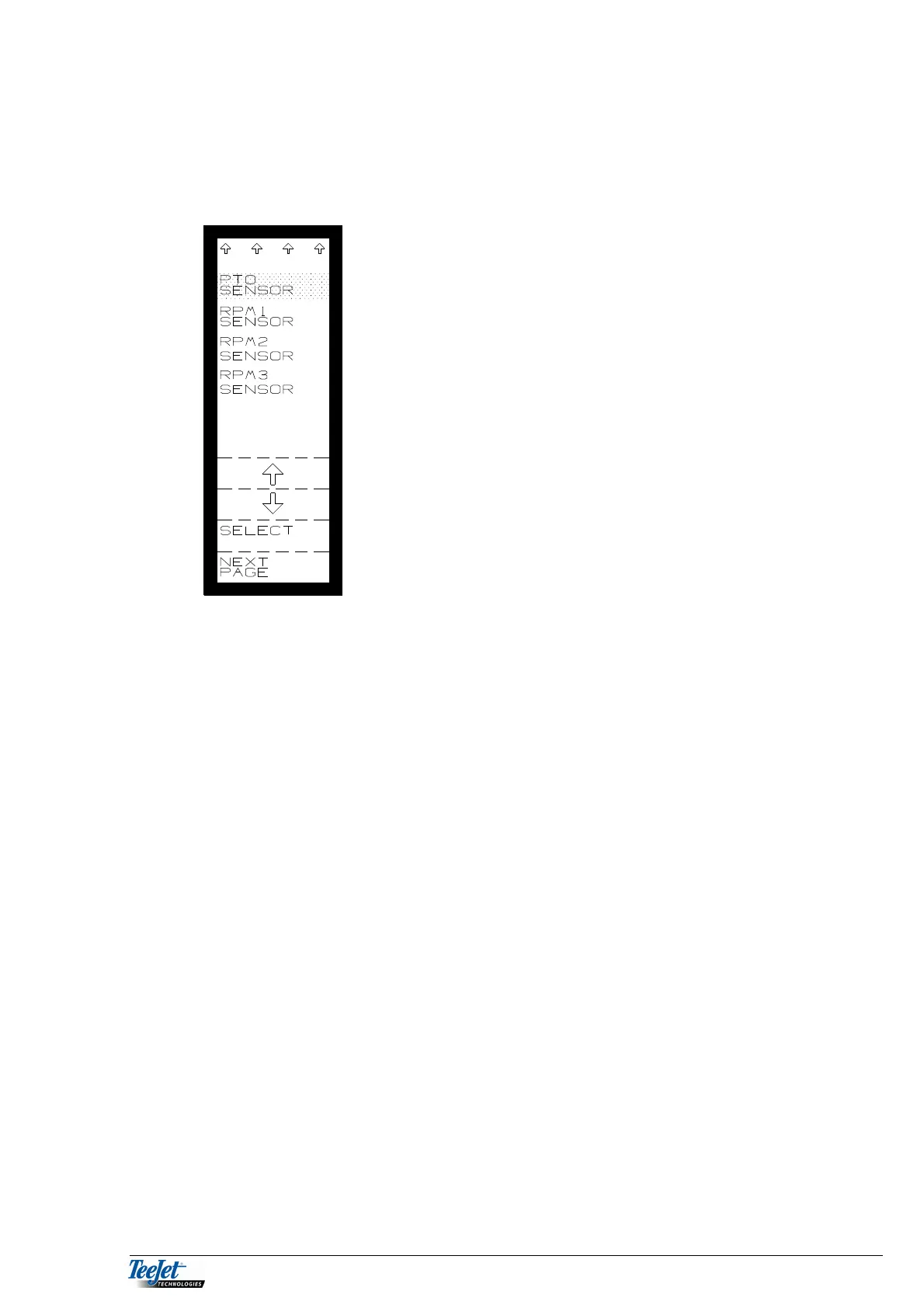

REVS. SENSOR
The number of pulses per revolution for the individual shaft speed sensors is
encoded here.
PTO SENSOR: If the TeeJet PTO sensor is used (932-
983) then encode “1”.
RPM1: If the TeeJet sensor set is used (930-
983) then encode “1”.
RPM 2: If the TeeJet sensor set is used (930-
983) then encode “1”.
RPM3: If the TeeJet sensor set is used (930-
983) then encode “1”.
WARNINGS
PTO: Warning ON/OFF and MAX/MIN-limits for revolutions.
KM/H: Warning ON/OFF and MAX/MIN-limits for forward speed.
SLIP: Warning ON/OFF and MAX/MIN-limits for wheel slip in %.
RPM1: Warning ON/OFF and MAX/MIN-limits for revolutions.
Encode as RPM
RPM2: Warning ON/OFF and MAX/MIN-limits for revolutions.
Encode as RPM
RPM3: Warning ON/OFF and MAX/MIN-limits for revolutions.
Encode as RPM
DATE - CLOCK:
Set the date and time in this menu:
HOURS - MINUTES - YEAR - MONTH - DAY.
