TEEJET 5000 OPERATORS MANUAL FITTING INSTRUCTIONS
12.11
FITTING THE AREA OVERRIDE SENSOR

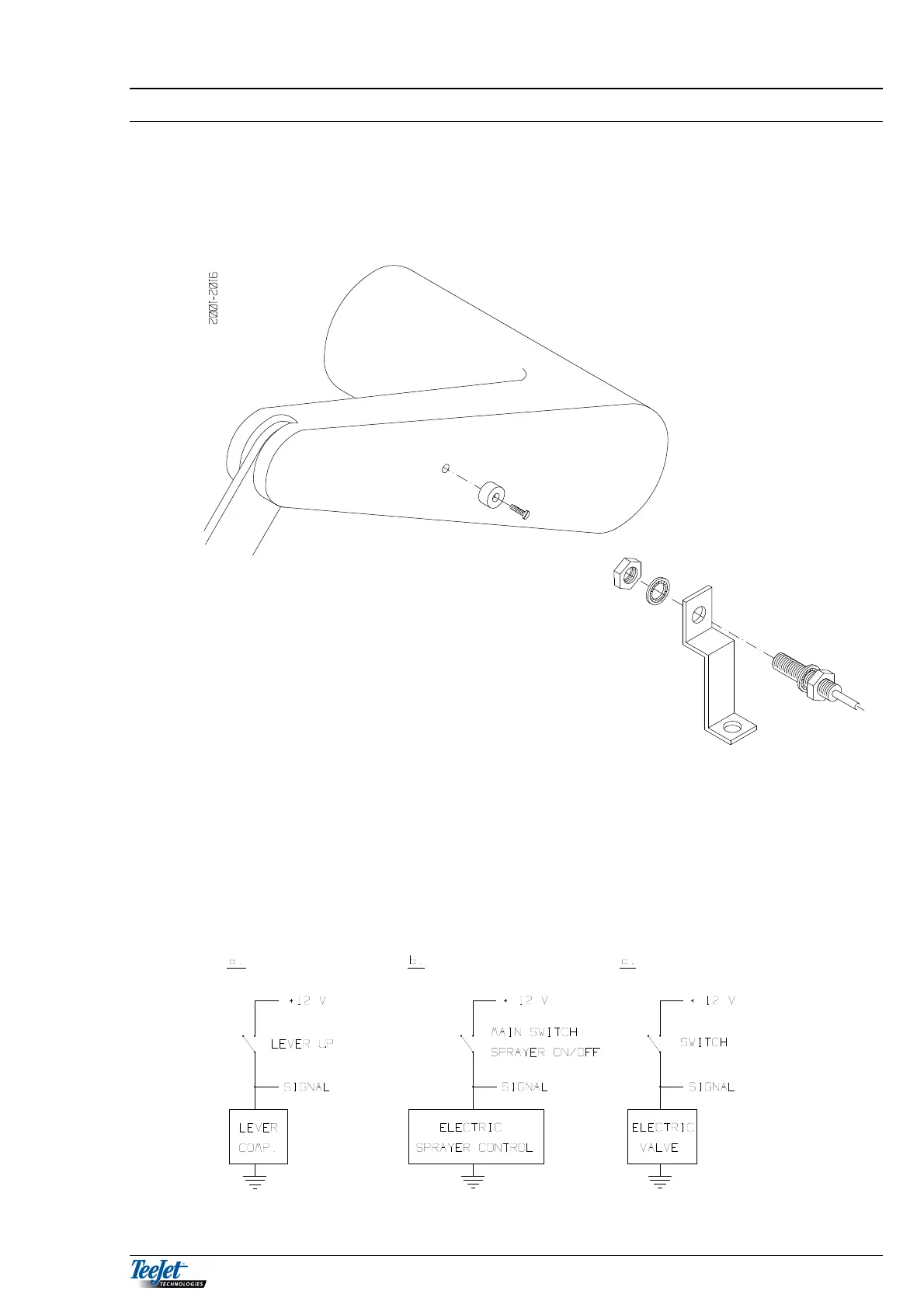

The area override sensor stops the area counter when the implement is not in
operation. Most implements use the three-point linkage and are raised/lowered, so
the most universal solution is to fit the area override sensor on the lift arms.
The sensor can be fitted in other positions (PTO handle, hydraulic cylinder
handles, etc.) as long as there is a mechanical movement of min. 50-mm. The
distance between the sensor and the magnet must not exceed 5 mm.
An electrical signal from, i.e. electrically controlled lift arms, sprayer switch box,
etc. can be used as an area override sensor. The signal must change to 0V
(ground) when the area counter is to be stopped.
