FITTING INSTRUCTIONS TEEJET 5000 OPERATORS MANUAL
12.10

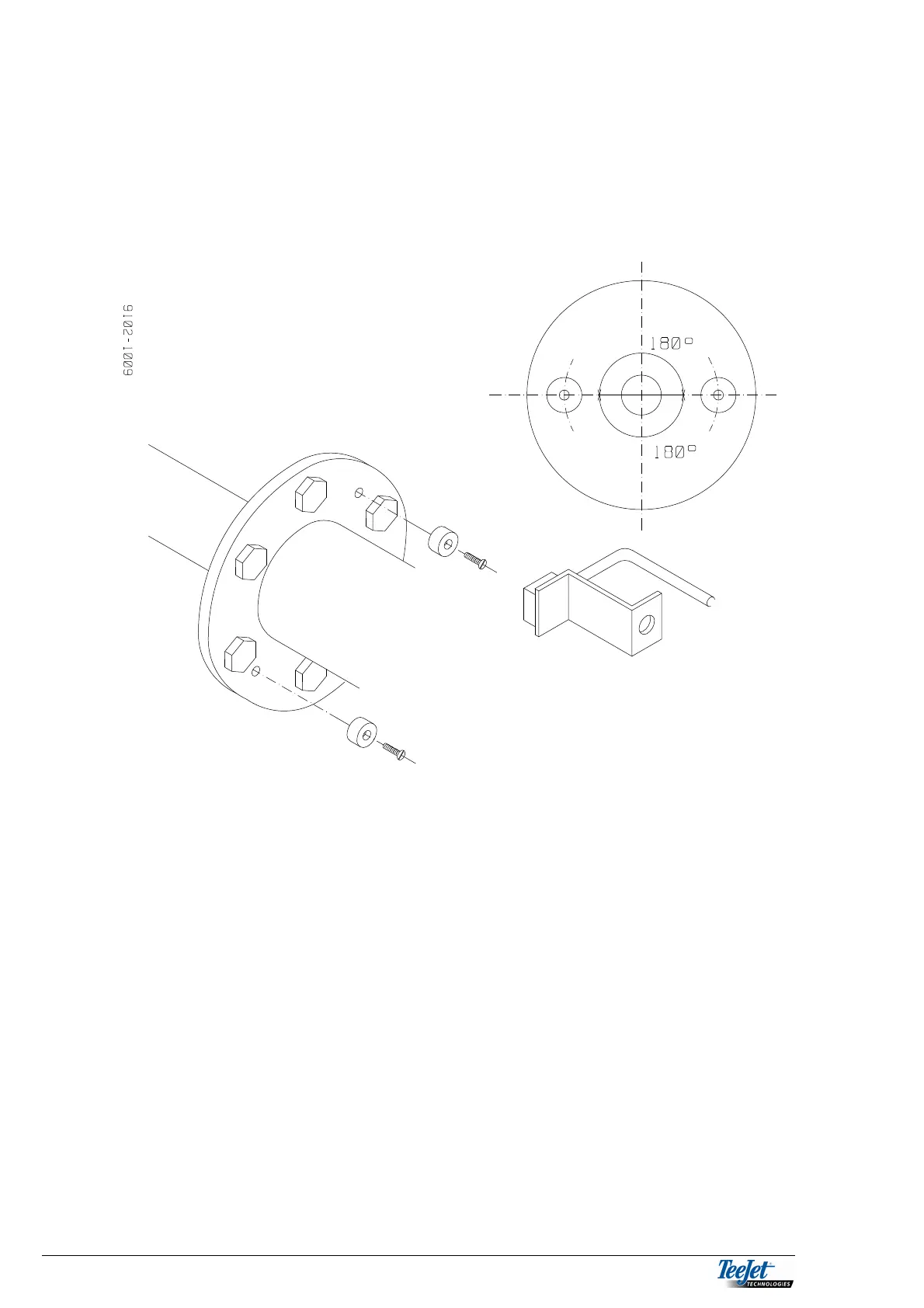

It is preferable, where it is possible, to fit a speed sensor on the drive shaft of 4
wheel drive tractors. This requires a different sensor than the one supplied as
standard with the fitting kit. This possibility is shown in the following diagram.
If the “drive shaft solution” is required, then a “bi-polar” sensor must be used.
This sensor is different than the supplied sensor and should be ordered
separately.
The distance between the sensor and the magnets must be 2-3 mm when using
this type of sensor, and the 2 magnets must have opposite poles facing the
sensor, i.e. one magnet with the yellow spot facing the sensor and the other
magnet facing the opposite direction.
