TEEJET 5000 OPERATORS MANUAL FITTING INSTRUCTIONS
12.19
SEED DRILL
SEED DRILL

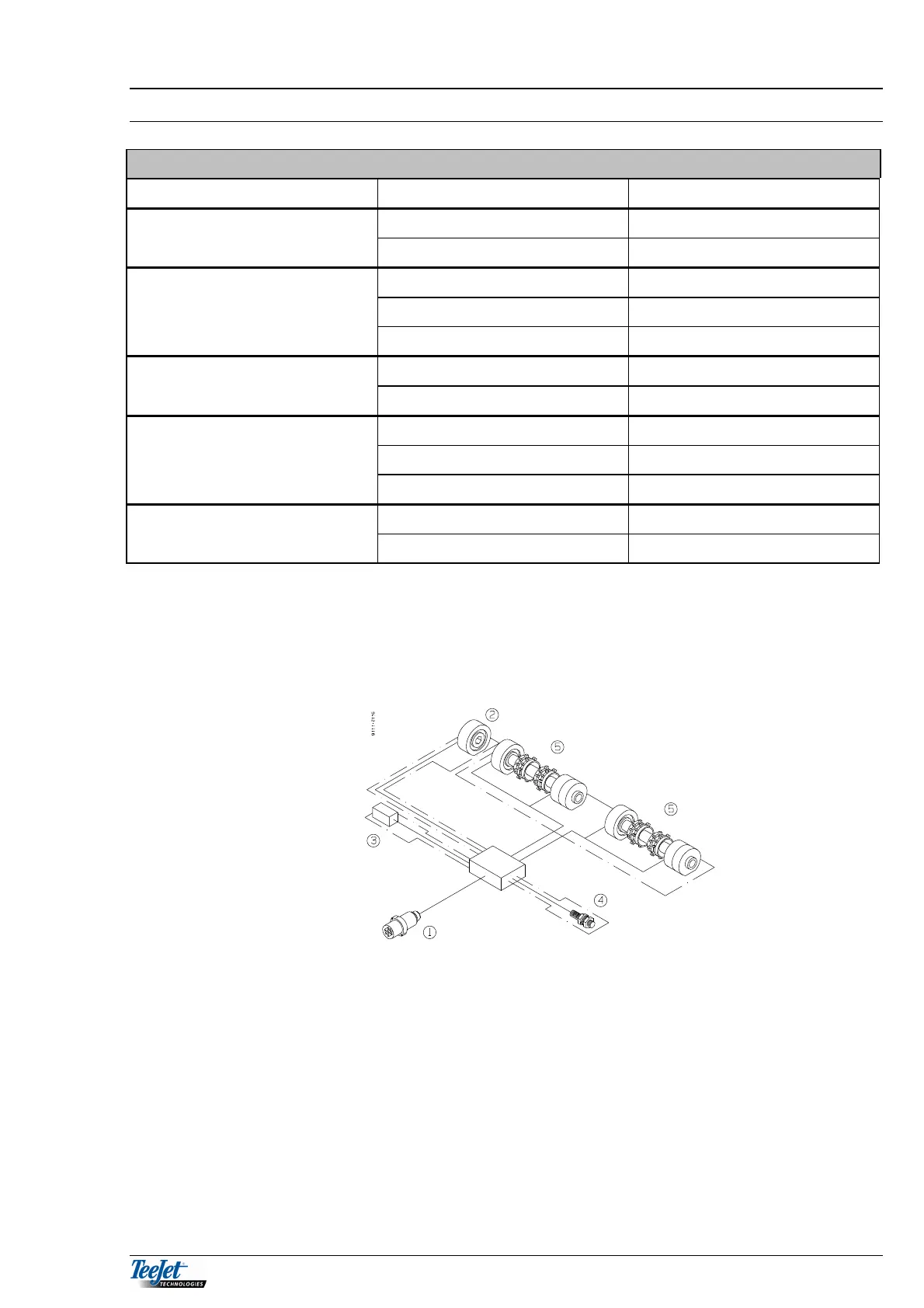

SENSOR WIRE COLOUR PIN NUMBER
RPM SENSOR ON THE BLUE 1
DRILL SHAFT (2 CORE) BROWN 5
RPM SENSOR ON THE BLUE 6
DRILL SHAFT (3 CORE) BROWN 5
BLACK 1
RPM SENSOR ON BLUE 2
CLUTCH BROWN 5
EMPTY HOPPER LEVEL BLUE 6
SENSOR BROWN 5
BLACK 4
IMPLEMENT SENSOR BLUE 7
BROWN 5
Tramline control cannot be connected directly to the breakaway plug. The TeeJet
5000 fitting kit for seed drill must be used.
If tramline control is required the fitting kit displayed below should be used. This kit
is also prepared for additions.
1:
TeeJet 5000 seed drill kit. Includes junction
box and breakaway plug with cable.
TeeJet no. 921-180
2:
RPM sensor for the drill shaft 2-core TeeJet no. 905-152
3:
Empty hopper level sensor TeeJet no. 904-152
4:
Implement sensor TeeJet no. 930-982
Clutch kits with RPM sensors must be ordered to fit the drill shaft on the
seed drill.
5:
Clutch kit for 17-mm hex. axle TeeJet no. 903-152
5:
Clutch kit for 20 mm round axle TeeJet no. 906-152
