TEEJET 5000 OPERATORS MANUAL SEED DRILL, OTHER TYPE
5.13
REVS. SENSOR
Encode the number of pulses the sensors fitted to the drill shaft give per
revolution. It is also possible to select between clutch monitoring and RPM
monitoring (monitoring fan speed on pneumatic machines).
PTO SENSOR
Encode 1 if the TeeJet PTO sensor kit (932-983) is used.
DRILL SENSOR
Encode 12 if the TeeJet pulse giver (905-152) or (906-152) is used. Sensors that
generate fewer than 4 pulses per revolution cannot be used.
CLUTCH SENSOR
Encode 12 if the TeeJet pulse (905-152) or (906-152) is used. Sensors that
generate fewer than 4 pulses per revolution cannot be used.
If you require monitoring of, e.g. a fan on a pneumatic seed drills, select RPM at
the bottom of the screen.

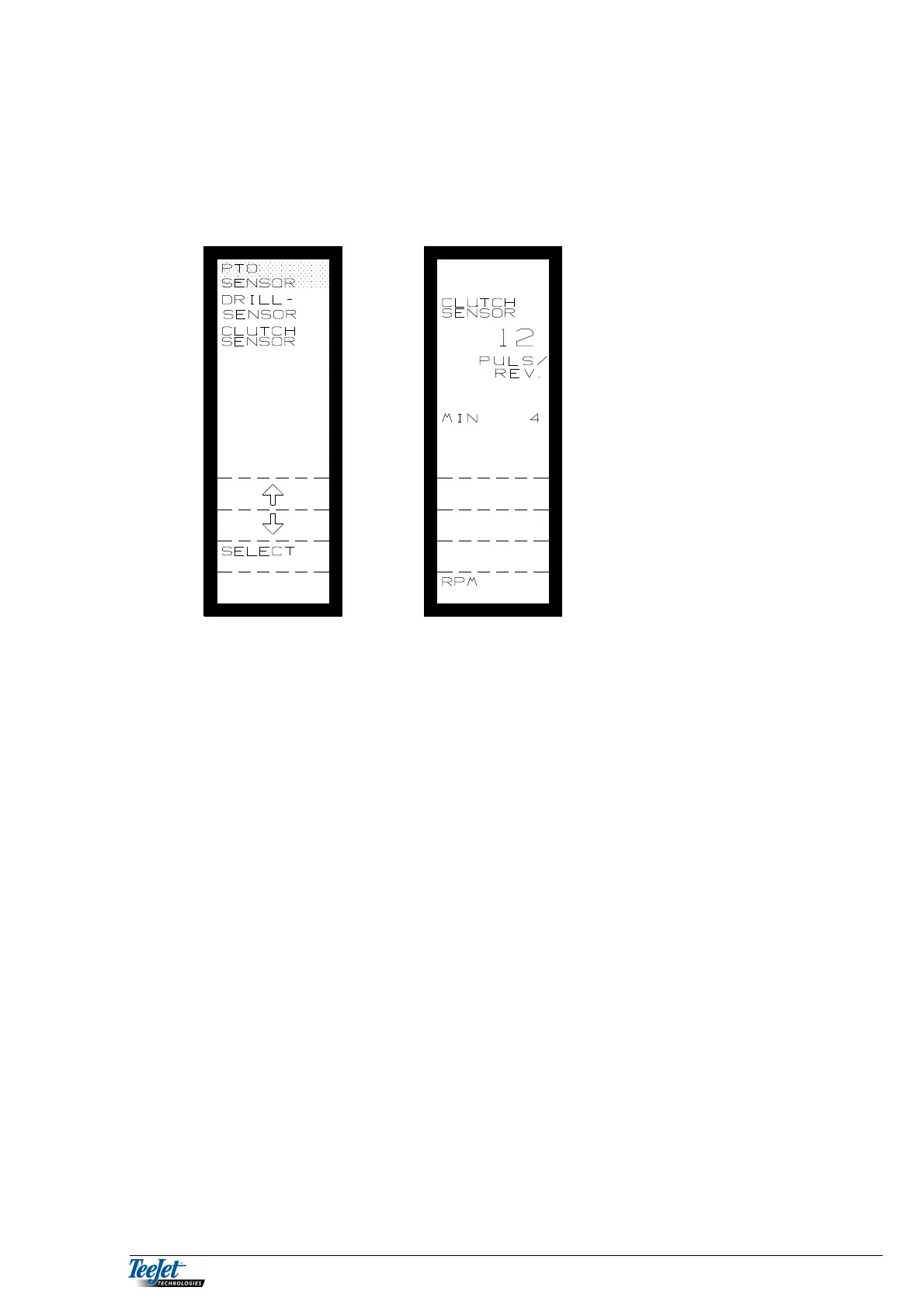

The above example shows clutch monitoring (tramlining clutches) and the number
of pulses per revolution is 12.
