TEEJET 5000 OPERATORS MANUAL BALER
6.3
BALER OPERATION

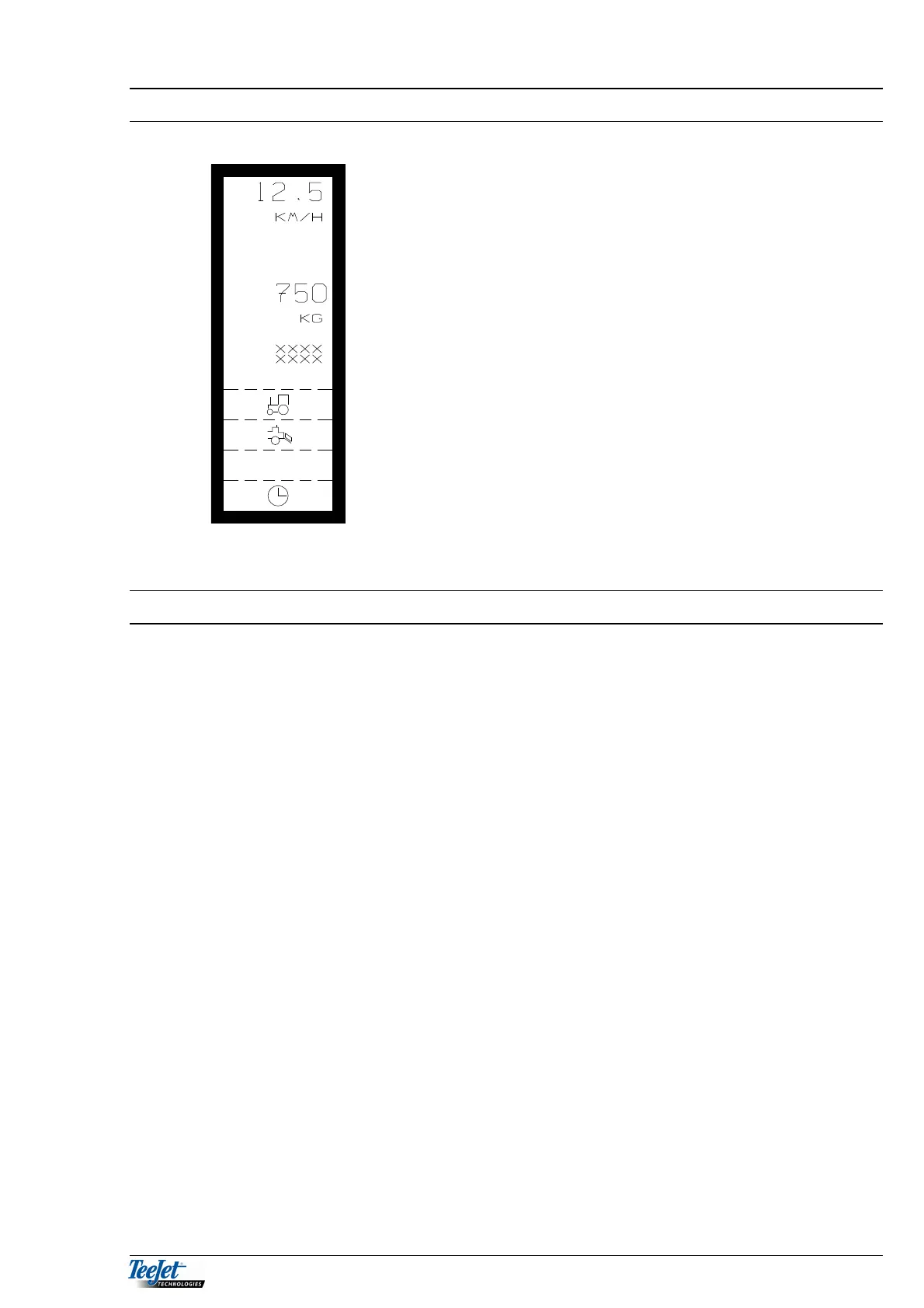

FORWARD SPEED:
The primary function under baler is forward speed.
Forward speed is displayed in KPH with 1 decimal.
Forward speed is calculated from the speed sensor
selected in “ENCODE” (wheel tractor or radar).
WEIGHT/RPM 3:
The secondary function is either weight or RPM
(selected under “ENCODE”).
Weight displayed in KG is possible if the baler is fitted
with a weighing mechanism.
RPM 3 should be selected if the baler is not fitted with a
weighing mechanism; RPM is displayed instead of
weight.
BALER FUNCTIONS
The TeeJet 5000 when used with a baler fitted with a weight system (large bales),
weighs each bale individually. The TeeJet 5000 cannot however record the weight
of all the bales baled. If no weighing system is connected to the TeeJet 5000, then
RPM will be displayed instead of weight. Select which is to be used under
“ENCODE”.
Functions with weigh
system
RPM 1:
Shaft speed of axle no. 1.
RPM 2:
Shaft speed of axle no. 2.
UNITS:
Total bales (bale counter).
TARRING:
Zero setting the weigh
system.
Functions without weigh
system
