TEEJET 5000 OPERATORS MANUAL FERTILISER DISTRIBUTOR, BØGBALLE
4.33

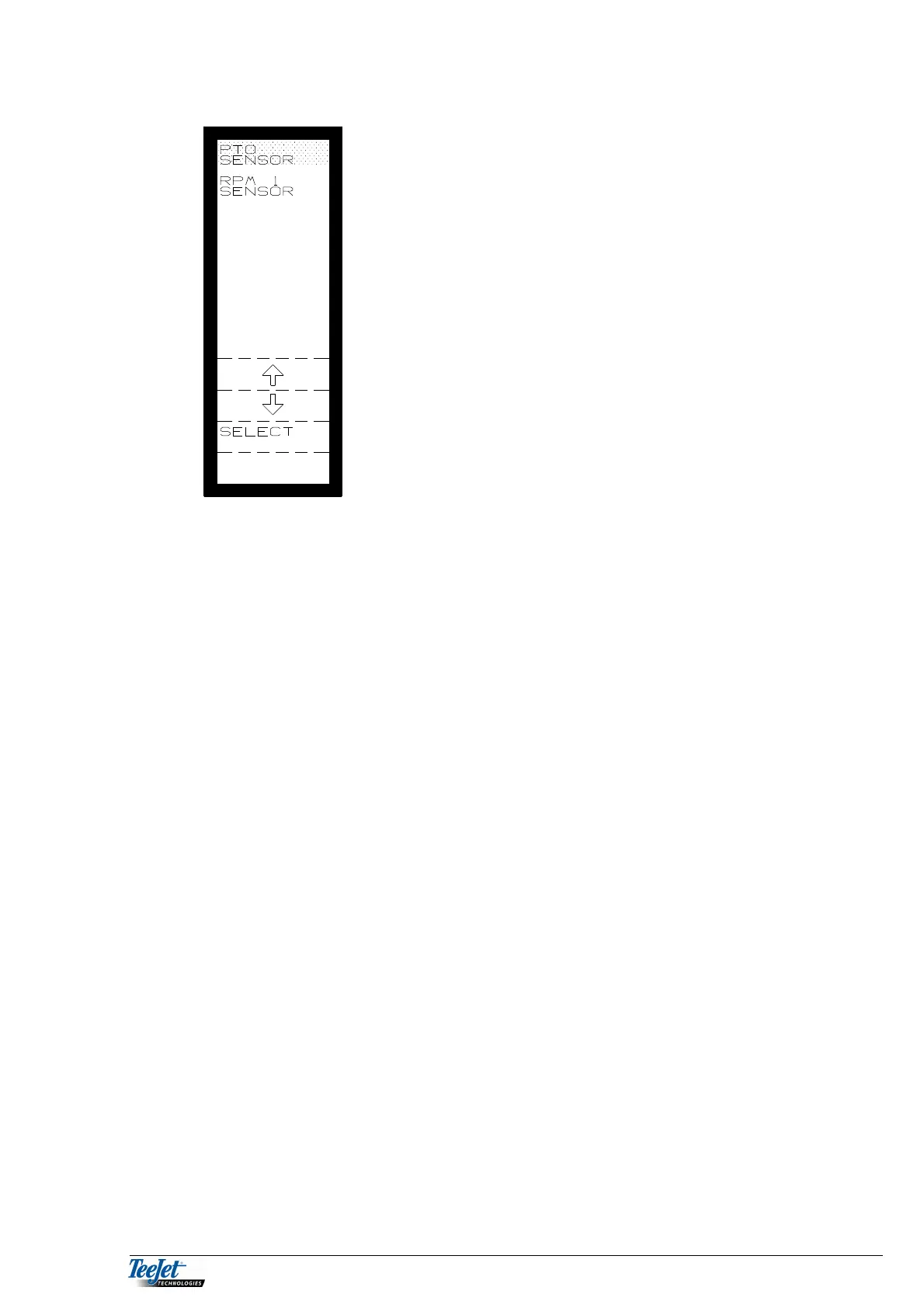

REVS. SENSOR
PTO SENSOR: If the TeeJet PTO sensor kit is used
(932-983) encode 1.
RPM 1 SENSOR:
The Bøgballe kit can be extended with a RPM sensor
on the spreader discs. The pulses/rev. Should be set to
1.
WARNING ENCODE
The following warnings can be set in this menu:
It is recommended to turn all warnings, which are not wanted “OFF”.
PTO: Warning ON/OFF and MAX/MIN-limits for revolutions.
KM/H: Warning ON/OFF and MAX/MIN-limits for speed.
SLIP: Warning ON/OFF and MAX/MIN-limits for wheel slip in %.
KG
LEFT: Warning ON/OFF and amount of kg (min.) at which warning is
wanted.
RPM 1: Warning ON/OFF and MAX/MIN-limits for shaft speed. Encode in
RPM.
NB: The encoded limits must exceed the limits encoded. If a warning is
required when an axle stops (0 RPM) then set the minimum limit to 1.
NOTE! ALARM DOSE RATE:
When the spreader handle goes bellow 1.5 or when the application
rate/forward speed are such that the handle goes above the max. On
the scale, an alarm will sound. This alarm cannot be switched off!
DATE - CLOCK:
Set the date and time in this menu:
HOURS - MINUTES - YEAR - MONTH - DAY.
