TEEJET 5000 OPERATORS MANUAL FITTING INSTRUCTIONS
12.9
FITTING THE FORWARD SPEED SENSOR
The TeeJet 5000 system can receive speed signals from 3 different speed
sensors, a wheel sensor on the tractor, a wheel sensor on the implement, and
radar.
Fitting the supplied wheel sensor is recommended on the rear right-hand wheel of

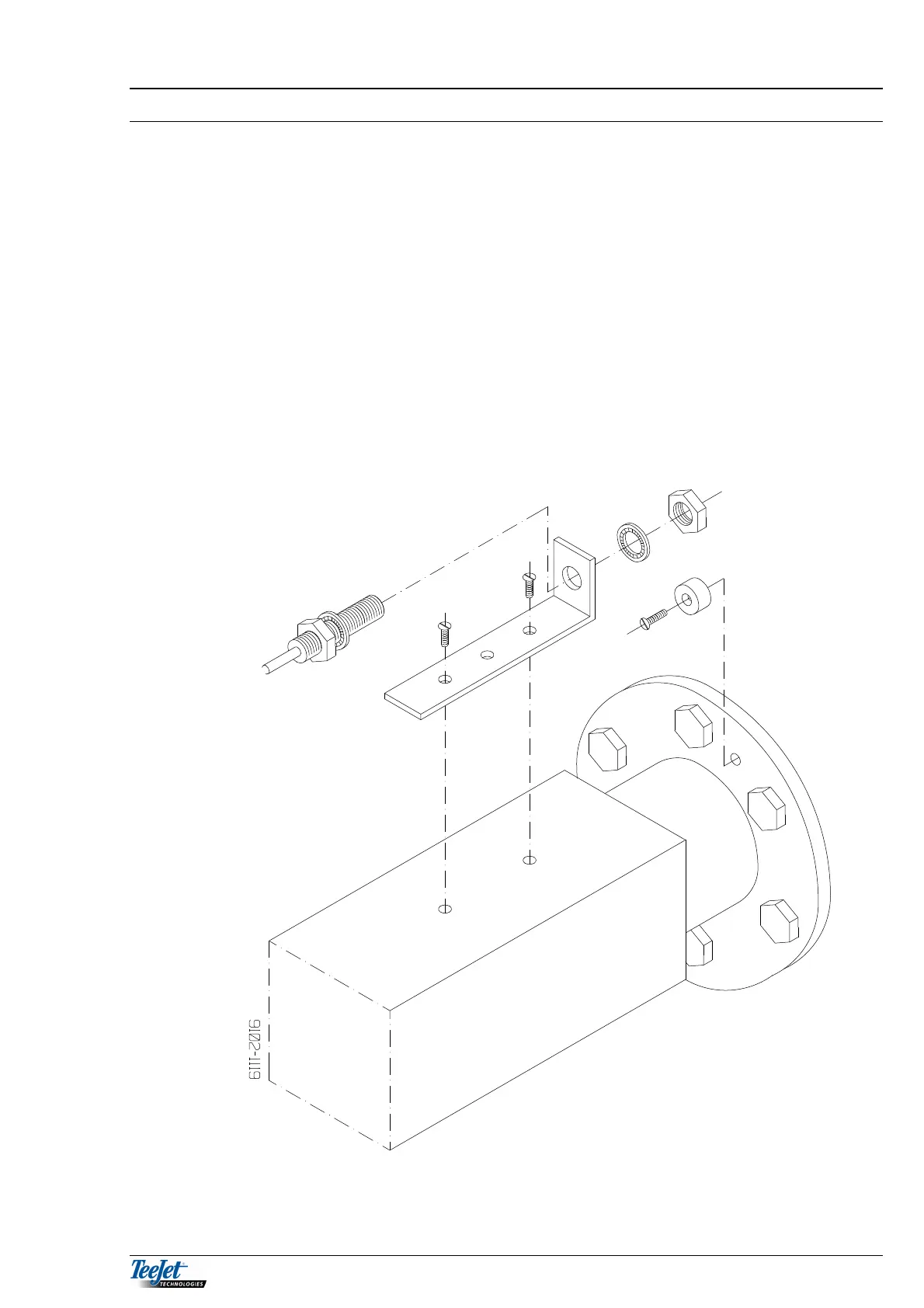

the tractor. See the diagram below.
The distance between the magnet and the speed sensor should not exceed 5mm.
If the wheel circumference exceeds 250 cm. then 2 magnets must be fitted. When
using automatic application control the wheel circumference should not exceed
100 cm if this is the case then more magnets should be added.
NOTE! The magnets must be fitted with equal distance between each magnet;
otherwise the forward speed will “spring”.
The magnets can be fitted, i.e. on the wheel bolts.
