TEEJET 5000 OPERATORS MANUAL SLURRY SPREADER, HORSCH
7.37

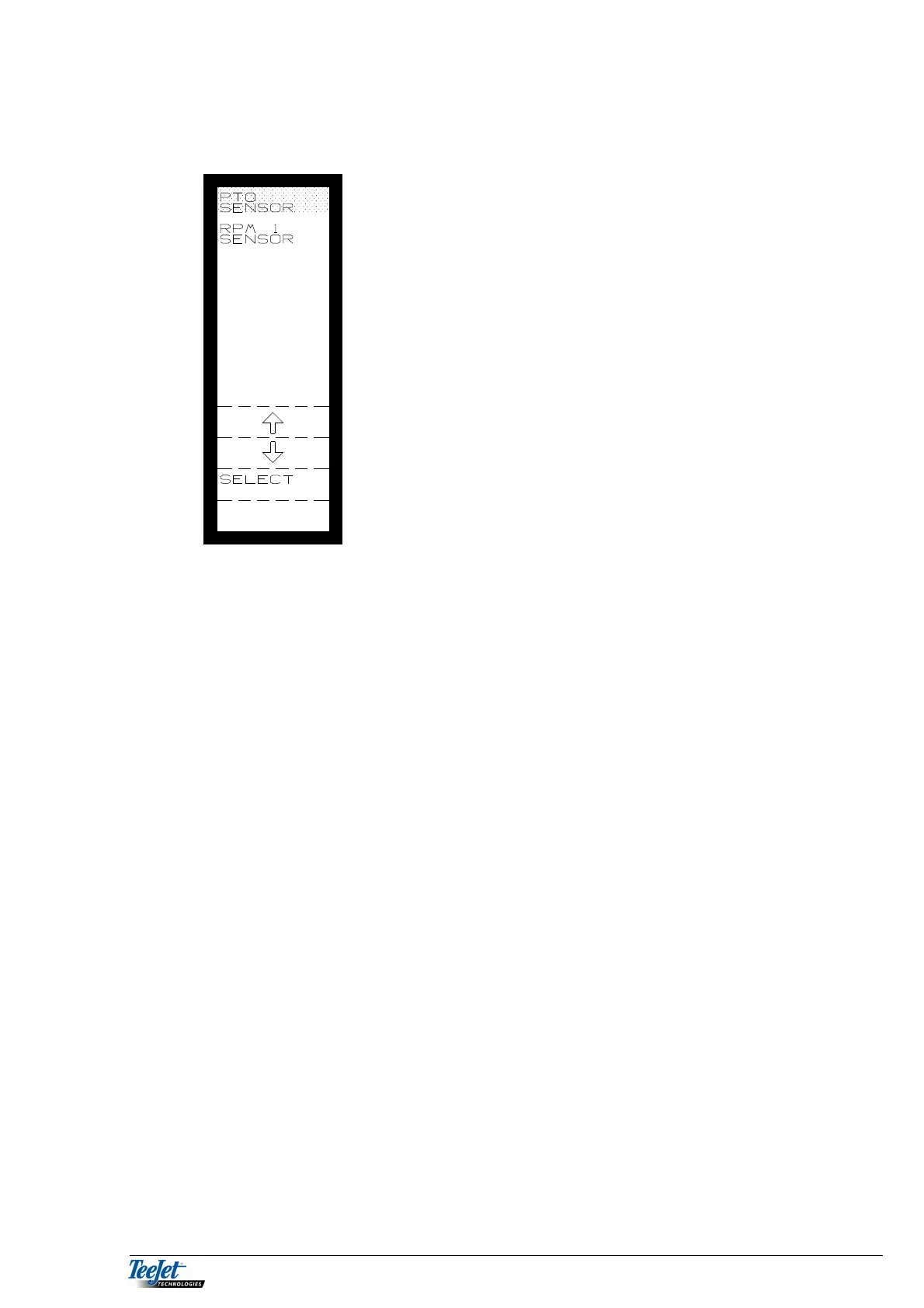

REVS. SENSOR
Encode the number of pulses per revolution given for the
individual sensors.
SYSTEM B PLUG
There are 2 system plugs on the back of the TeeJet 5000.
The System A plug is compatible with older TeeJet 5000 versions.
The System B plug is for new connections.
ACTIVE 0 VOLT: The individual sections are opened with 0V.
ACTIVE 12 VOLT: The individual sections are opened with 12V.
