SEED DRILL, NORDSTEN TEEJET 5000 OPERATORS MANUAL
5.28
WORK HOUR ON/OFF
Select whether the timer function is started/stopped manually via the function key
in the operation menu or by the selected implement sensor.
REVS. SENSOR
Encode the number of pulses the sensors fitted to the drill shaft give per
revolution. It is also possible to select between clutch monitoring and RPM
monitoring (monitoring fan speed on pneumatic machines).

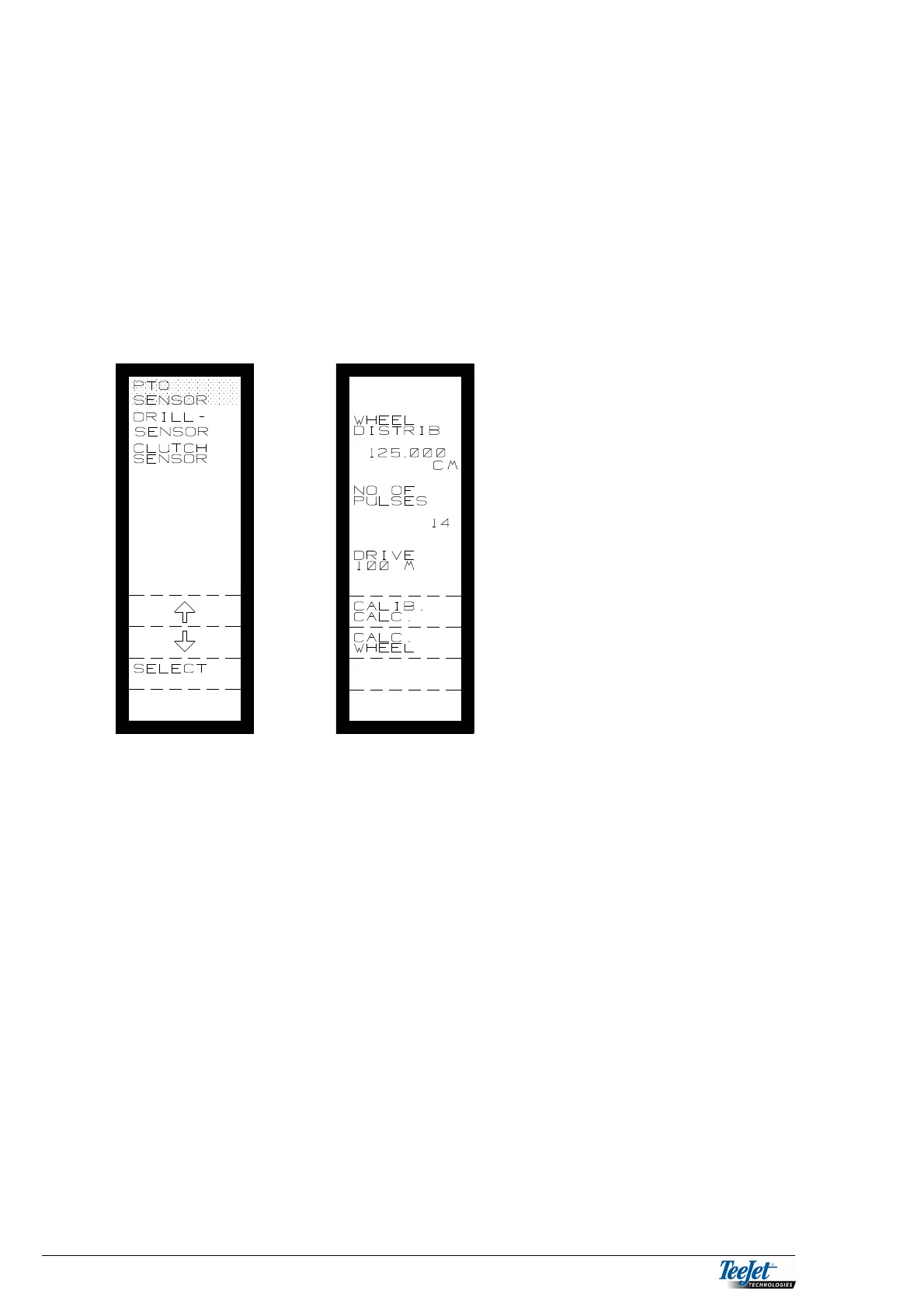

PTO SENSOR
Encode 1 if the TeeJet PTO sensor kit (932-983) is used.
DRILL SENSOR
Encode the number of pulses per revolution for the drill shaft sensor, (normally
12).
CLUTCH SENSOR
Select whether it is a traditional seed drill (clutch monitoring) or whether it is a
pneumatic seed drill (fan monitoring).
Select RPM and encode 1 pulse per rev. if a pneumatic seed drill is being
used.
For traditional seed drills fitted with tramline clutches, select “CLUTCH SENSOR”
the number of pulses per rev. is normally 12.
