SLURRY SPREADER, HORSCH TEEJET 5000 OPERATORS MANUAL
7.40

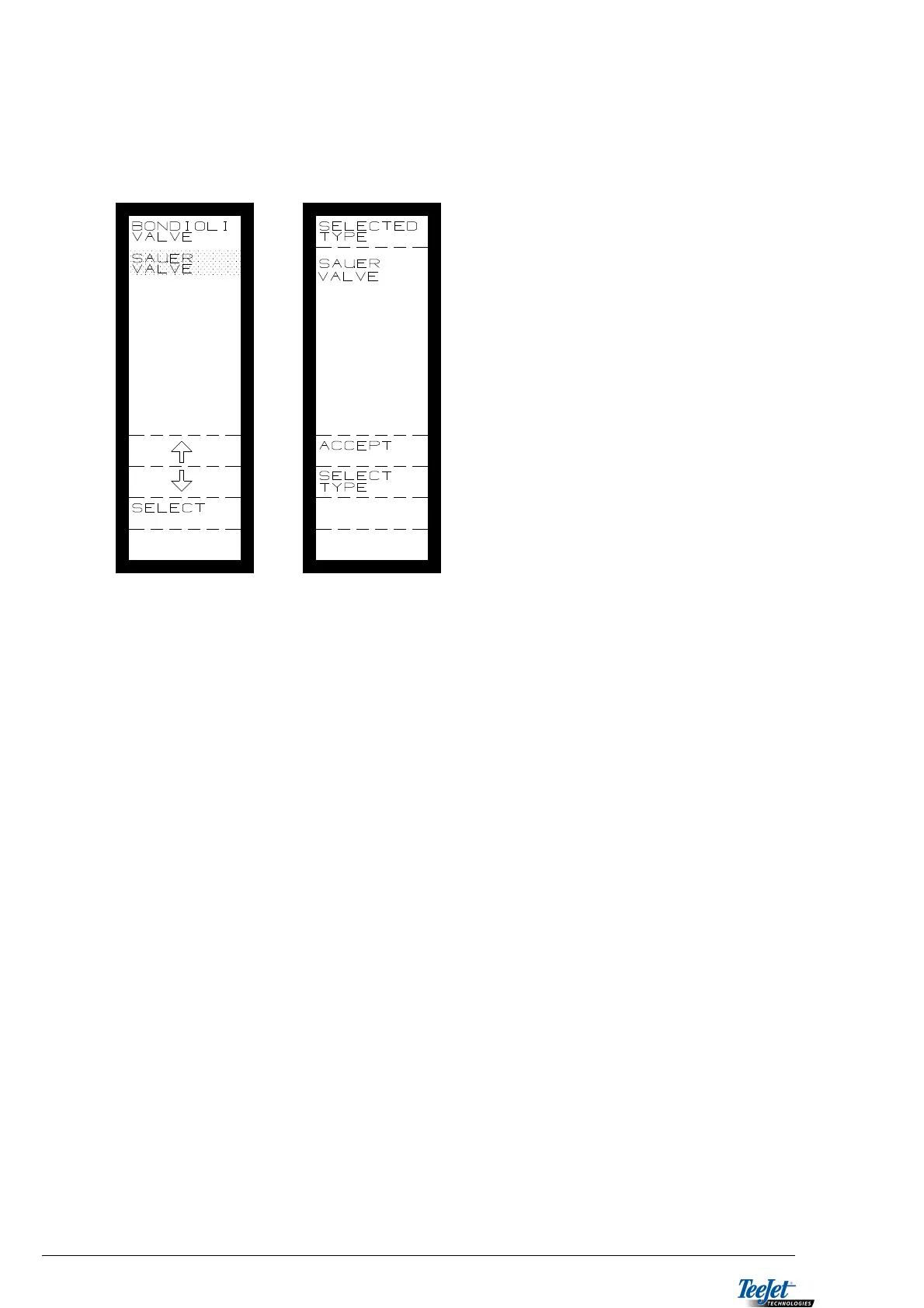

PROPORTIONAL VAVE
Select which porportional valve is fitted on the system in this menu.
1. Select type
2. It is now possible to select
between the shown valve types.
3. Select valve.
4. Accept.
WARNING ENCODE
The following warnings can be set in this menu:
It is recommended to turn all warnings, which are not wanted “OFF”.
PTO: Warning ON/OFF and MAX/MIN-limits for revolutions.
KM/H: Warning ON/OFF and MAX/MIN-limits for speed.
SLIP: Warning ON/OFF and MAX/MIN-limits for wheel slip in %.
MIS-
DOSERATE: Warning ON/OFF and max difference in %.
RPM 1: Warning ON/OFF and MAX/MIN-limits for shaft speed. Encode in
RPM.
NB: The encoded limits must exceed the limits encoded. If a warning is
required when an axle stops (0 RPM) then set the minimum limit to 1
DATE - CLOCK:
Set the date and time in this menu:
HOURS - MINUTES - YEAR - MONTH - DAY.
