TEEJET 5000 OPERATORS MANUAL FITTING INSTRUCTIONS
12.7
FITTING THE JUNCTION BOX
Fit the junction box under the instrument panel or on the underside of the cab.
When fitting the junction box outside the cab, moisture must be taken into
consideration. The cable holes in the rubber caps should not be cut any larger

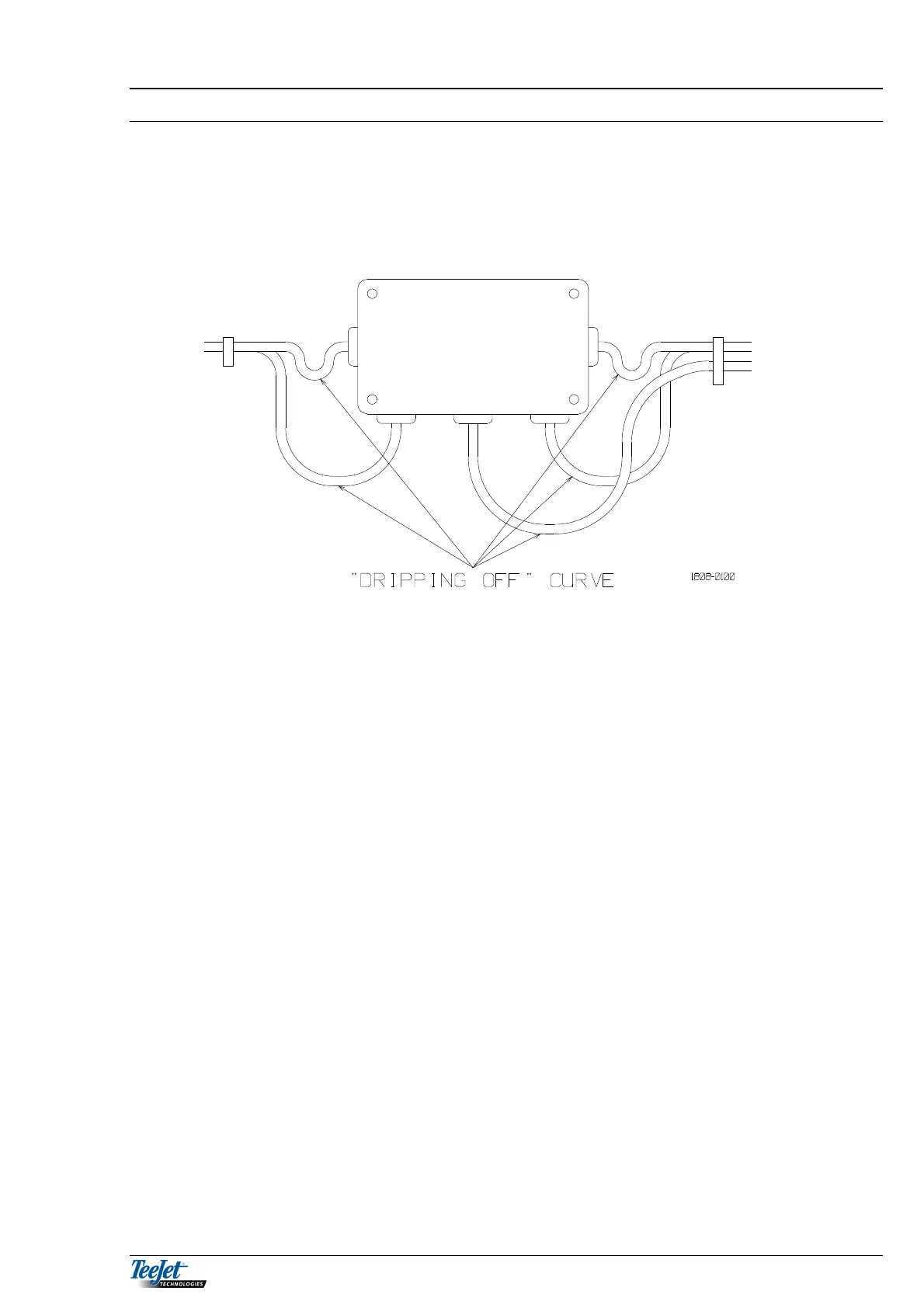

than the cable and the cable should be long enough to allow for “DRIP OFF
POINTS” before entering the junction box (see diagram below).
