SEED DRILL, LEMKEN TEEJET 5000 OPERATORS MANUAL
5.32
LEMKEN SEED DRILL

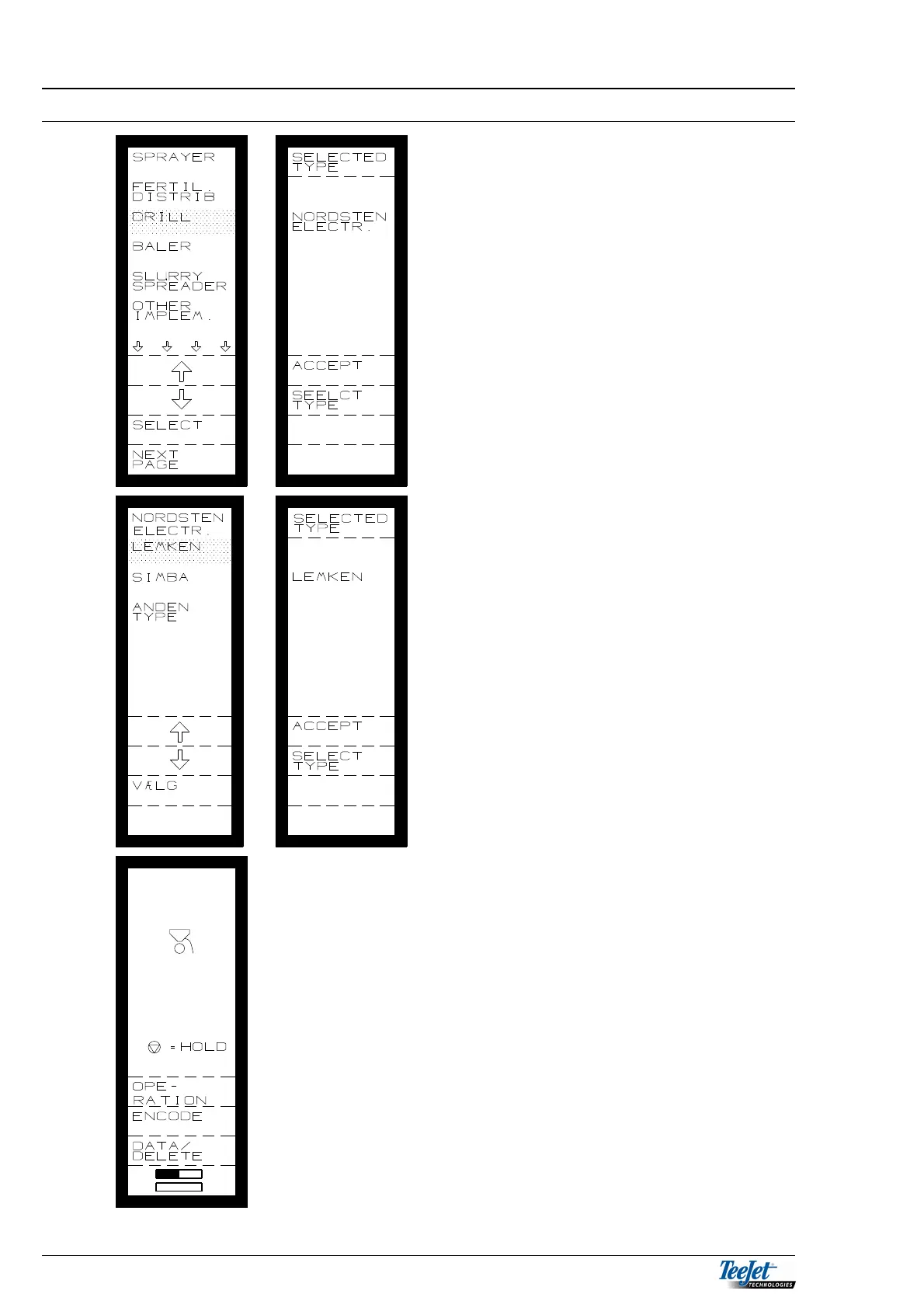

1. Select drill from the main menu:
2. Move the cursor using the arrow keys
to “DRILL” when this is done press the
“SELECT” key.
3. Main menu: Drill.
4. “ACCEPT” the selected type or choose
another type.
5. Select type.
6. It is now possible to choose between
the displayed types.
7. Select the drill type.
8. ACCEPT
It is now possible to select between the
following functions:
OPERATION
ENCODE
DATA/DELETE
TASK OPERATION.
TASK OPERATION is described in
General Functions (section 2) together with
the functions that are available in all of the
programs (area, time & tractor functions)
all of the other functions will be described
one by one.
