TEEJET 5000 OPERATORS MANUAL FITTING INSTRUCTIONS
12.21
SLURRY SPREADER
SLURRY SPREADER
SENSOR WIRE COLOUR PIN NUMBER
RPM SENSOR 1 BLUE 6
BROWN 5
BLACK 1
FLOWMETER +12V 6
0V 5
SIGNAL 2
WHEEL SENSOR BLUE 4
BROWN 5
IMPLEMENT SENSOR BLUE 7
BROWN 5

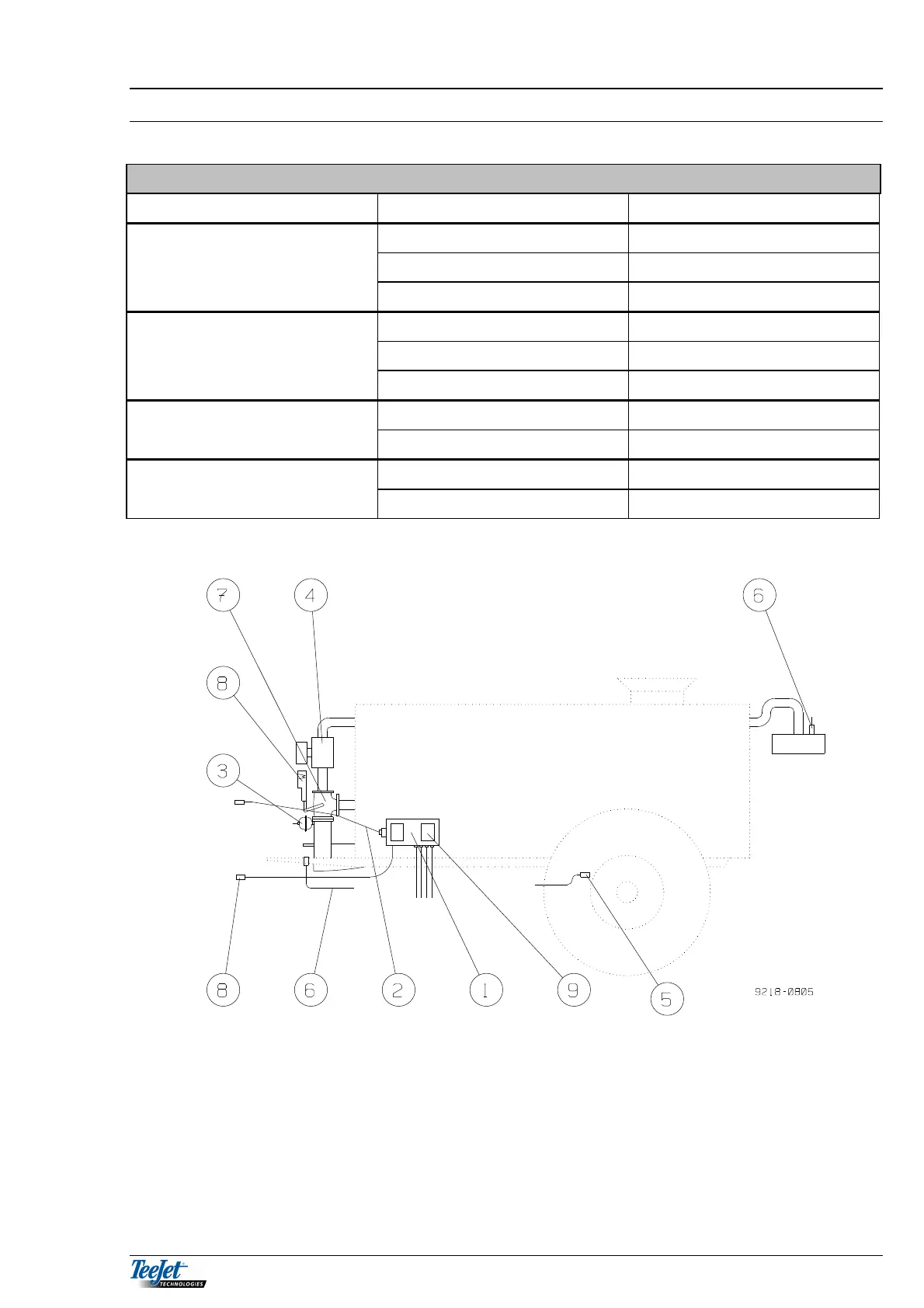

The following shows an example of equipment for a slurry spreader:
1. Junction box 6. RPM sensor
2. Connecting cable 7. Reg. Valve
3. Pressure sensor 8. Actuator
4. Flowmeter 9. Motor control
5. Speed sensor
