TeeJet 5000 - Baler

FITTING INSTRUCTIONS TEEJET 5000 OPERATORS MANUAL
12.20
BALER
BALER
SENSOR WIRE COLOUR PIN NUMBER
BALE COUNTER SENSOR Blue 1
Brown 5
RPM SENSOR 3 BLUE 6
OR BROWN 5
WEIGHING MODULE BLACK 2
RPM SENSOR 2 BLUE 6
BROWN 5
BLACK 4
RPM SENSOR 1 BLUE 6
BROWN 5
BLACK 7

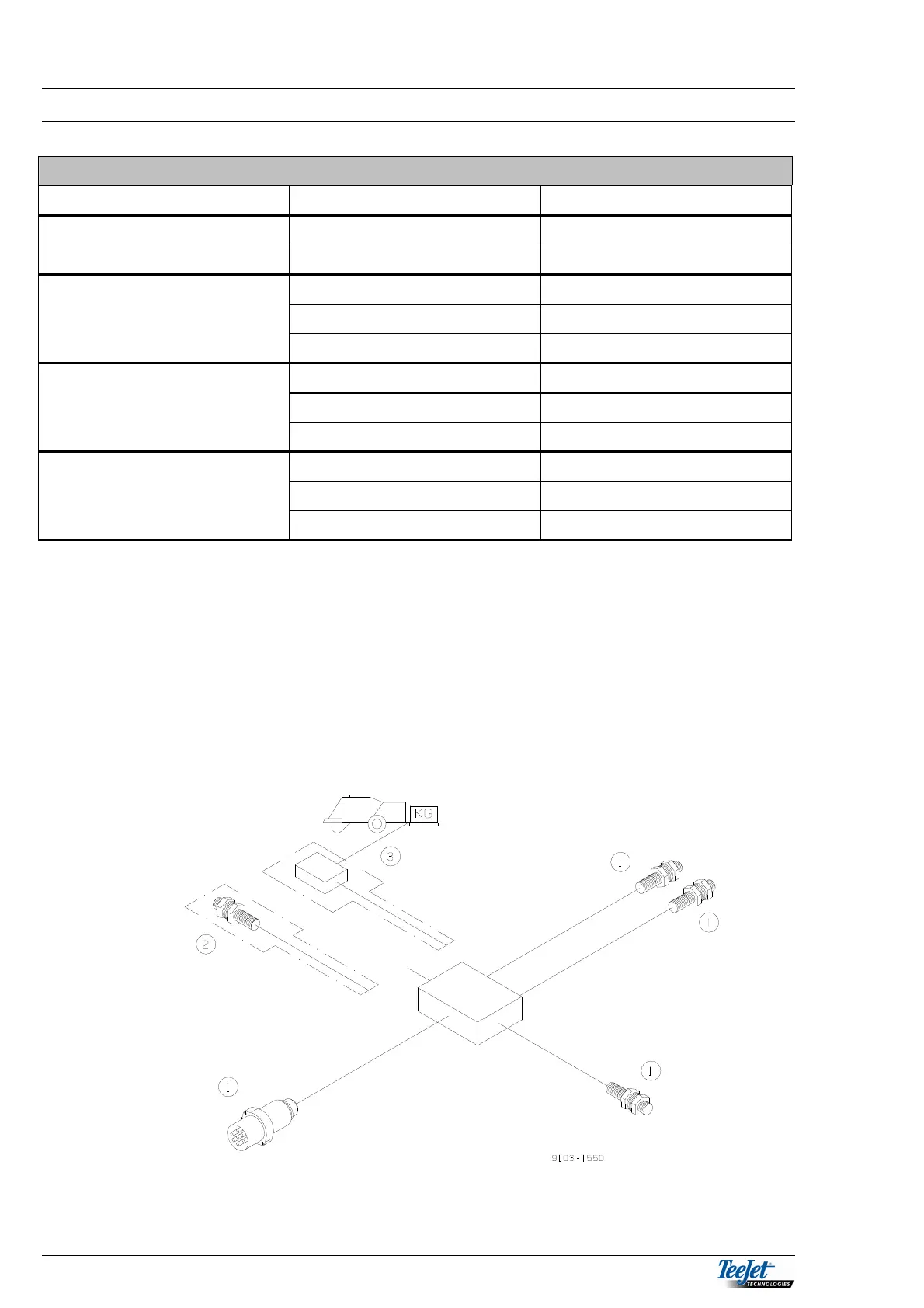

Using the standard kit for balers from TeeJet Technologies gives a better and
neater installation, which is prepared for additions.
1:
TeeJet 5000 baler monitoring kit. Includes
junction box, breakaway plug with cable, 2-
RPM sensors and a bale counter.
TeeJet no. 910-180
2:
RPM sensor kit TeeJet no. 930-983
3:
Bale weighing module to be ordered depending
on baler make and model.
