SEED DRILL, OTHER TYPE TEEJET 5000 OPERATORS MANUAL
5.2
DRILL (OTHER TYPE)

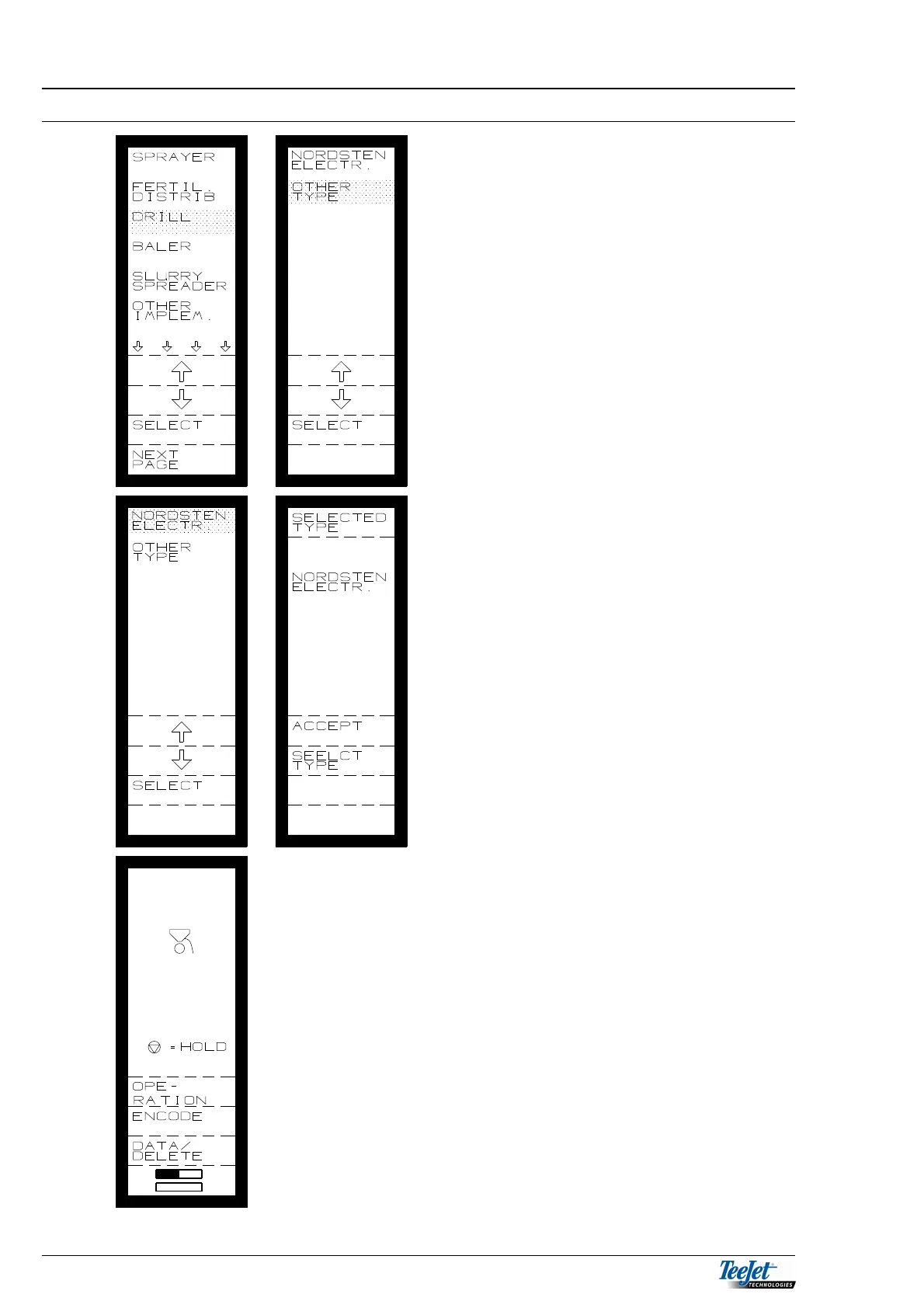

Select seed drill from the main menu as
follows:
1. Move the cursor using the arrow keys
to “DRILL” when this is done press the
“SELECT” key.
2. Main menu: Drill.
3. “ACCEPT” the selected type or choose
another type.
4. Select type.
5. It is now possible to choose between
the displayed types.
6. Select the drill type.
7. ACCEPT
NOTE: NORDSTEN ELECTR. Is only
for NORDSTEN drill with
electronic gearboxes.
It is now possible to select between the
following functions:
OPERATION
ENCODE
DATA/DELETE
TASK OPERATION.
TASK OPERATION is described in
General Functions (section 2) together with
the functions that are available in all of the
programs (area, time & tractor functions)
all of the other functions will be described
one by one.
