SPRAYER TEEJET 5000 OPERATORS MANUAL
3.4

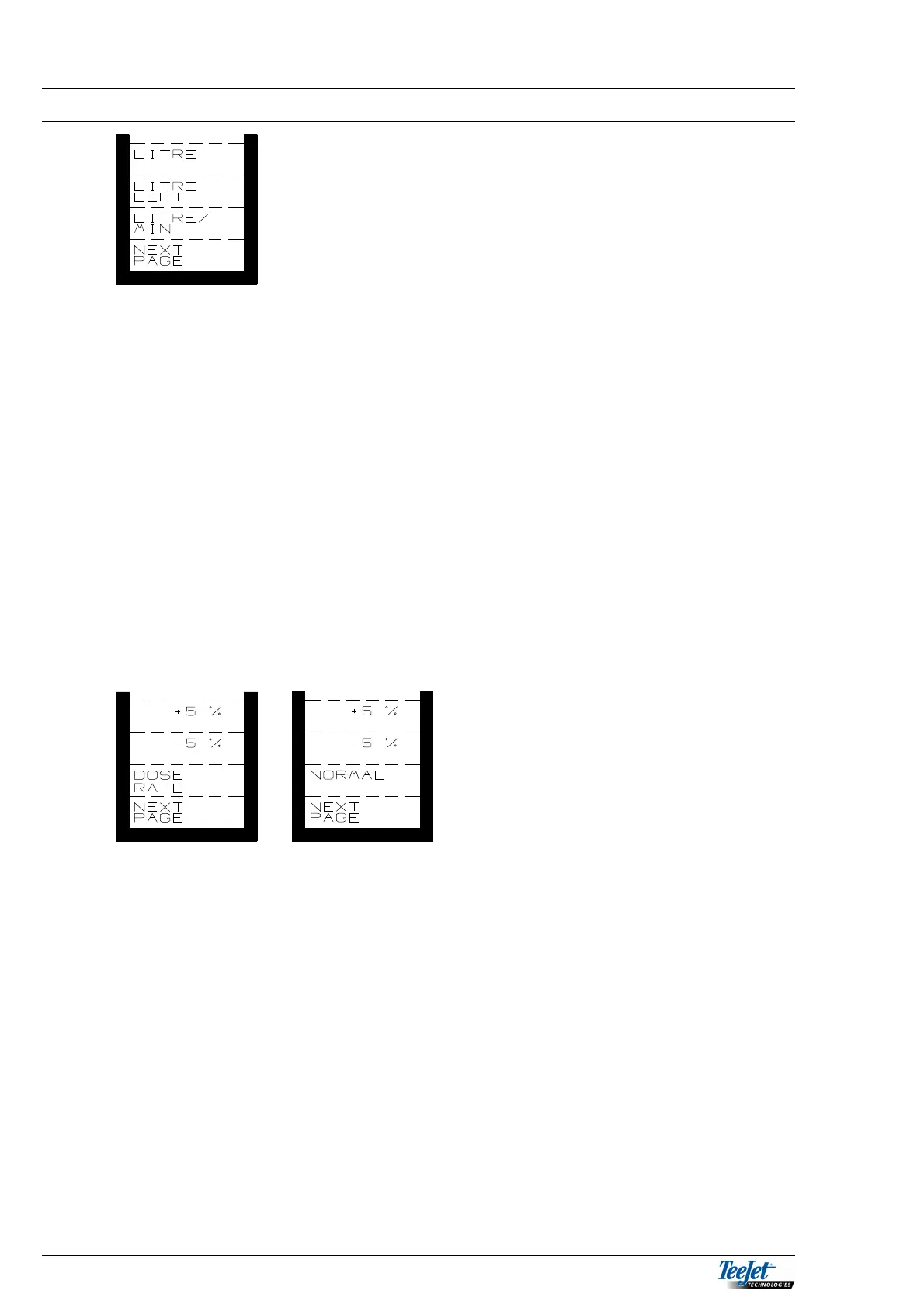

SPRAYER FUNCTIONS:
LITRE: The amount of chemical consumed in
litres.
LITRE
LEFT: Litres left in the tank (the amount filled
must be encoded before starting).
LITRE/MIN: Litres per minute.
LITRE: Consumed litres since starting. This function works as a trip
counter. The amount can be deleted in DATA/DELETE where a
total counter can also be found.
LITRE LEFT: The amount of chemical left in the tank. Presupposes that the
amount filled in is encoded before starting. If the optional filling
flowmeter is used, then this is automatic. Litre left is also used for
checking and calibrating the flowmeter (see page 3.Error!
Unknown switch argument.).
LITRE/MIN: Litres per minute through the flowmeter. Should not be confused
with the pump capacity.
Pressing the “NEXT PAGE” key displays the next functions.
+XX% Step dosage, increase.
-XX% Step dosage, decrease.
DOSE RATE/NORMAL
Encoding the required application
rate or return to normal after using
the step key.
+XX%: Percentile increase of the encoded application rate. The size of
the steps is altered in encode.
-XX%: Percentile decrease of the encoded application rate. The size of
the steps is altered in encode.
DOSE RATE/
NORMAL: This key has 2 functions – DOSE RATE or NORMAL.
The primary function of the key is DOSE RATE; the required
application rate can be encoded by pressing this key.
If the application has been increased/decreased using the step
function, then “NORMAL” appears and the key will return the
application rate to normal.
Pressing “NORMAL” once will return the application rate to normal
regardless of how much the application rate has been
increased/decreased.
