SEED DRILL, NORDSTEN TEEJET 5000 OPERATORS MANUAL
5.30

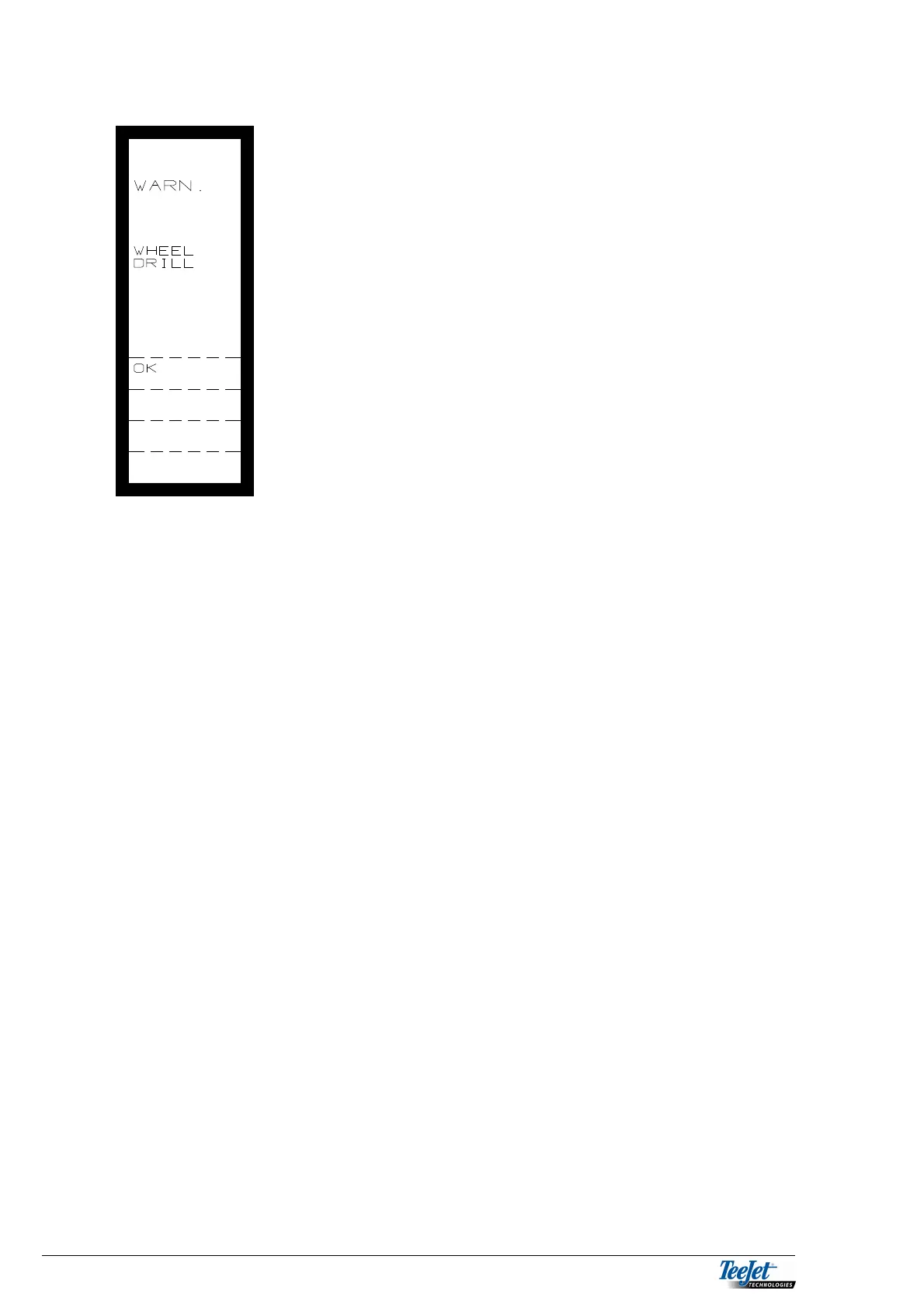

WARN WHEEL DRILL
All other alarms require the wheel sensor to be
generating pulses. To avoid large bare patches, should
the wheel sensor be damaged, and therefore the
computer receives no pulses, even if the drill is lowered,
the warning WHEEL DRILL will be given after approx.
15 seconds. The warning is automatically removed
when the computer receives pulses from the wheel
sensor or when the seed drill is raised. Pressing the
“OK” key will remove the warning for approx. 15
seconds.
WARNING ENCODE
The following warnings can be set in this menu:
It is recommended to turn all warnings, which are not wanted “OFF”.
PTO: Warning ON/OFF and MAX/MIN-limits for revolutions.
KM/H: Warning ON/OFF and MAX/MIN-limits for speed.
SLIP: Warning ON/OFF and MAX/MIN-limits for wheel slip in %.
KG
LEFT: Warning ON/OFF and amount of kg (min.) in the hopper at which the
warning is wanted.
D. SHAFT: Warning ON/OFF if the drill shaft stops turning.
HOPPER: Warning ON/OFF for empty seed hopper.
RPM: Warning ON/OFF and MIN/MAX-limits for fan RPM (pneumatic seed
drills)
If selected under “CLUTCH SENSOR”
NB: If the warning for RPM is “on” then the computer will not allow
sowing to commence before it receives signals from the fitted RPM
sensor.
If the warning is “off” then sowing is independent of the RPM sensor.
CLUTCH: Warning ON/OFF for if the clutches used for tramlining stop working.
DATE - CLOCK:
Set the date and time in this menu:
HOURS – MINUTES – YEAR – MONTH – DAY.
