TeeJet 5000 - Fertiliser Distributor; Monitoring

FITTING INSTRUCTIONS TEEJET 5000 OPERATORS MANUAL
12.16
FERTILISER DISTRIBUTOR
MONITORING

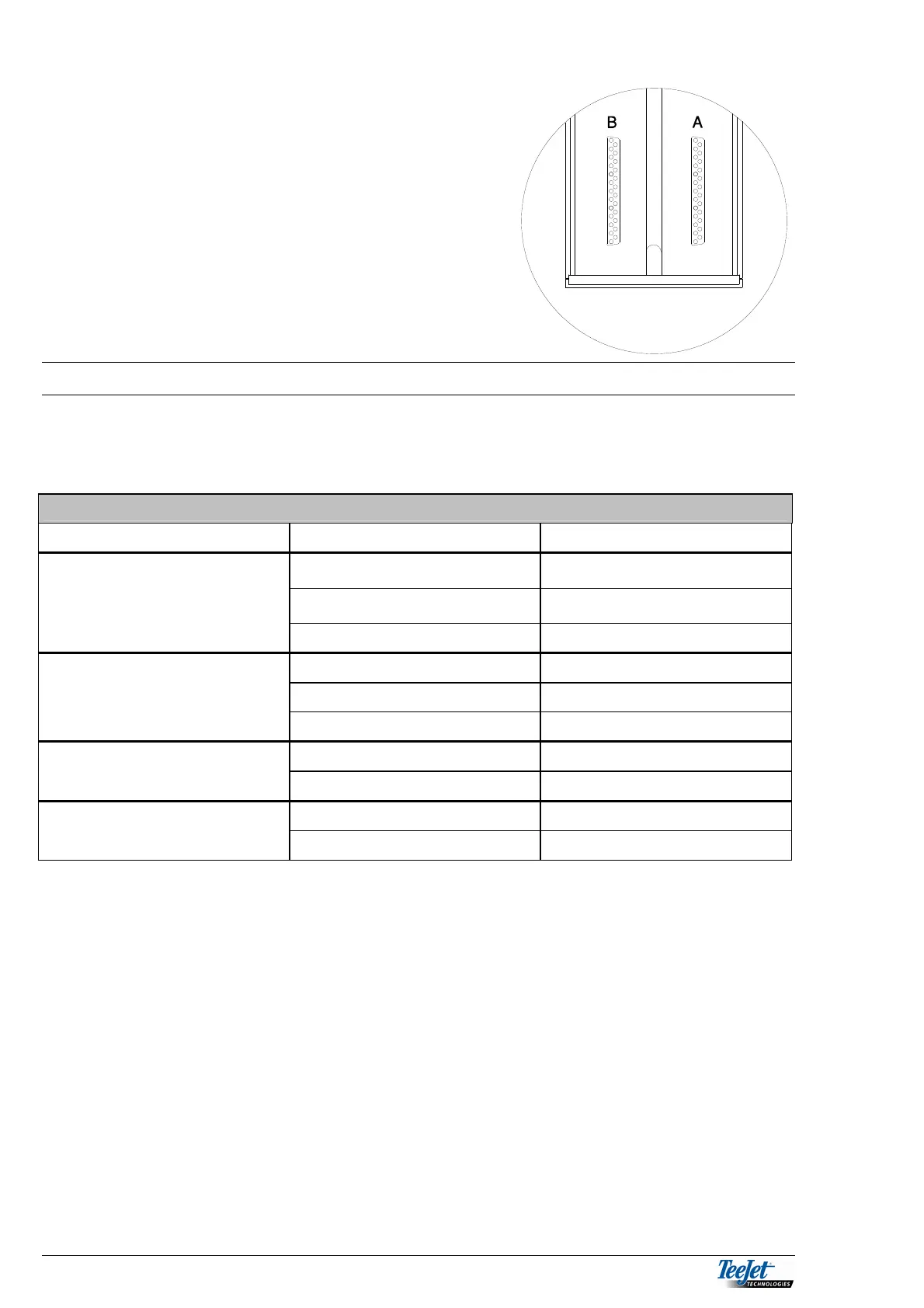

FERTILISER DISTRIBUTOR
SENSOR WIRE COLOUR PIN NUMBER
BLUE 6
RPM SENSOR 1
BROWN 5
BLACK 1
RPM SENSOR 2 BLUE 6
OR BROWN 5
WEIGHING MODULE BLACK 2
SPEED SENSOR BLUE 4
BROWN 5
IMPLEMENT SENSOR BLUE 7
BROWN 5
Using the standard kit for fertiliser distributors from TeeJet Technologies gives a
better and neater installation, which is prepared for additions (see the diagram
below).
1:
Wheel sensor / implement sensor
930-982
2:
Shaft speed sensor kit
930-983
