FITTING INSTRUCTIONS TEEJET 5000 OPERATORS MANUAL
12.12
FITTING THE BREAK-AWAY PLUG

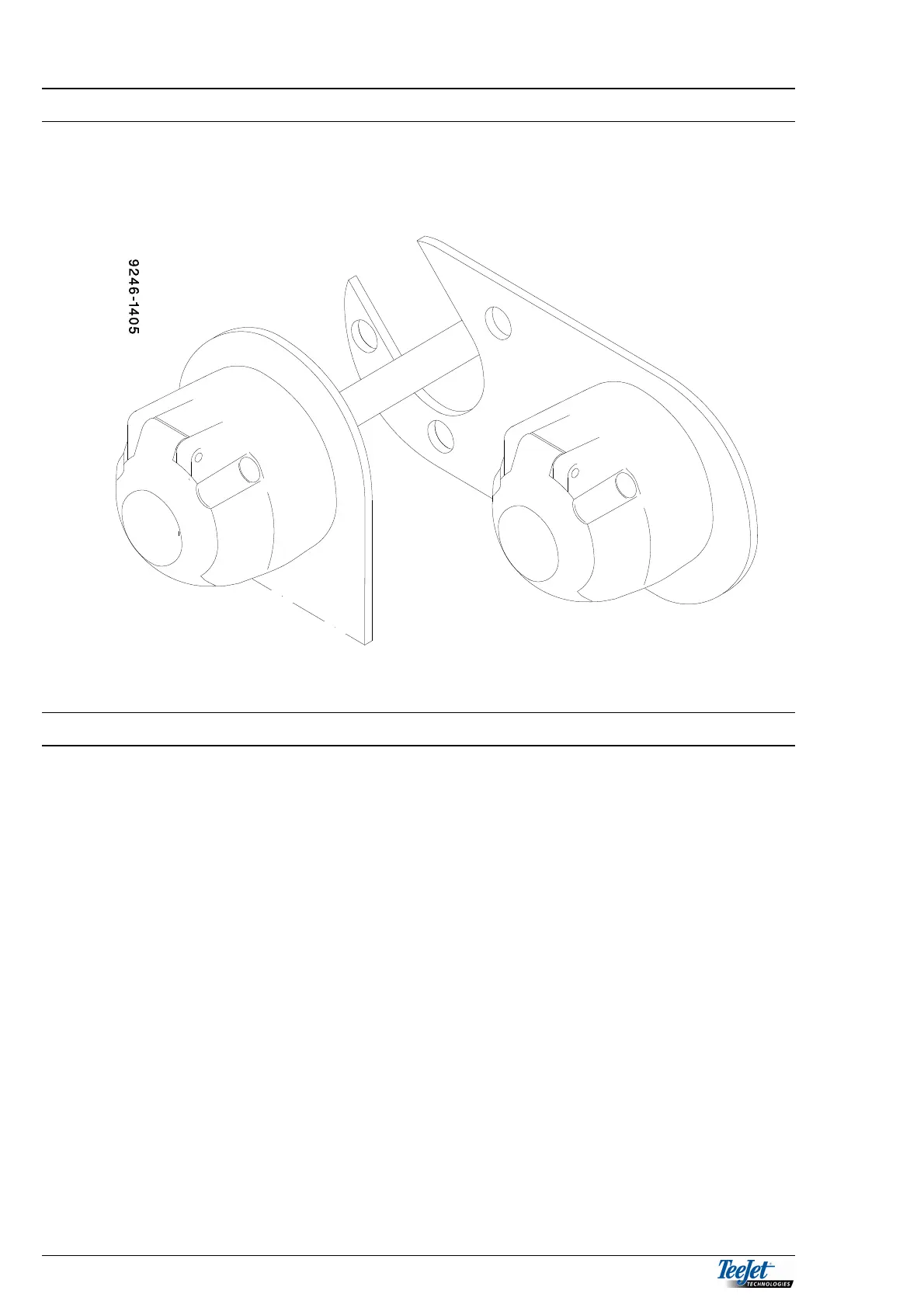

The supplied breakaway plug with cable should be fitted next to the existing trailer
plug, as shown below. Lift arm movement must be considered when fitting the
breakaway plug.
CABLE ROUTING
Lead the cables from the various sensors and breakaway plug together with
existing cables, hydraulic pipes, etc. to the junction box.
Attach the cables with the supplied cable binders. Be careful not to route the
cables near moving parts, sharp edges, and areas with high temperatures, etc.
