FERTILISER DISTRIBUTOR, OTHER TYPE TEEJET 5000 OPERATORS MANUAL
4.6

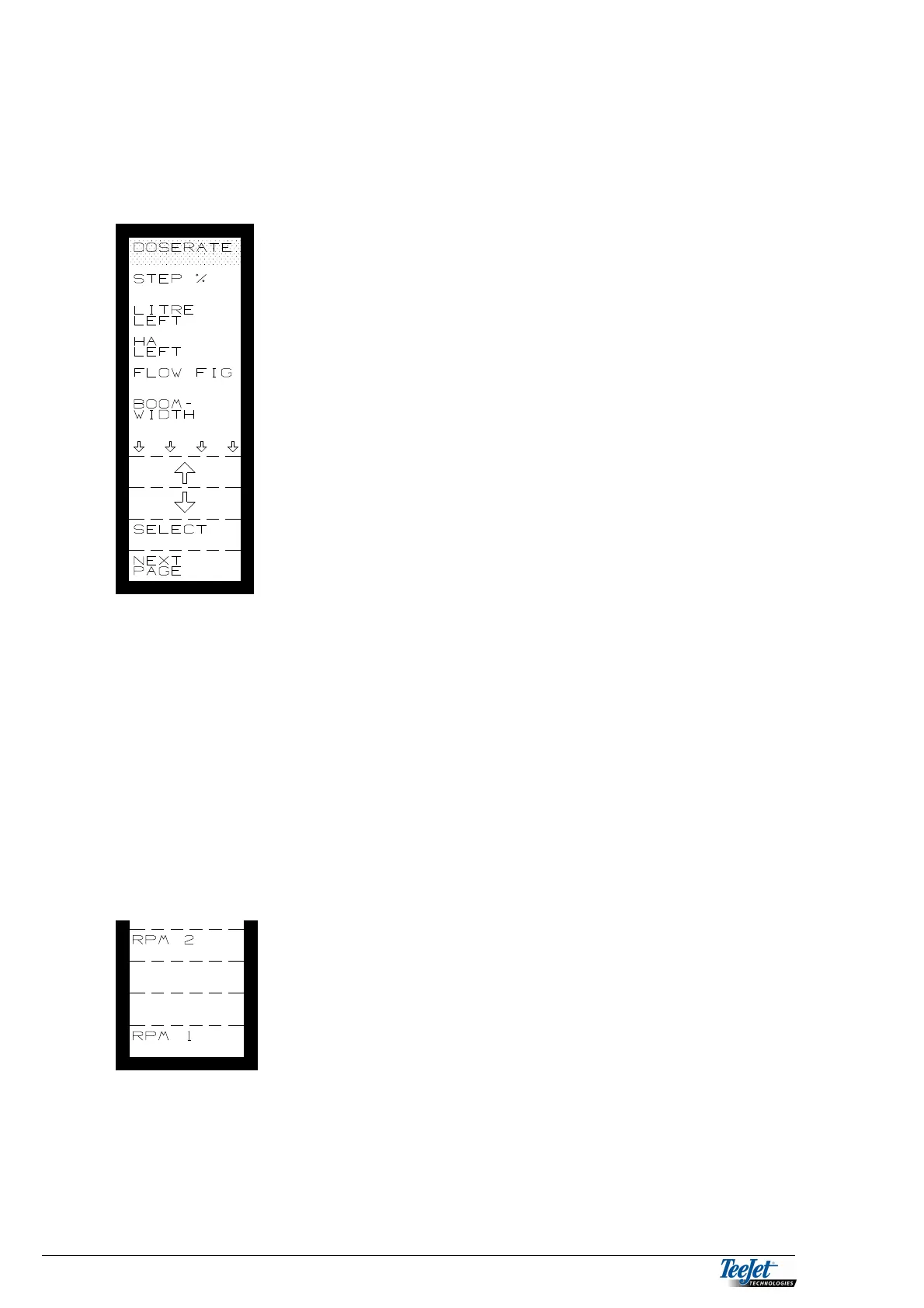

2. PULSE WEIGHING
Metering the amount spread using pulses from a spreader fitted with feed
roller.
KG: The amount spread in KG.
KG LEFT: The amount left in the spreader.
RPM 1: Shaft speed for axle no. 1.
KG: The amount spread metered from a pulse generator fitted to the
feed roller. Presupposes system calibration (amount per pulse).
KG LEFT: The amount left in the spreader. Presupposes encodement of the
amount filled into the spreader before spreading starts (encode).
RPM 1: Shaft speed for axle no.1.
3. 2 RPM SENSORS
If the spreader is not fitted with either weigh cells or pulse generators, then the
TeeJet 5000 can display the shaft speed for another axle instead of KG metering.
RPM 1: Shaft speed for axle no. 1.
RPM 2: Shaft speed for axle no. 2.
