TEEJET 5000 OPERATORS MANUAL SEED DRILL, LEMKEN
5.47
Example of method F left:
The seed drill is fitted with 2x2 magnetic valves on the right-hand side of the drill
and 2x2 magnetic valves fitted to the left-hand side of the drill.

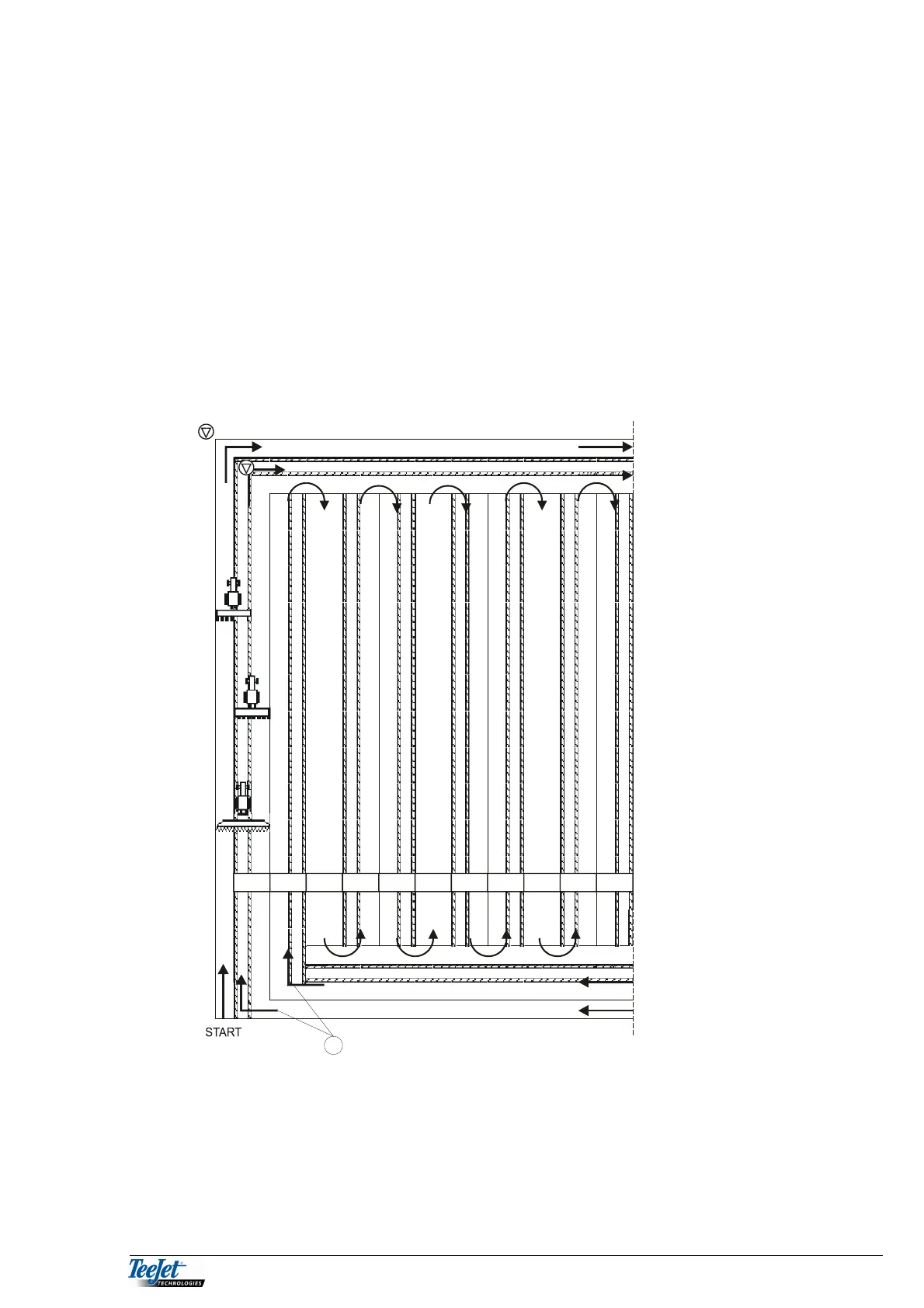

Drilling is started on the left-hand side of the field as shown on the diagram. One
half of the drill must be closed for the first bout. Thereafter the track number
should be set to 6-6 and tramlines are made on the right side of the drill. Tramlines
are made when the present track number is 1, 3, 4 & 6.
Note where tracks should be counted (A) and where tracks should not be
counted (all other corners) in the first 3 bouts around the whole field.
Track counting can be controlled by using either the "HOLD" key or by using the
"TRACK +/-" keys.
6-6 1-6 2-6 3-6 4-6 5-6 6-6 1-6 2-6 3-6 4-6
A
