TEEJET 5000 OPERATORS MANUAL SEED DRILL, LEMKEN
5.51

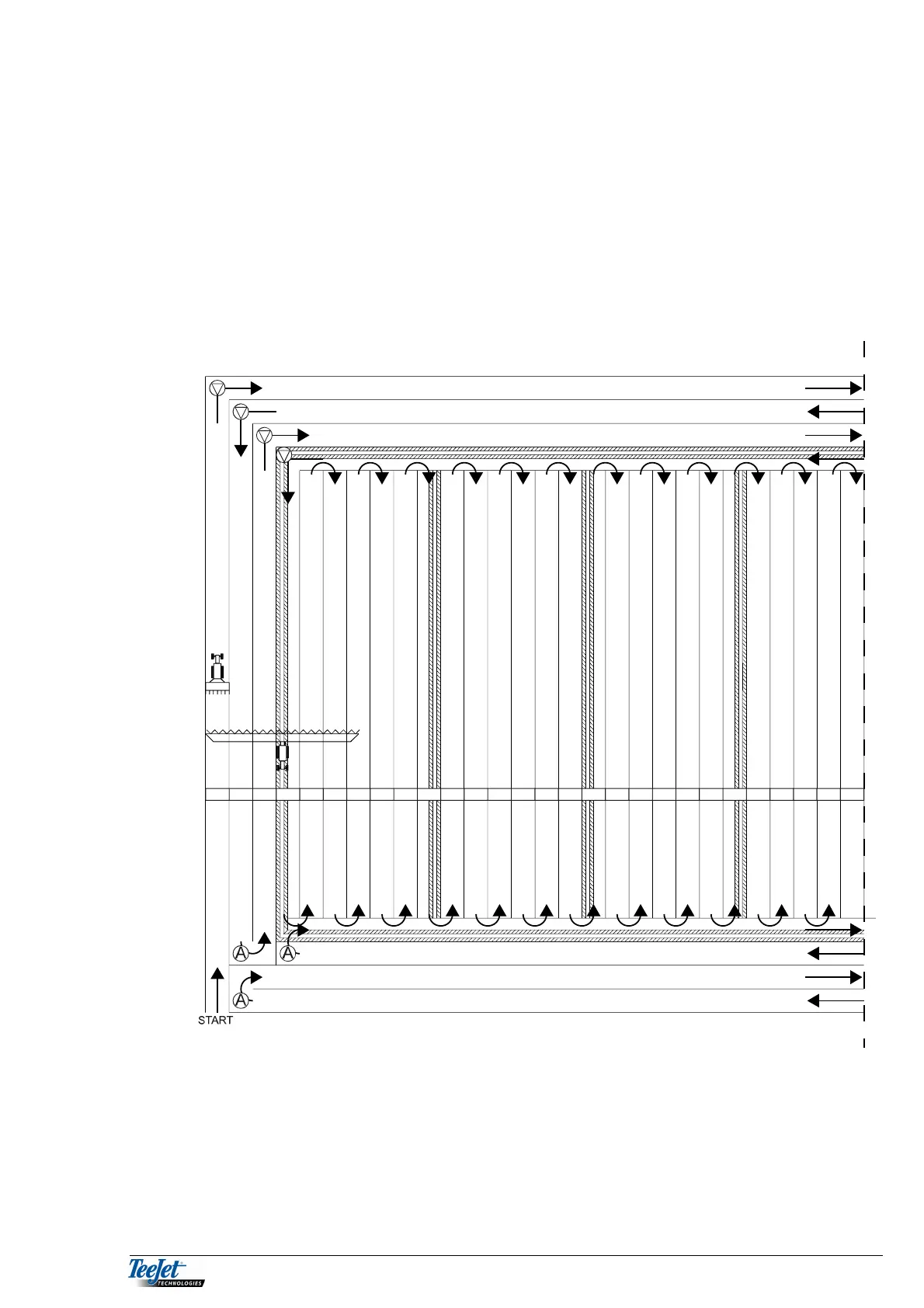

Example of method H Left:
The seed drill is fitted with 2x2 magnetic valves on both sides of the seed drill.
Drilling is started on the left-hand side of the field with the track number set to 1-
26 as shown on the diagram. After the first bout around the field change direction
to drive the other way around the filed, do this for the third and fourth bout also.
Tramlines are made when the present track number is 4, 10, 17 and 23.
Note where tracks should be counted (A) and where tracks should not be
counted (all other corners) in the first 4 bouts around the field.
Track counting can be controlled by using either the "HOLD" key or by using the
"TRACK +/-" keys.
1-26 2-26 3-26 4-26 5-26 6-26 7-26 8-26 9-26 10-26 11-26 12-26 26-2625-2624-2623-2622-2621-2620-2619-2618-2617-2616-2615-2614-26 1-26 2-2613-26
