TEEJET 5000 OPERATORS MANUAL SEED DRILL, SIMBA
5.63
SEED DRILL OPERATION

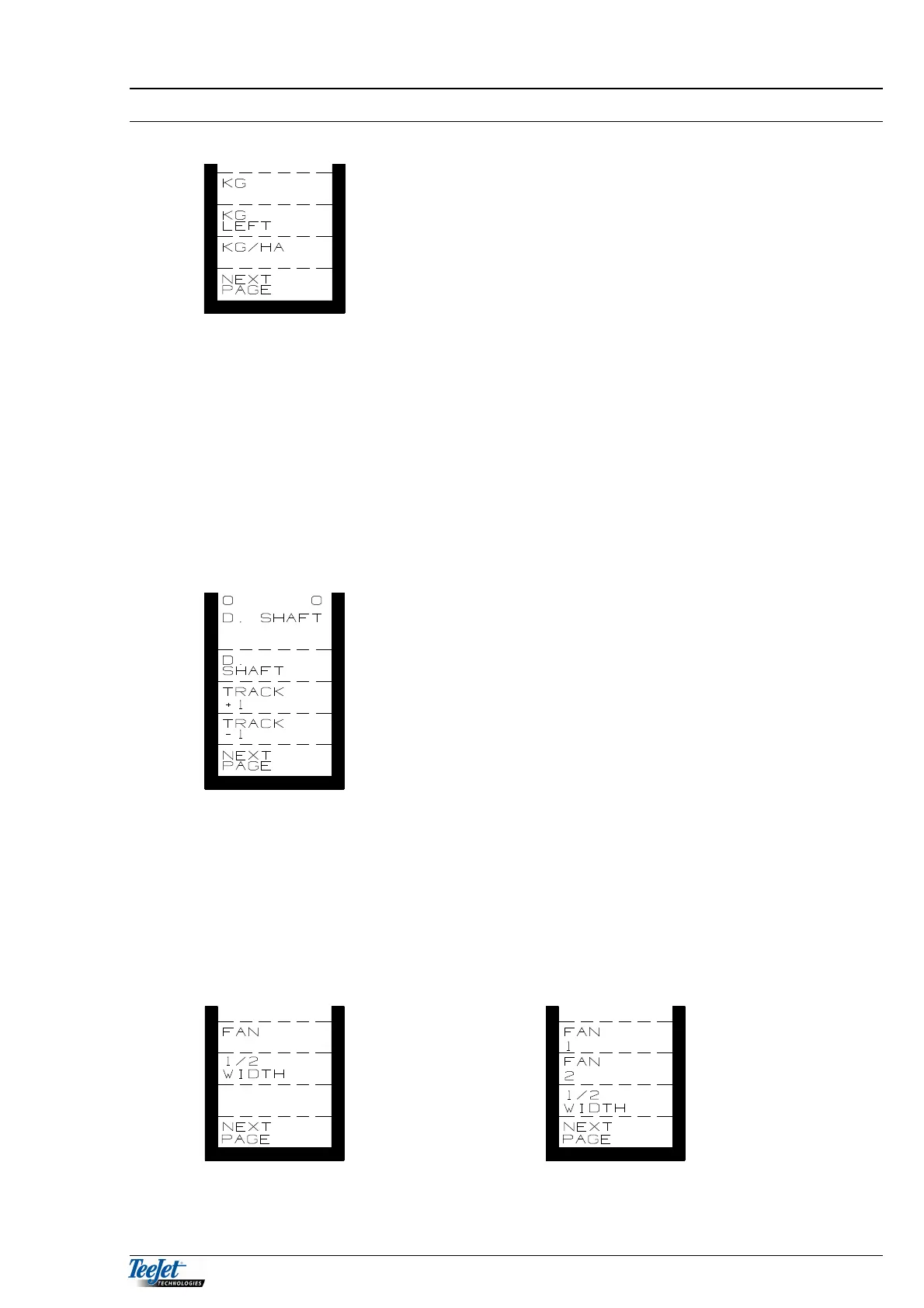

KG: The amount sown in KG.
KG LEFT: The amount in KG of seed left in the
hopper
KG/HA: Seed rate in KG/HA
KG: The amount sown in KG, measured by a sensor fitted on the drill
shaft. Calibrating the system is necessary to ensure correct
operation and this is done under “ENCODE”.
KG LEFT: The amount in KG of seed left in the hopper (the amount filled in
must be encoded before work commences).
KG/HA: Seed rate in KG/HA.
Pressing the “NEXT PAGE” key displays the next available functions.
D. SHAFT: Drill shaft speed.
TRACK+1: Moves one step forward in the tramline
rhythm.
TRACK-1: Moves one step backwards in the
tramline rhythm.
D. SHAFT: Revolutions per minute for both drill shafts.
TRACK+1: Moves one step forward in the tramline rhythm.
TRACK-1: Moves one step backwards in the tramline rhythm.
Pressing the “NEXT PAGE” key displays the next available functions.
