TEEJET 5000 OPERATORS MANUAL SLURRY SPREADER, OTHER TYPE
7.11
SYSTEM B PLUG
There are 2 system plugs on the back of the TeeJet 5000.
The System A plug is compatible with older TeeJet 5000 versions.
The System B plug is for new connections.
ACTIVE 0 VOLT: The individual sections are opened with 0V.
ACTIVE 12 VOLT: The individual sections are opened with 12V.
WORK HOUR ON/OFF
Select whether the timer function is started/stopped manually via the function key
in the operation menu or by the selected implement sensor.

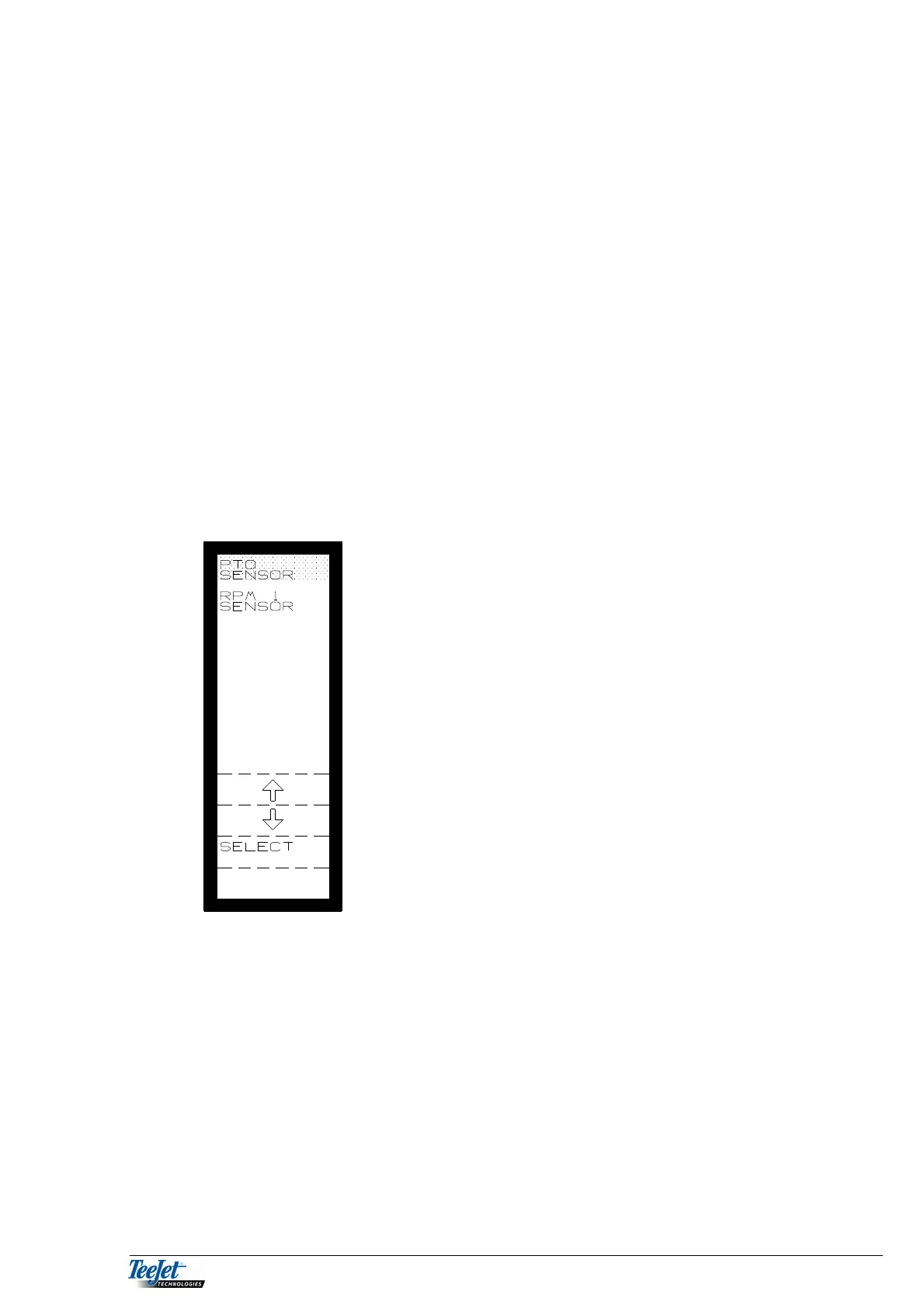

REVS. SENSOR
Encode the number of pulses per revolution given for the
individual sensors.
