Boeing 767 - Page 105

AFT ACOUSTICAL PANEL
SEE
A
INLET COWL
FORWARD FAN CASE
FORWARD ACOUSTICAL
PANEL
ROTOR
BLADES
FORWARD FAN CASE
(POSSIBLE ICE IMPACT
DAMAGE)
ACOUSTICAL PANEL
OGV
AFT FAN CASE
SPLITLINE
A
FWD
STAGE ONE FAN
209705 S00061422755_V1

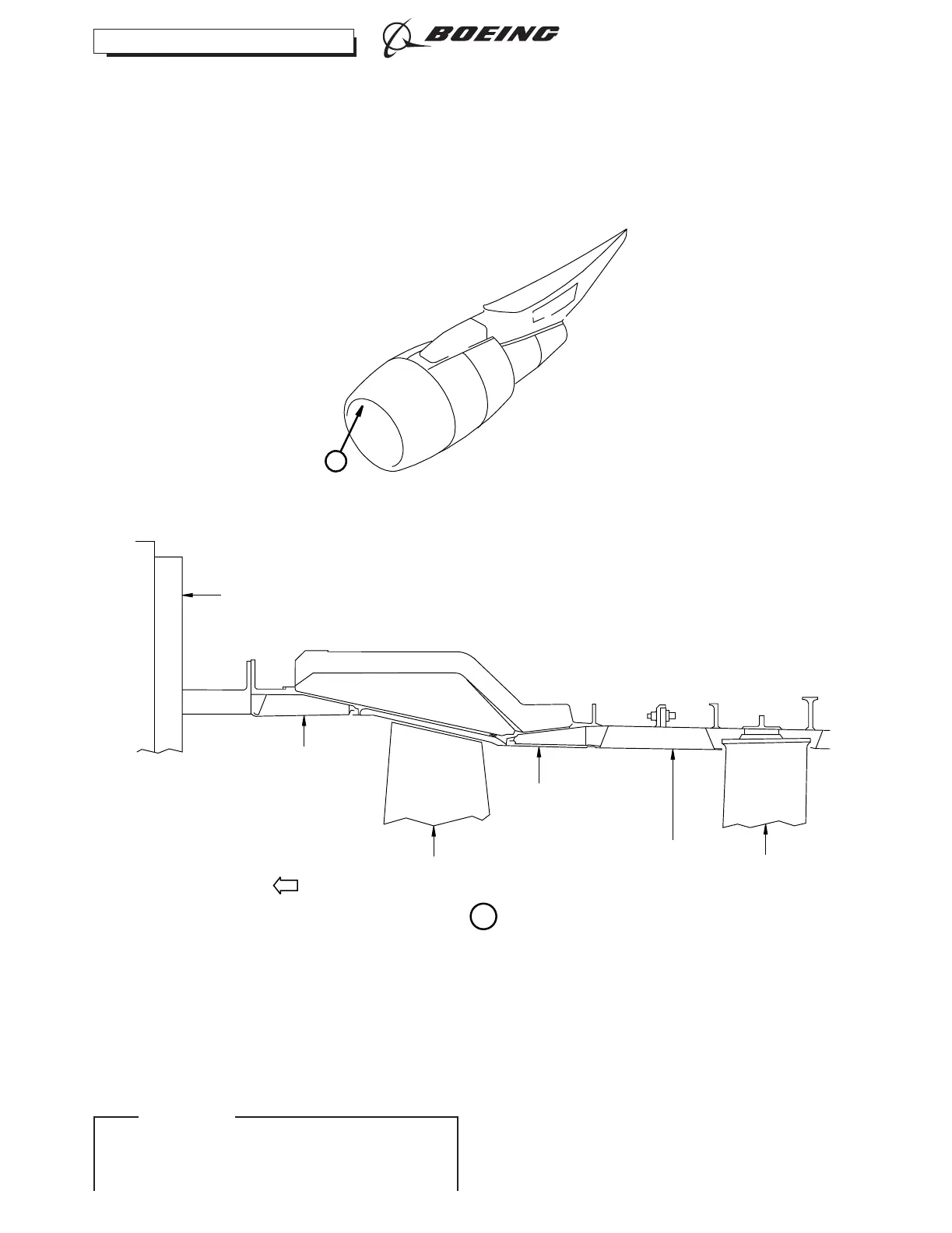

Fan Case Acoustical Panels Inspection
Figure 622/72-00-00-990-833-G00
767
AIRCRAFT MAINTENANCE MANUAL
CF6-80A SERIES ENGINES
72-00-00
NoC
Page 672
D633T1B7 Aug 22/2017
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ABX 001-007, 011, 012, 016-019, 021, 022, 025, 101,
109, 114, 115, 314-999
