Boeing 767 - Page 107

[1] SUPPORT - HP TURBINE STATOR
[2] ANGER SUPPORT
[3] SHROUD SUPPORT - STAGE 1
[4] SHROUD - STAGE 1
[5] RETAINER, SHROUD STAGE 1
(RETAINER CLIP)
[6] VANE - STAGE 2
[7] SEAL - INTERSTAGE
[8] NUT ASSEMBLY - INTERSTAGE SEAL
[9] BOLT - INTERSTAGE SEAL
[10] TUBE
- COOLING AIR
[11] RING - IMPINGEMENT
[12] BOLT - STAGE 2 VANE
[13]
NUT - STAGE 2 VANE
[14]
SHROUD - STAGE 2
[15] SUPPORT - SHROUD STAGE 2 HPTS
[16]
SUPPORT - SHROUD STAGE 2
(RETAINER CLIP)
LEGEND:
[7]
[9]
[8]
[6]
[5]
[4]
[3]
[2]
[10]
[14]
[16]
[15]
[13]
[12]
[11]
[1]
CF8-3079-01-A
______
201334 S00061422757_V2

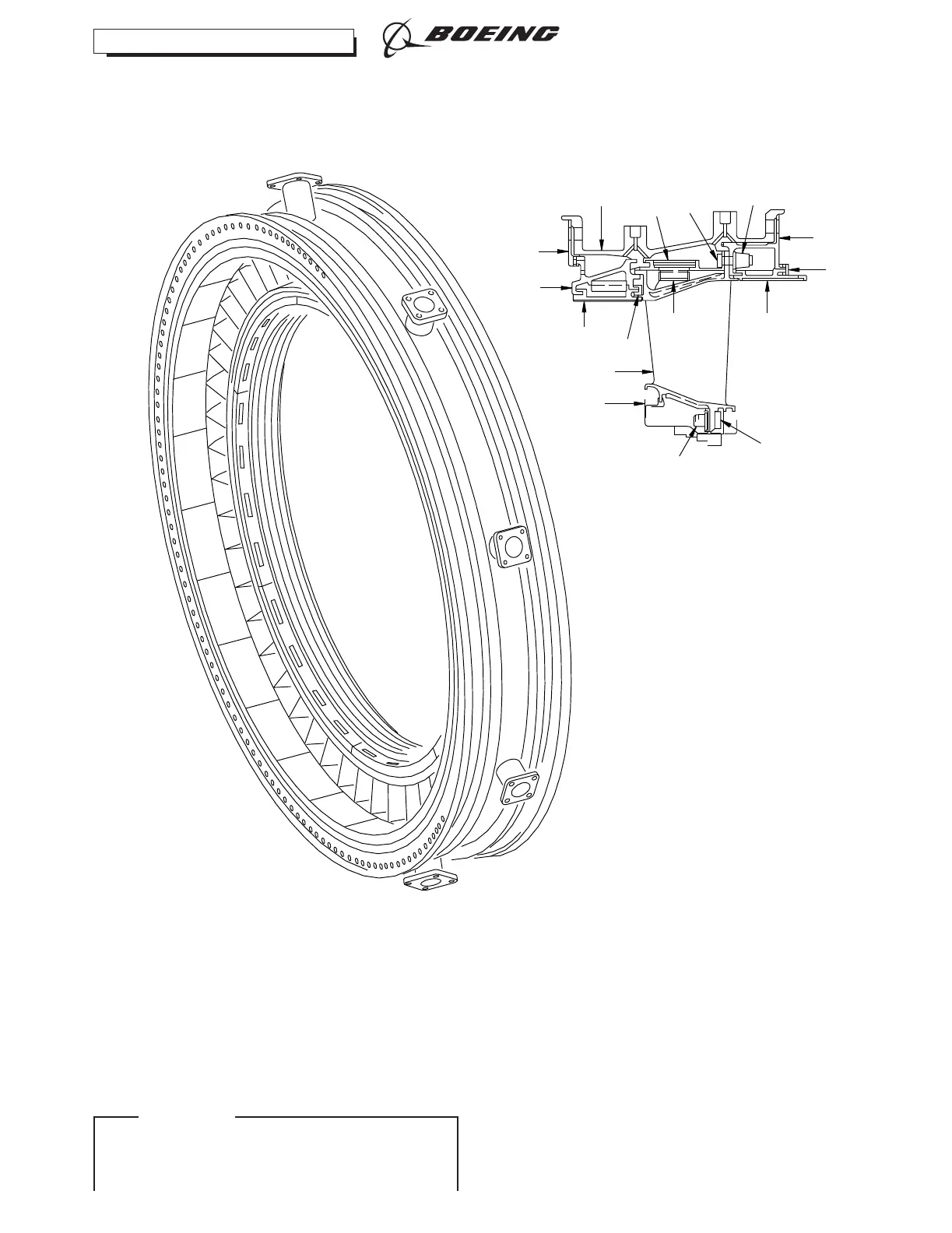

Stage 2 HPT Nozzle Assembly Inspection
Figure 624/72-00-00-990-835-G00
767
AIRCRAFT MAINTENANCE MANUAL
CF6-80A SERIES ENGINES
72-00-00
NoC
Page 674
D633T1B7 Aug 22/2017
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ABX 001-007, 011, 012, 016-019, 021, 022, 025, 101,
109, 114, 115, 314-999
