1148308-00-A
B
BOLT
STOP
FAIRING
SHROUD
STAGE
1
SHROUD
STAGE
1
SHROUD
STAGE
1
STATOR
CASE
STAGE
1
FAN
STATOR
VANE
STAGE
1
FAN
BOLT
NUT
(REF)
SEGMENT
FAIRING
SEE
B
A
A
SEE
H12289 S00061422854_V1

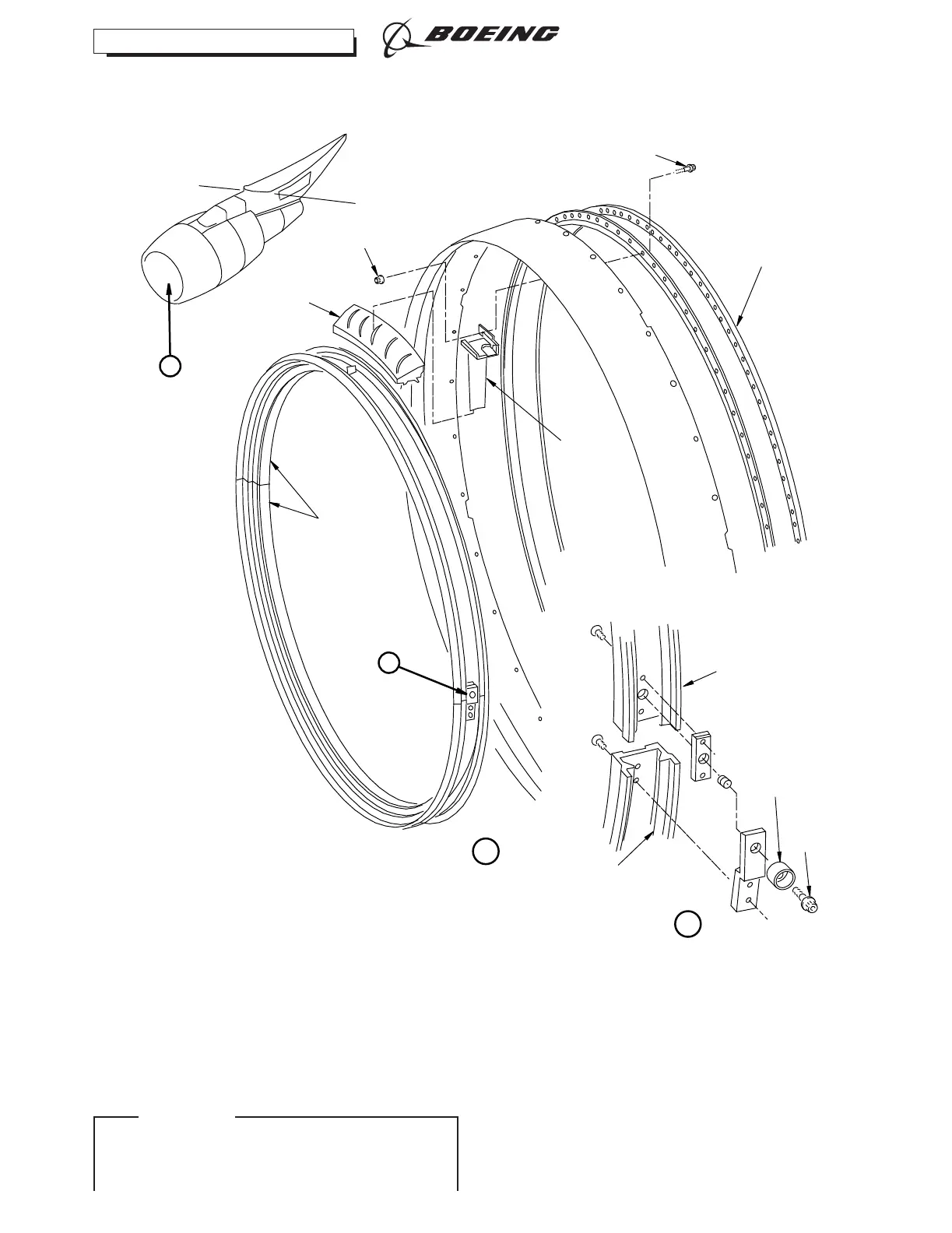

Fan Stator Assembly
Figure 403/72-31-00-990-807-G00 (Sheet 1 of 2)
767
AIRCRAFT MAINTENANCE MANUAL
CF6-80A SERIES ENGINES
72-31-00
NoC
Page 408
D633T1B7 Dec 22/2016
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ABX 001-007, 011, 012, 016-019, 021, 022, 025, 101,
109, 114, 115, 314-999
