Boeing 767 - Page 173

INNER BEARING
RING (REF)
SENSOR (REF)
FAN SPEED
BOLT
C
(REF)
DISK
PREFORMED
NUT
FORWARD
FAN SHAFT
PACKING
FORWARD FAN SHAFT ASSEMBLY
STAGE 1
(REF)
OIL SEAL
NUT-ROUND
OIL SEAL
(REF)
NO. 1 BEARING
(REF)
C
SEE
1148307-00-A
H11859 S00061422853_V1

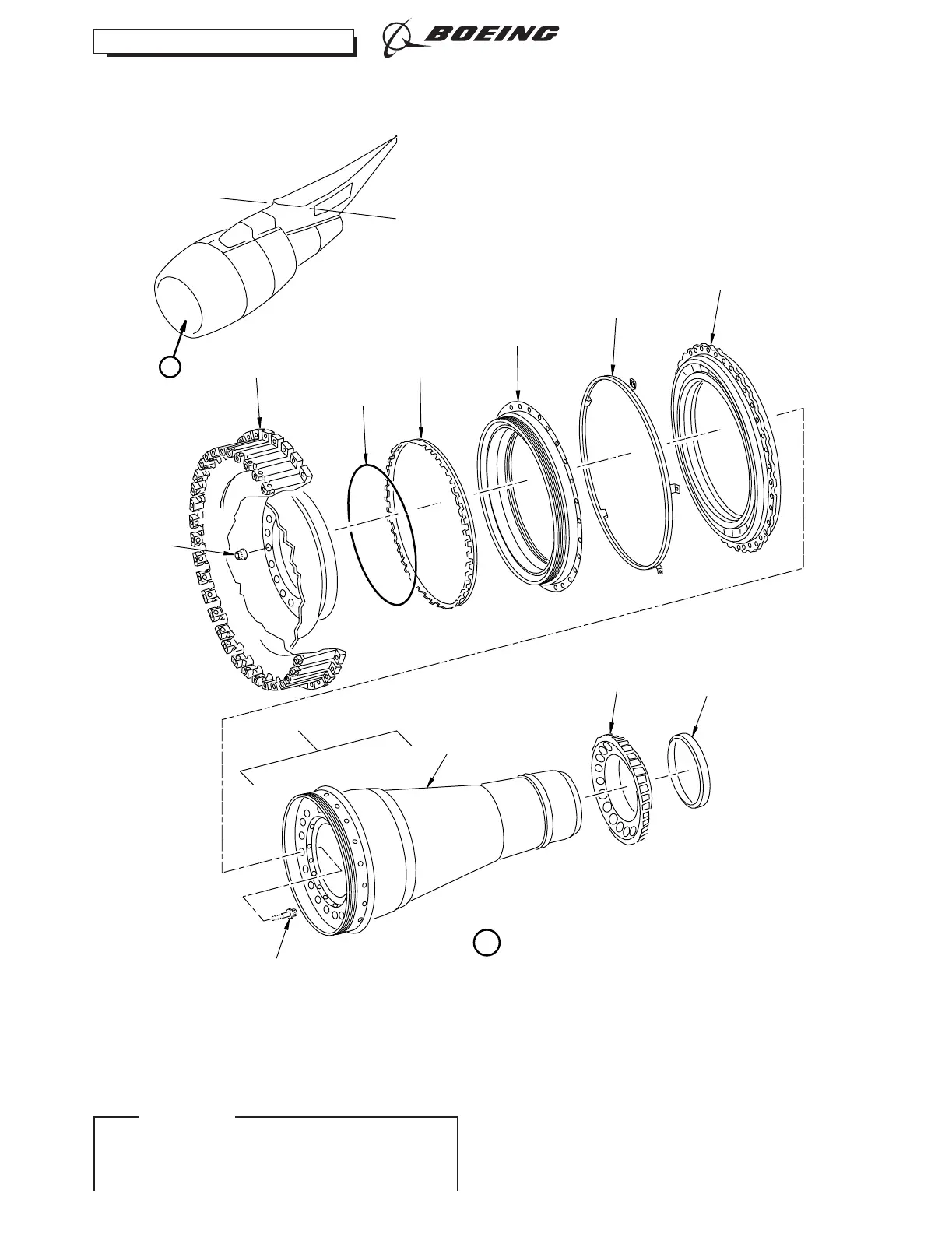

Fan Rotor Assembly
Figure 402/72-31-00-990-806-G00 (Sheet 2 of 2)
767
AIRCRAFT MAINTENANCE MANUAL
CF6-80A SERIES ENGINES
72-31-00
NoC
Page 407
D633T1B7 Dec 22/2016
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ABX 001-007, 011, 012, 016-019, 021, 022, 025, 101,
109, 114, 115, 314-999
