Boeing 767 - Page 223

FAN ROTOR
BLADE
BLADE
INK
MARKS
UNDER
BLADE
TIP
SHROUD
SCRIBE
MARKS
FAN STATOR
ACOUSTICAL LINER
E-13
E-12
3"
GAGE
E-13
E-12
AFT
1st-STAGE
26026 S00061422894_V1

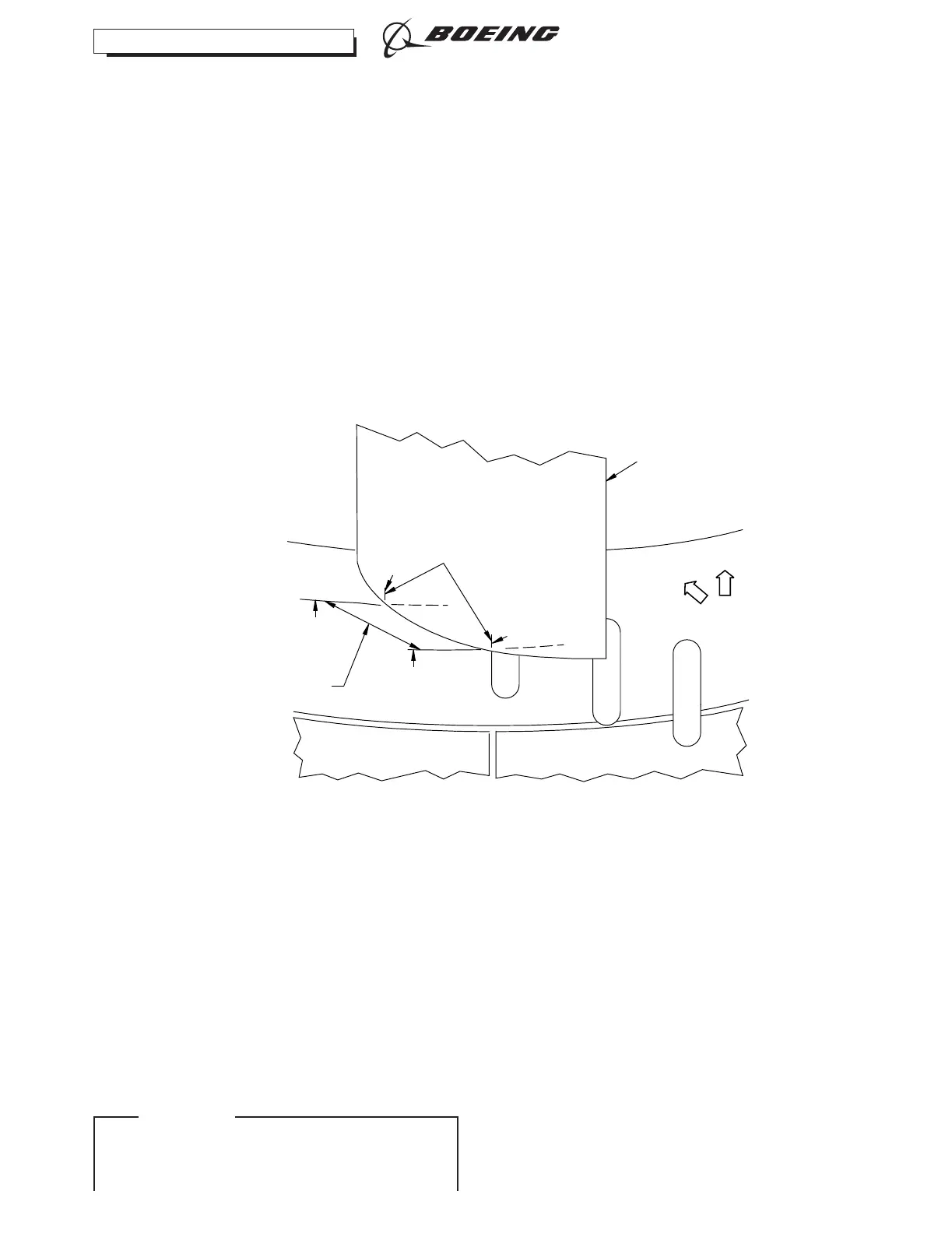

1st-Stage Fan Rotor Blade Tip Clearance
Figure 402/72-31-02-990-802-G00
767
AIRCRAFT MAINTENANCE MANUAL
CF6-80A SERIES ENGINES
72-31-02
NoC
Page 410
D633T1B7 Dec 22/2016
