Boeing 767 - Page 326

FLANGE BOLT
FIG.
602 FOR
INSPECTION
HORIZONTAL
REFER TO
HPC CASE
A
B
SEE
SEE
A
SEE FIG. 603 FOR
INSPECTION
LEVER ARM
VARIABLE VANE
26036 S00061423032_V1

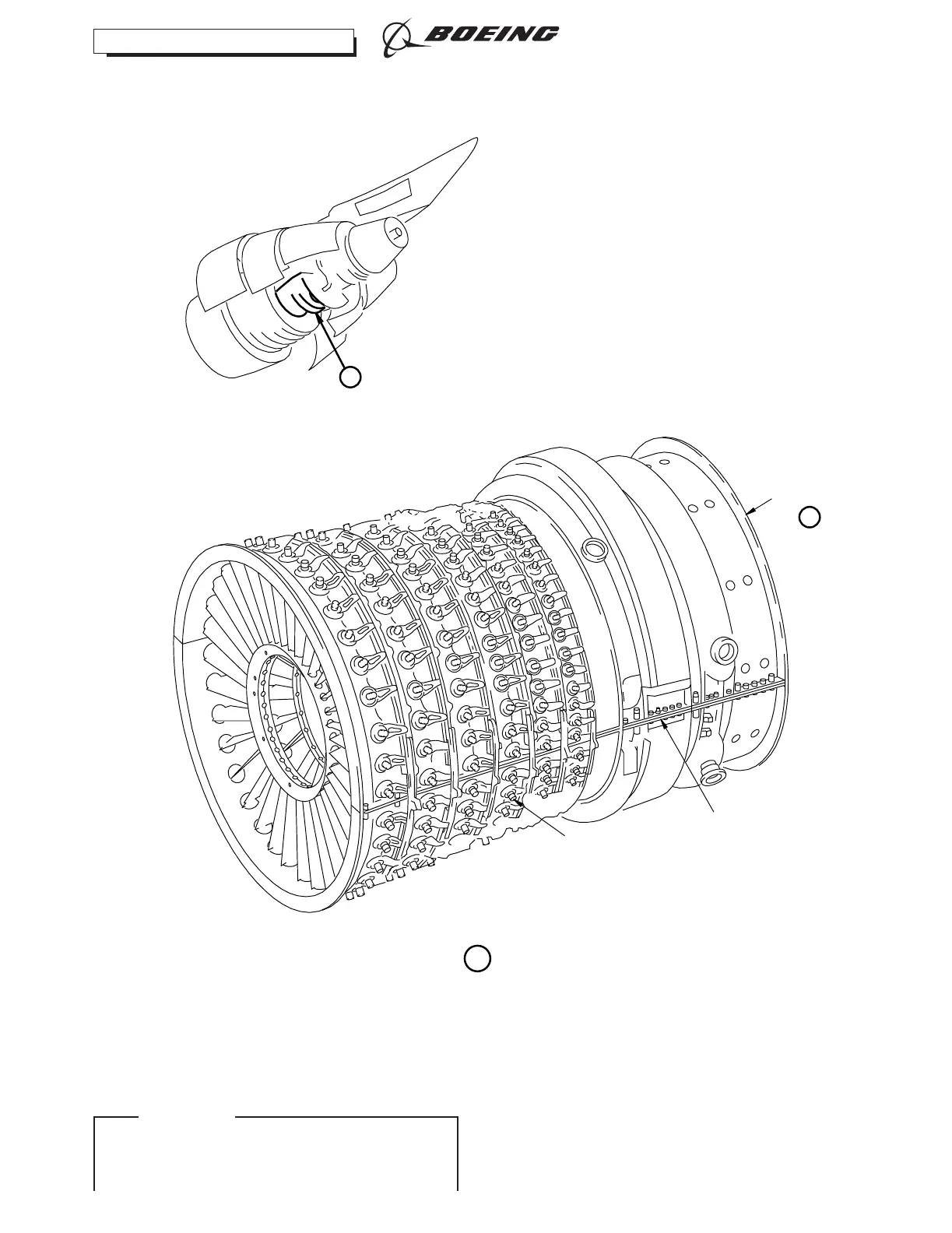

High Pressure Compressor Inspection
Figure 601/72-35-00-990-801-G00 (Sheet 1 of 2)
767
AIRCRAFT MAINTENANCE MANUAL
CF6-80A SERIES ENGINES
72-35-00
NoC
Page 607
D633T1B7 Dec 22/2016
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ABX 001-007, 011, 012, 016-019, 021, 022, 025, 101,
109, 114, 115, 314-999
