HPC CASE
(6 LOCATIONS)
B
D
C
SEE
D
SEE
C
AFT FLANGE
A-A
10TH-STAGE MANIFOLD
7TH-STAGE MANIFOLD
8TH-STAGE MANIFOLD
AA
CRACK
RIB
FILLET
CRACKS
CRACK
CASING SKIN
26039 S00061423033_V1

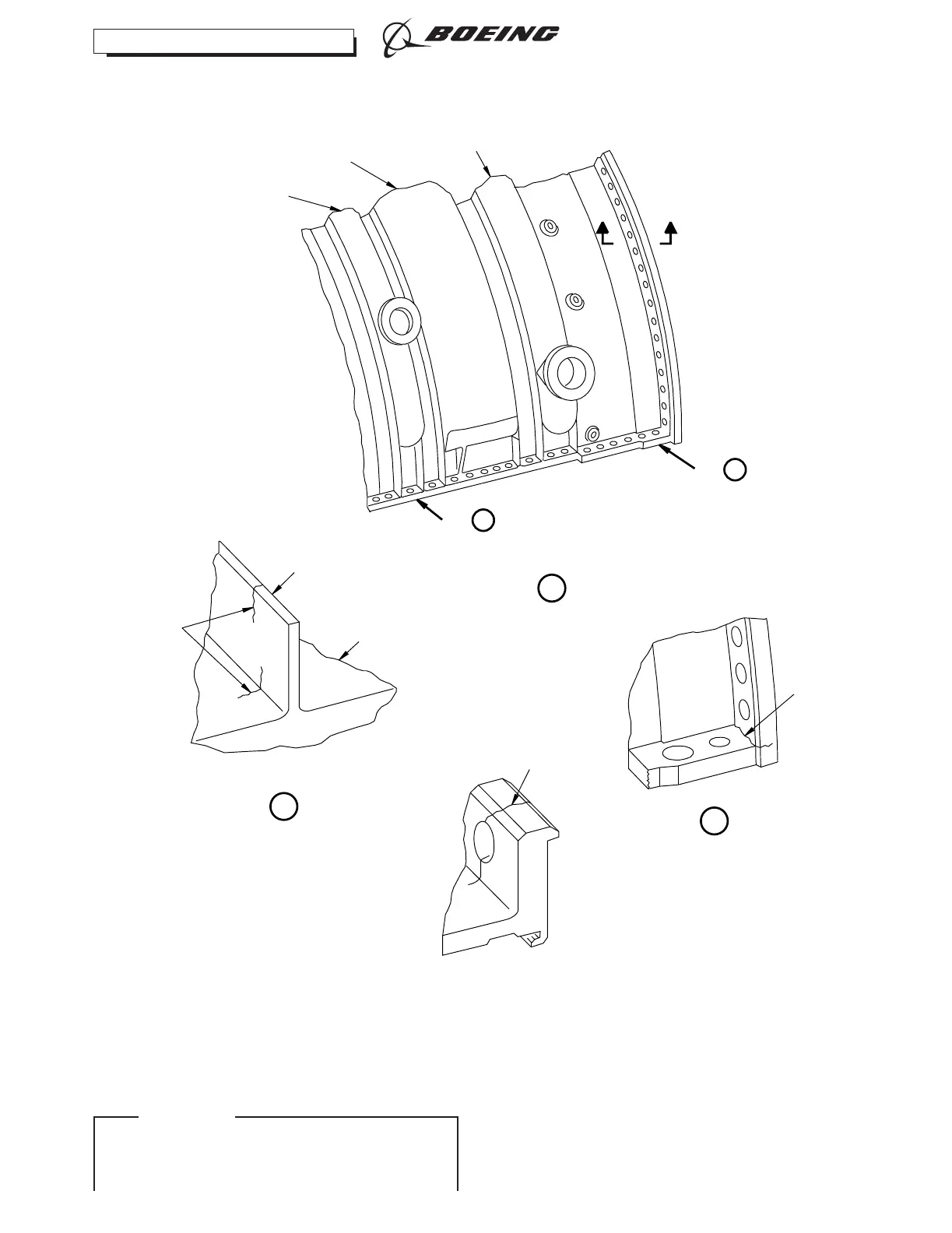

High Pressure Compressor Inspection
Figure 601/72-35-00-990-801-G00 (Sheet 2 of 2)
767
AIRCRAFT MAINTENANCE MANUAL
CF6-80A SERIES ENGINES
72-35-00
NoC
Page 608
D633T1B7 Dec 22/2016
