LEGEND:
[1] SPACER
[2] NUT
[3]
ACTUATOR
[4] ACTUATION LEVER
GUIDE
[5] BRACKET
[6] BOLT, NUT
[7]
CLEVIS
[7A] PUSHROD
[7B] ROD END BEARING
[8] CONNECTING LINKS
[9] ACTUATION LEVER MOUNT
[10] ACTUATION LEVER
[11] BOLTS
[12] LOCKING BRACKET
[13] FEEDBACK PUSH ROD
[14] FEEDBACK ROD AND BEARING
[15] RUBBER BOOT SEAL
[3]
[4]
[5]
[6]
[7]
[7A]
[7B]
[8]
[10]
[11]
[9]
[1]
[2]
A-A
[1]
[11]
0.001 INCH
(0.03 mm)
MINIMUM
[5]
[4]
[3]
[6]
[10]
[7B]
[7A]
[8]
[11]
[1]
[2]
A
A
[14]
[13]
[12]
[15]
[15]
THE RUBBER BOOT SEAL IS ON
BOTH SIDES OF THE STAGE 5 IGV
______
26106 S00061423038_V2
Actuation Lever Guide and Guide Bracket Inspection

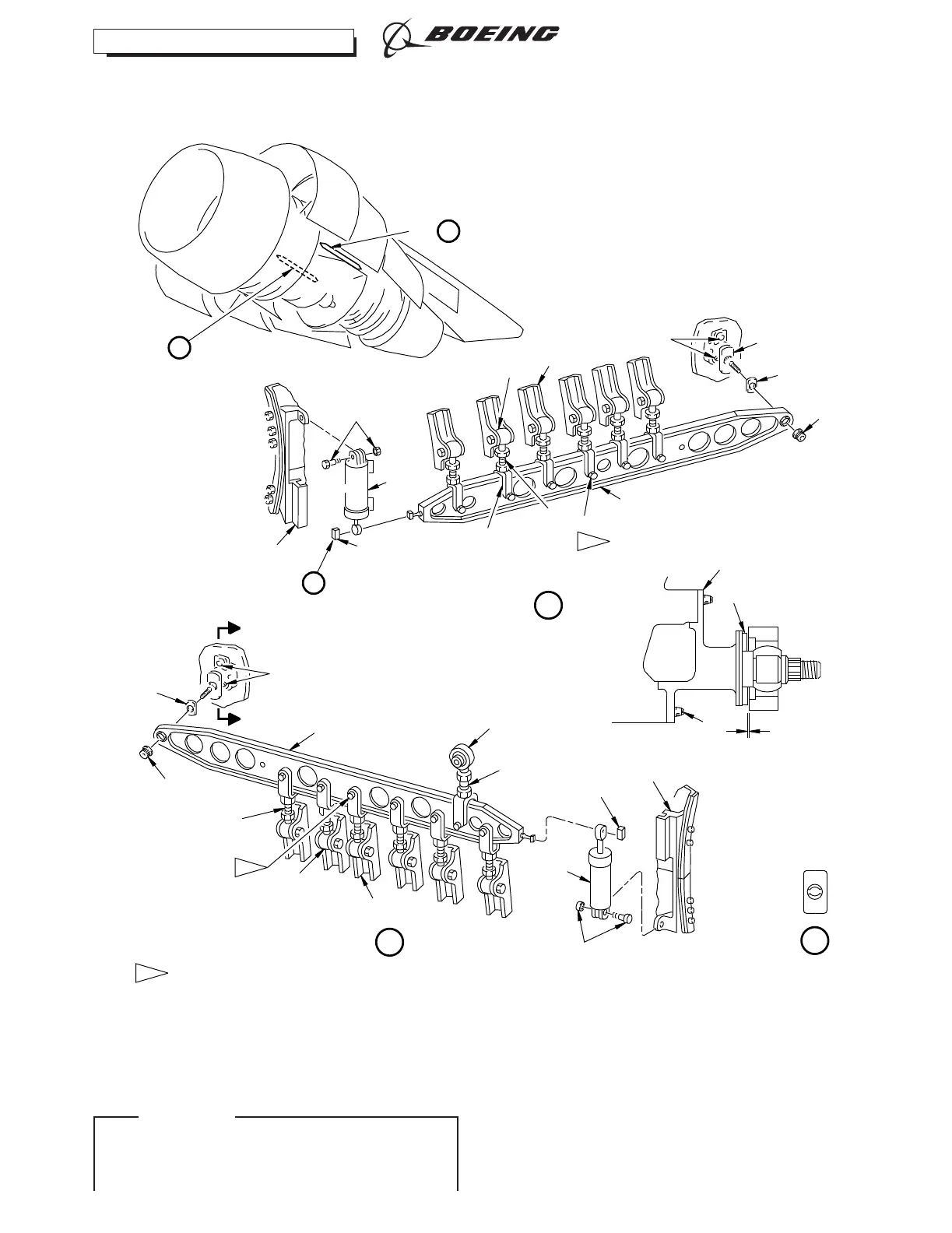

Figure 605/72-35-00-990-806-G00
