Procedure
Step 1
Insert the DC power module in Slot A (see the figure below).

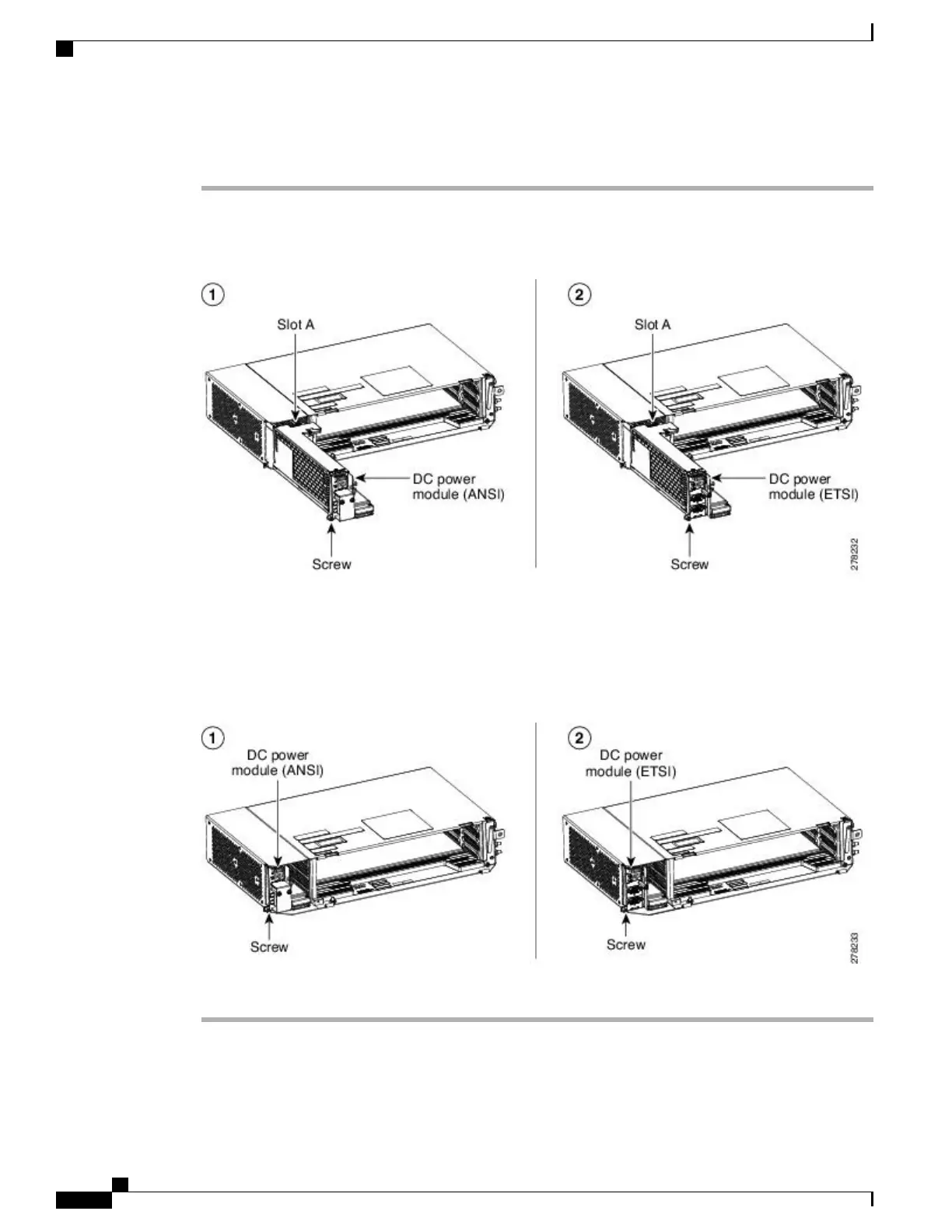

Figure 77: Installing the DC Power Module
Step 2
Plug the DC power module completely into the chassis.
Step 3
Tighten the screw to a torque value of 4 in-lb (0.45 N-m) to lock the power module in the chassis (see the
figure below).
Figure 78: DC Power Modules Installed in the NCS 2002 Shelf
Step 4
Return to your originating procedure (NTP).
